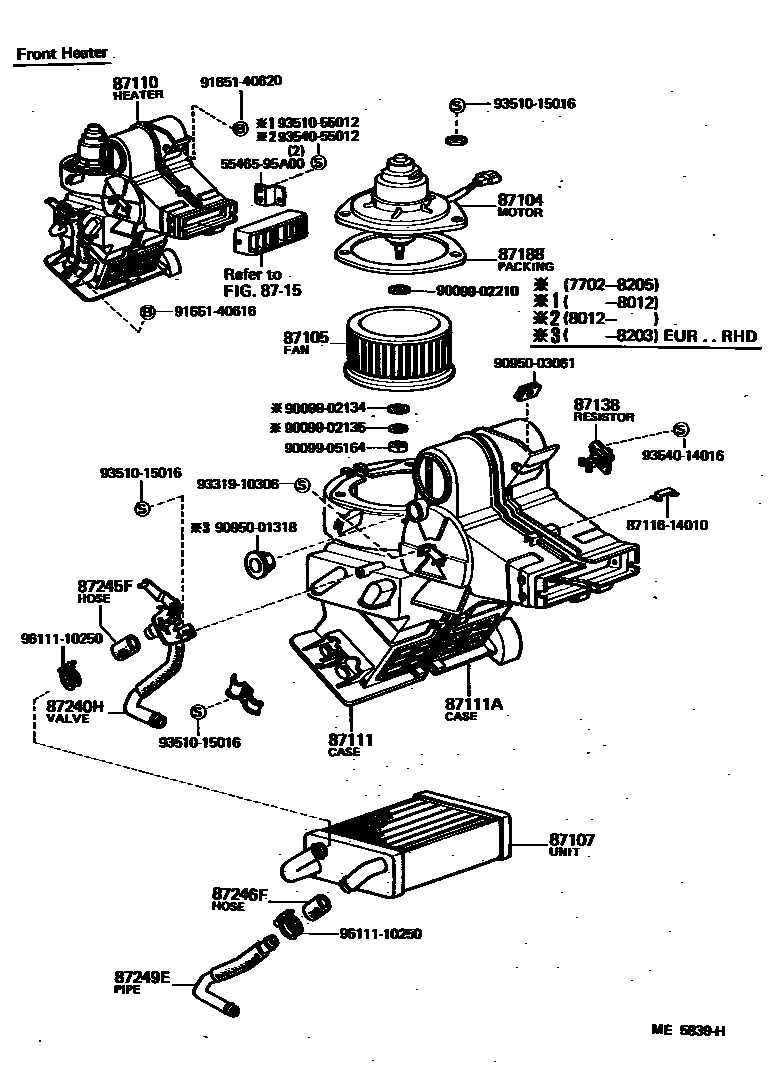

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1 0003 1 0004 1

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-95A00iLH11,20,30,RH11,20,22,3#,42..ARL,EUR,GEN,SA197702-198211

STD TYPE

main87104-95A00iLH20,30,RH11,20,22,3#..GEN198111-198211

W/BOOST VENTILATOR

main87104-95A01iLH11,20,30,RH11,20,25,3#..EUR197702-198211

COLD SPEC

87105FAN SUB-ASSY, HEATER BLOWER

main87105-12040iLH20,30,RH11,20,22,3#..GEN198111-198211

W/BOOST VENTILATOR

main87105-20054iLH11,20,30,RH11,20,22,3#,42..ARL,EUR,GEN,SA197702-198211

sub87105-22020

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-95A00iLH11,20,30,RH11,20,22,3#,42..ARL,EUR,GEN,SA197702-198211

STD TYPE

sub87107-95A01

main87107-95A01iLH11,20,30,RH11,20,25,3#..EUR197702-198211

COLD SPEC

87110HEATER ASSY

main87110-95A00iLH11,20,30,RH11,20,22,3#,42..ARL,EUR,GEN,SA197702-198001

sub87110-95A01

main87110-95A01iLH11,20,30,RH11,20,25,3#..EUR197702-198001

COLD SPEC

main87110-95A07iLH11,20,30,RH11,20,25,3#..LHD..EUR198001-198203

COLD SPEC

sub87110-95A23

sub90950-01318

main87110-95A08iLH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA198001-198211

STD HEATER

sub87110-95A09

main87110-95A09iLH11,20,30,RH11,20,3#..RHD..EUR198001-198211

COLD SPEC

main87110-95A23iLH11,20,30,RH11,20,25,3#..LHD..EUR198203-198211

COLD SPEC,W/SIDE DEFROSTER

87111CASE, HEATER

main87111-95A00iLH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA197702-198211

87111ACASE, HEATER

main87111-95A01iLH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA197702-198211

87138RESISTOR, HEATER BLOWER

main87138-95A00iLH11,20,30,RH11,20,22,3#,42..ARL,EUR,GEN,SA197702-198211

STD TYPE

main87138-95A01iLH11,20,30,RH11,20,25,3#..EUR197702-198211

COLD SPEC

8715

87188PACKING, HEATER BLOWER MOTOR

main87128-22010iLH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA197702-198211

87240HVALVE ASSY, WATER UNIT

main87240-95A02iLH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA197702-197912

main87240-95A04iLH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA197912-198211

87245FHOSE, HEATER WATER, INLET F

main99552-30035iLH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA197702-198211

*H,L=35

sub99552-30075

87246FHOSE, HEATER WATER, OUTLET F

main99552-30035iLH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA197702-198211

*H,L=35

sub99552-30075

87249EPIPE, HEATER WATER OUTLET, E (FOR HEATER UNIT)

main87157-95A00iLH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA197702-198211

5546595A00COVER, INSTRUMENT HOLE

main55465-95A00

8711614010SPRING, HEATER CASE FASTENING

main87116-14010

9009902134

main90099-02134

9009902135

main90099-02135

9009902210

main90099-02210

9009905164

main90099-05164

9095001318

main90950-01318

9095003061

main90950-03061

9165140616

main91651-40616

9165140620

main91651-40620

9331910306

main93319-10306

9351015016

main93510-15016

9351055012

main93510-55012

9354014016

main93540-14016

9354055012

main93540-55012

9611110250

main96111-10250

29 parts on this diagram · 4 diagrams in section
