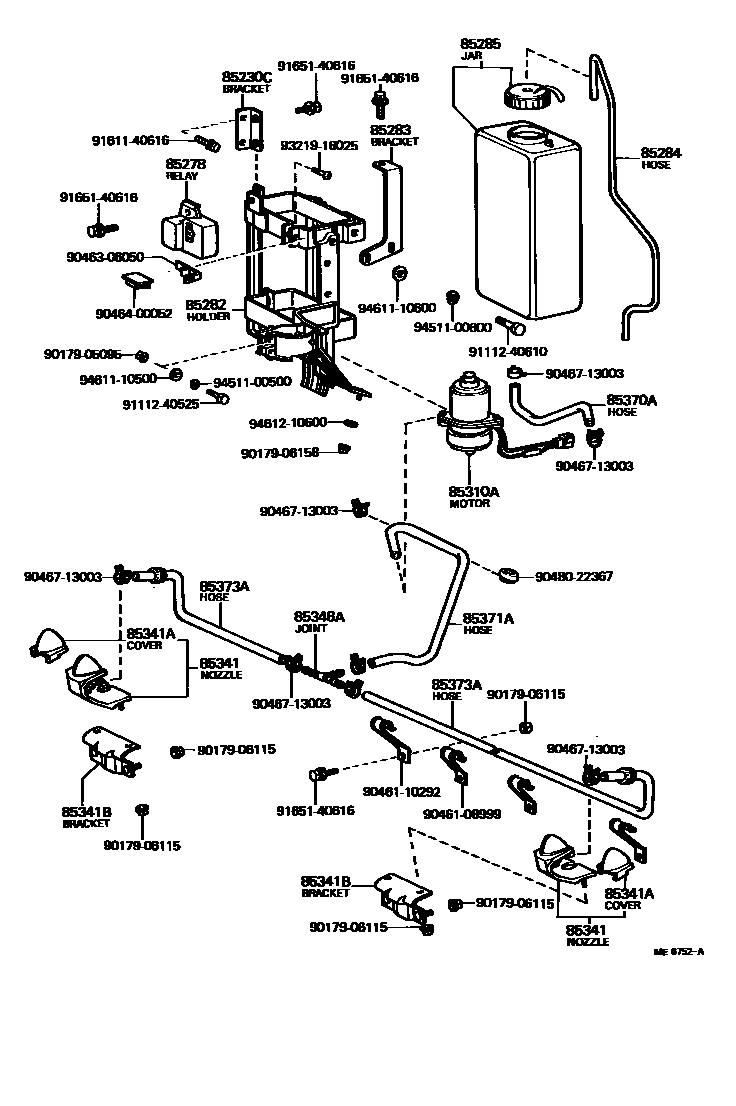

HEADLAMP CLEANER

0001 1 0002 1

85230CBRACKET ASSY, HEADLAMP CLEANER

main85361-95A03iRH25,32..LHD..EUR197707-198211

85278RELAY ASSY, HEADLAMP CLEANER CONTROL

main85276-14010iRH25,32..LHD..EUR197901-198211

main85276-22010iRH32..V5D..EUR197707-197901

85282HOLDER ASSY, HEADLAMP CLEANER WASHER JAR

main85361-95A04iRH32..V5D..EUR197707-197901

main85361-95A06iRH32..V5D..EUR197901-198211

85283BRACKET, HEADLAMP CLEANER WASHER

main85361-95A05iRH25,32..LHD..EUR197707-198102

main85361-95A09iRH32..V5D..EUR198102-198211

85284HOSE ASSY, HEADLAMP CLEANER WASHER

main90446-07002iRH32..V5D..EUR197707-198211

sub90446-07004

85285JAR, HEADLAMP CLEANER WASHER

main85330-12060iRH25,32..LHD..EUR197707-198211

85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER

main85310-12040iRH32..V5D..EUR197707-197901

main85310-16010iRH25,32..LHD..EUR197901-198211

85341NOZZLE, HEADLAMP CLEANER WASHER

main85035-22041iRH32..V5D..EUR197707-197901

main85035-95A03iRH25,32..LHD..EUR197901-198012

main85035-95A06iRH32..V5D..EUR198012-198211

85341ACOVER,HEADLAMP CLEANER WASHER NOZZLE

main85033-22020iRH32..V5D..EUR197702-197901

85341BBRACKET, HEADLAMP CLEANER NOZZLE

main85345-95A00iRH32..V5D..EUR197707-197901

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

main85031-12010iRH32..V5D..EUR197901-198211

NO.2

main85352-12010iRH32..V5D..EUR197707-197901

main85352-20010iRH32..V5D..EUR197901-198211

NO.1

85370AHOSE ASSY, HEADLAMP CLEANER WASHER, NO.1

main85343-95A00iRH32..V5D..EUR197707-197901

main85343-95A04iRH25,32..LHD..EUR197901-198211

85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)

main85343-95A01iLH20,30,RH20,30..LHD..03S..EUR197707-198211

main85343-95A08iRH25197912-198211

85373AHOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)

main85343-95A02iRH32..V5D..EUR197707-197901

RH

main85343-95A03iRH32..V5D..EUR197707-197901

LH

main85343-95A06iLH20,30,RH20,30..LHD..03S..EUR197901-198211

L=90,RH

sub85375-20190

main85343-95A07iLH20,30,RH20,30..LHD..03S..EUR197901-198211

L=1320(*H,L=1040),LH

sub90445-14072

main85343-95A09iRH25197912-198211

RH

main85343-95A10iRH25;LH11..LHD..T1..EUR197912-198211

LH

sub85375-14400

9017905095

main90179-05095

9017906115

main90179-06115

9017906158

main90179-06158

9046108999

main90461-08999

9046110292

main90461-10292

9046306050

main90463-06050

9046400052

main90464-00052

9046713003

main90467-13003

9048022367

main90480-22367

9111240525

main91112-40525

9111240610

main91112-40610

9161140616

main91611-40616

9165140616

main91651-40616

9321916025

main93219-16025

9451100500

main94511-00500

9451100600

main94511-00600

9461110500

main94611-10500

9461110600

main94611-10600

9461210600

main94612-10600

33 parts on this diagram · 2 diagrams in section
