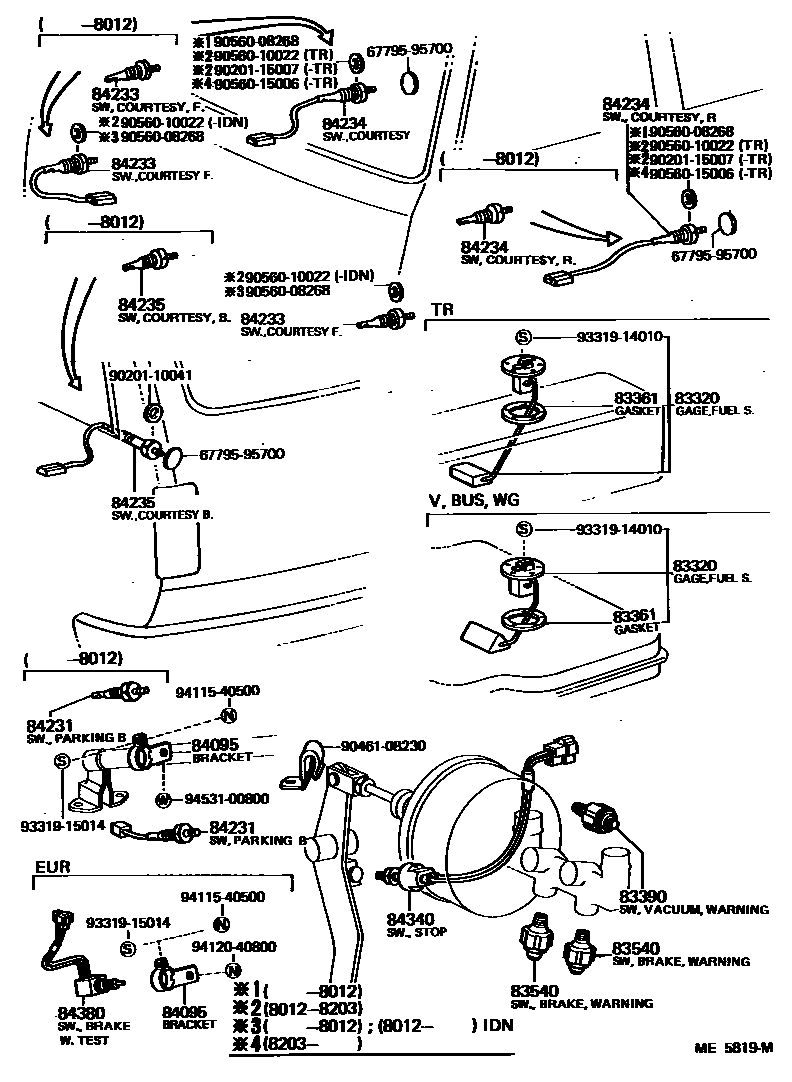

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1

83320GAGE ASSY, FUEL SENDER

main83320-29016iLH11,RH11197702-197912

main83320-29255iLH20,30,RH20,22,3#,42197702-198211

main83320-29345iLH11,RH11,25197912-198211

83361GASKET, FUEL SENDER GAGE

main83361-20030iLH11,20,30,RH11,2#,3#,42197702-198211

83390SWITCH ASSY, VACUUM WARNING

main83390-30020iLH11,20,30197904-198211

main83390-60010iLH11,20197901-197904

83540SWITCH ASSY, BRAKE WARNING (FOR TANDEM MASTER CYLINDER)

main84390-30011iRH32..V5D..EUR197912-198211

SWEDEN SPEC

84095BRACKET SUB-ASSY, HAND BRAKE SIGNAL SWITCH

main84956-26020iLH11,20,30,RH11,20,22,3#,42198012-198211

main84956-30021iLH11,20,30,RH11,2#,3#,42197702-198012

84231SWITCH ASSY, COURTESY LAMP (FOR PARKING BRAKE)

main84231-20010iLH11,20,30197901-197912

sub84230-12080

main84242-20010iLH11,20,30,RH11,2#,3#,42198012-198211

84233SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

main84231-20010×2iLH11,20,30,RH11,2#,3#,42197702-198012

sub84230-12080

main84231-95A00×2iLH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA198012-198211

84234SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

main84231-20010iLH20,30,RH20,22,3#..V4D197702-198012

sub84230-12080

main84231-95A02×2iLH20,30,RH20,22,3#,42198012-198211

main84231-95A03×2iRH11..06S198012-198211

84235SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR)

main84231-14020iLH20,30,RH20,22,3#,42197702-198012

main84231-95A00iLH20,30,RH20,22,3#,42198012-198211

84340SWITCH ASSY, STOP LAMP

main84340-12012iRH11,20,3#..EUR197702-197912

main84340-22071iLH11,20,30,RH11,20,22,3#,42197912-198202

main84340-22072iLH11,20,30,RH11,20,22,3#,42198202-198211

main84340-35010iLH11,20,30197702-197912

84380SWITCH ASSY, BRAKE WARNING TEST

main84380-20010iRH32..V5D..EUR197912-198211

SWEDEN SPEC

6779595700BUMPER, FRONT DOOR SWITCH

main67795-95700

9020110041

main90201-10041

9020115007

main90201-15007

9046108230

main90461-08230

9056008268

main90560-08268

9056010022

main90560-10022

9056015006

main90560-15006

9331914010

main93319-14010

9331915014

main93319-15014

9411540500

main94115-40500

9412040800

main94120-40800

9453100800

main94531-00800

23 parts on this diagram · 4 diagrams in section
