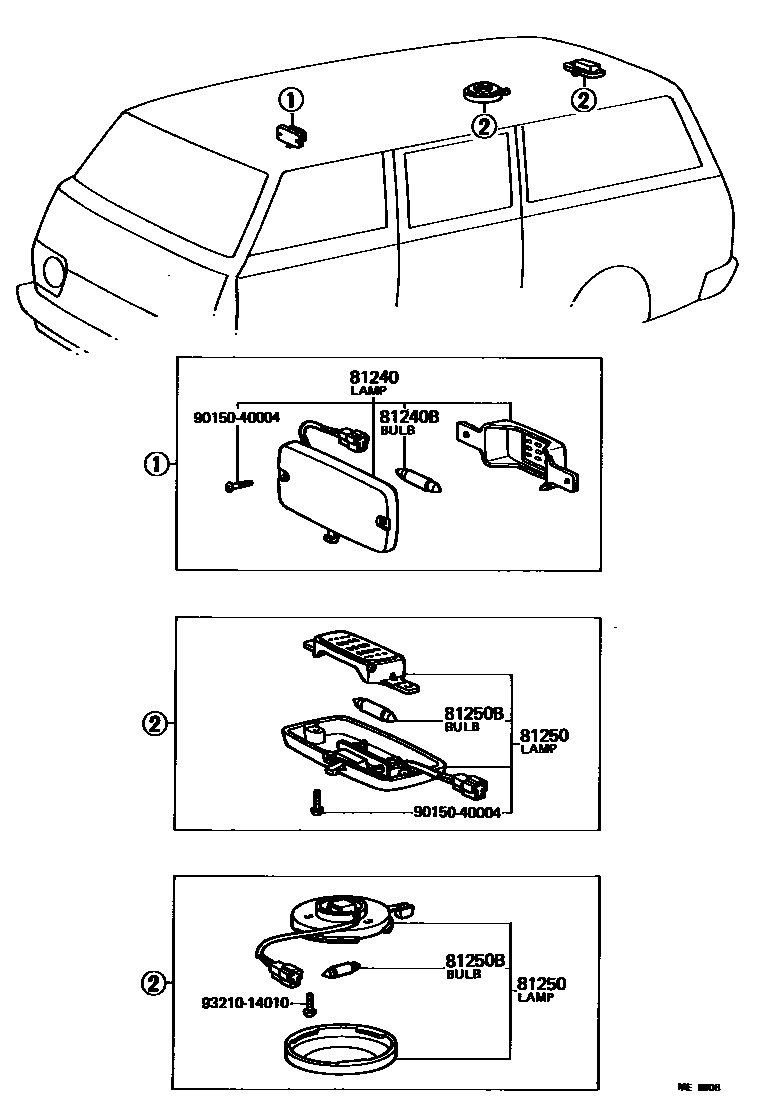

INTERIOR LAMP

0001 1 0002 1

81240LAMP ASSY, ROOM, NO.1

main81240-95705iLH20,30,RH20,22,3#,42..BUS,WG198207-198211

main81240-95A01iRH20..RHD..06S..EUR197702-198012

W/O COOLER

main81240-95A02iRH2#,3#..V197702-197704

main81240-95A03iRH11..06S197704-197709

main81240-95A04iRH11..06S197709-198211

main81240-95A10iLH20,30,RH20,22,3#,42..BUS,WG198012-198207

sub90159-40079

main81240-95A14iLH11,RH11,25..(02S,03S)..(ARL,EUR,GEN)198012-198211

81240BBULB, ROOM LAMP, NO.1

main90981-11004iLH11,20,30,RH11,2#,3#..TR,V,WG197702-198012

12V 10W,12V 10W

main99132-12100iRH20..RHD..06S..EUR197702-198012

12V 10W,12V 10W,HANGING CLOTH LINING

81250LAMP ASSY, ROOM, NO.2

main81240-90700iRH42197702-198012

main81240-95705iRH22..SA198207-198211

main81240-95A00iLH20,30,RH20,22,3#..BUS,WG197702-198012

main81240-95A01iRH20..RHD..06S..EUR197702-198012

HANGING CLOTH LINING

main81240-95A02iRH2#,3#..V197702-197704

main81240-95A03iLH20,30,RH20,22,3#..V197704-198012

main81240-95A10iRH22..SA198012-198207

sub90159-40079

main81240-95A11iLH20,30,RH20,22,3#,42..BUS198012-198207

sub90159-40079

main81240-95A16iLH20,30,RH20,22,3#..V198012-198211

main81240-95A18iLH20,30,RH20,22,3#,42..BUS198207-198211

81250BBULB, ROOM LAMP, NO.2

main90981-11004iLH20,30,RH20,22,3#..V,WG197702-198012

12V 10W,12V 10W

main99132-12100iRH20..RHD..06S..EUR197702-198012

12V 10W,12V 10W

9015040004

main90150-40004

9321014010

main93210-14010

6 parts on this diagram · 2 diagrams in section
