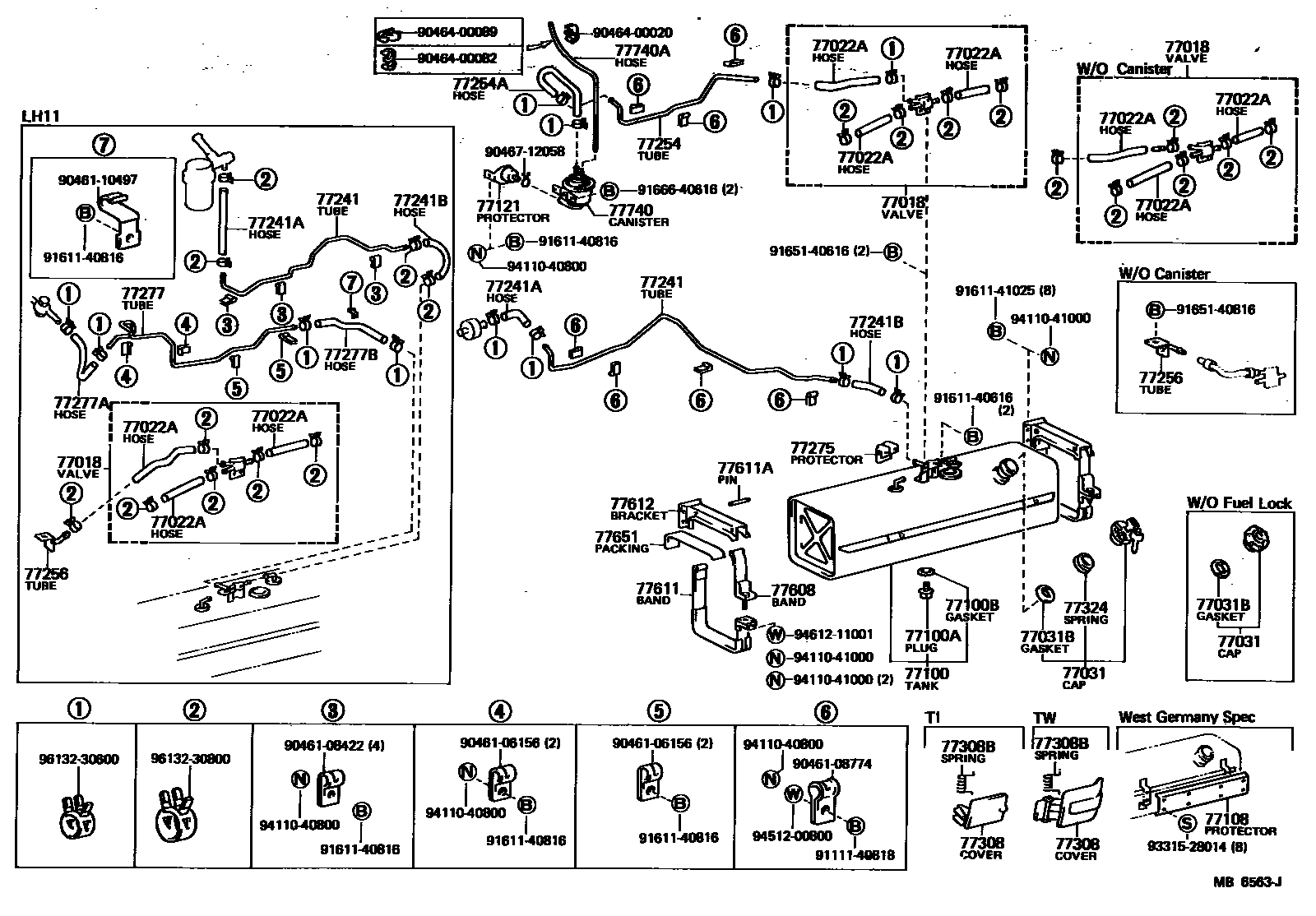

FUEL TANK & TUBE

0001 1 0002 1

77018VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

main77018-26030iRH11..ARL197702-197902

W/CANISTER

main77018-26031iRH11..ARL197902-198211

W/CANISTER

main77018-26040iLH11,RH11,25..EUR,GEN,IDN197901-198211

main77018-26050iRH20,22,3#,42..EUR,GEN,PHL,SA197702-198211

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main95332-06008iLH20,RH2#,3#,42197702-197904

L=100(*H,L=80)

sub95332-06010

main95332-06010iRH20,22,3#,42..EUR,GEN,SA197904-198211

L=100(*H,L=80)

sub95333-06010

main95332-06014iRH11..ARL197902-197904

L=200(*H,L=140),W/CANISTER

sub95332-06020

main95332-06020iRH11..ARL197904-198211

L=200(*H,L=140),W/CANISTER

sub95333-06020

main95332-06024iRH11..ARL197702-197902

L=300(*H,L=240),W/CANISTER

sub95332-06030

main95332-08014iRH11..ARL197702-197904

L=200(*H,L=140)

sub95332-08020

main95332-08014iLH11,RH11..EUR,GEN,IDN197702-197904

L=200(*H,L=140),W/CANISTER

sub95332-08020

main95332-08020iRH11..ARL197904-198211

L=200(*H,L=140),W/CANISTER

sub95333-08020

main95332-08020iLH11,RH11,25..EUR,GEN,IDN197904-198211

L=200(*H,L=140)

sub95333-08020

main95332-08026iLH11,RH11..EUR,GEN,IDN197702-197904

L=300(*H,L=260)

sub95332-08030

main95332-08030iLH11,RH11,25..EUR,GEN,IDN197904-198211

L=300(*H,L=260)

sub95333-08030

77031CAP ASSY, FUEL TANK

main69058-14030iRH11,25197702-198101

W/KEY

main69058-89102iLH11198207-198211

W/KEY

sub69058-25010

main69058-95011iLH11197901-198012

W/KEY

sub69058-95401

main69058-95400iRH11,25198101-198211

W/KEY

sub69058-60071

main69058-95401iLH11198012-198207

W/KEY

sub69058-90B01

main77310-12041iRH11,2#,3#,42197702-197912

W/O KEY

main77310-14070iLH20,30,RH11,20,22,3#,42197912-198211

W/O KEY

main77310-55080iLH11197901-198211

W/O KEY

sub77310-60100

77031BGASKET (FOR FUEL TANK CAP)

main77316-12031iLH11,RH11,25197702-198211

W/FUEL LOCK

main77316-12040iRH11,2#,3#,42197702-197912

W/O FUEL LOCK

main77316-12050iLH20,30,RH11,20,22,3#,42197912-198211

W/O FUEL LOCK

main77316-27010iLH11,20,30197901-198211

W/O FUEL LOCK

77100TANK ASSY, FUEL

main77001-26050iRH11197702-197808

sub77001-28020

main77001-26060iRH20,30197702-198211

main77001-26070iRH22,32,42197702-198211

main77001-26080iRH11..LHD..EUR..IV197803-198211

WEST GERMANY SPEC

main77001-26090iLH11197901-197912

sub77001-26091

sub77256-26071

sub90461-10497

sub95332-06038

main77001-26091iLH11197912-198211

sub77001-26170

main77001-26100iLH20,30197901-197912

sub77001-26101

main77001-26101iLH20,30197912-198010

sub77001-26102

main77001-26102iLH20,30198010-198211

main77001-28020iRH11,25197808-198211

77100APLUG(FOR FUEL TANK)

main90105-12018iLH11,20,30,RH11,2#,3#,42197702-198211

77100BGASKET(FOR FUEL TANK)

main90430-12245iLH11,20,30,RH11,2#,3#,42197702-198211

77108PROTECTOR SUB-ASSY, FUEL TANK

main77161-26010iRH11..LHD..EUR..IV197803-198211

WEST GERMANY SPEC

77121PROTECTOR, FUEL TUBE

main77276-26020iRH11..ARL197912-198211

main77276-26030iRH20,22,32,42..ARL197912-198211

77241TUBE, FUEL MAIN, NO.1

main77251-26060iRH11197702-197902

main77251-26061iRH11197902-197909

main77251-26062iRH11,25197909-198211

main77251-26070iRH2#197702-197907

main77251-26071iRH20,22197907-198211

main77251-26080iRH3#197702-197907

main77251-26081iRH3#197907-198211

main77251-26090iRH42197702-197907

main77251-26091iRH42197907-198211

main77251-26101iLH11197901-197912

main77251-26102iLH11197912-198211

main77251-26110iLH20197901-198211

main77251-26120iLH30197901-198211

77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

main95332-06010iRH11197702-197808

L=100

sub95333-06010

main95332-06018iRH11197808-197904

L=200(*H,L=180)

sub95333-06020

main95332-06020iRH11,25197904-198211

L=200(*H,L=180)

sub95333-06020

main95332-06038iRH2#,3#,42197702-197904

L=400(*H,L=380)

sub95332-06040

main95332-06040iRH20,22,3#,42197904-198211

L=400(*H,L=380)

sub95333-06040

main95332-08040iLH11197901-198211

L=400(*H,L=360)

sub95333-08040

main95332-08060iLH20,30197901-198211

L=600(*H,L=480)

sub95333-08060

77241BHOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

main77259-26010iLH20,30197907-198211

main95332-06011iRH11197702-197904

L=200(*H,L=110)

sub95332-06020

main95332-06015iRH2#,32,42197702-197904

L=200(*H,L=150)

sub95332-06020

main95332-06020iRH11,25197904-198211

L=200(*H,L=150)

sub95333-06020

main95332-06020iRH11,25197904-198211

L=200(*H,L=110)

sub95333-06020

main95332-08014iLH20197901-197907

L=200(*H,L=140)

sub95332-08020

main95332-08030iLH11197901-198211

L=300(*H,L=220)

sub95333-08030

77254TUBE, FUEL EMISSION, NO.1

main77262-26050iRH11..ARL197702-197902

W/CANISTER

main77262-26051iRH11..ARL197902-197912

W/CANISTER

main77262-26060iRH20,22..ARL197702-198211

W/CANISTER

main77262-26070iRH32..ARL197702-198211

W/CANISTER

main77262-26080iRH42..ARL197702-198211

W/CANISTER

main77262-26110iRH11..ARL197912-198211

W/CANISTER

77254AHOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)

main77209-26010iRH11..ARL197912-198211

L=300,W/CANISTER

main95332-06038iRH11,20..ARL197702-198211

L=400(*H,L=380),W/CANISTER

sub95332-06040

main95332-06070iRH2#,32,42..ARL197702-197912

L=1000(*H,L=700),W/CANISTER

sub95332-06080

main95332-06090iRH20,22,32,42..ARL197912-198211

L=1000(*H,L=900),W/CANISTER

sub95332-06100

77256TUBE, FUEL EMISSION, NO.3

main77244-26010iLH11,RH11,25..EUR,GEN,IDN197702-198211

main77263-26020iRH20,22,3#,42..EUR,GEN,PHL,SA197702-198211

77275PROTECTOR, FUEL EVAPORATIVE SEPARATOR

main77197-25010iLH11,RH11..IV197702-198211

77277TUBE, FUEL RETURN, NO.1

main77256-26040iRH22197702-197907

main77256-26041iRH22197907-198211

main77256-26050iRH32197702-197907

main77256-26051iRH32197907-198211

main77256-26060iRH42197702-197907

main77256-26061iRH42197907-198211

main77256-26070iLH11197901-197907

main77256-26071iLH11197907-198211

main77256-26080iLH20197901-198211

main77256-26090iLH30197901-198211

77277AHOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

main95332-06020iRH22,32,42197912-198211

L=200(*H,L=160),W/VALVE

sub95333-06020

main95332-06030iLH11197901-198211

L=300(*H,L=240)

sub95333-06030

main95332-06032iLH20,30197901-197912

L=400(*H,L=320)

sub95332-06040

main95332-06040iRH22,32,42197912-198211

L=400(*H,L=360)

sub95333-06040

main95332-06040iLH20,30197912-198211

L=300,W/VALVE

sub95333-06040

main95332-06048iRH22,32,42197702-198211

L=600(*H,L=480),W/O VALVE

sub95332-06060

77277BHOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)

main95331-06014iLH20,RH22,32,42197702-197907

*H,L=140

sub95332-06014

main95332-06020iRH22,32,42..ARL197907-198211

L=200(*H,L=150)

sub95333-06020

main95332-06024iLH11197901-197912

L=300(*H,L=240)

sub95332-06030

main95332-06040iLH11197912-198211

L=400(*H,L=380)

sub95333-06040

77308COVER SUB-ASSY, FUEL INLET BOX

main64016-95A00iRH11..06S197702-198211

main65640-95600iLH11,RH11..T1197702-198211

main77310-95A00iRH2#,3#,42197702-197705

main77310-95A01iLH20,30,RH20,22,3#,42197705-198012

main77310-95A03iLH20,30,RH20,22,3#,42198012-198211

77308BSPRING, TORSION(FOR FUEL INLET BOX COVER)

main65644-91336iRH11..06S197702-198211

main90508-23186iLH11,RH11..T1197702-198211

77324SPRING, FUEL TANK CAP

main77324-12011iLH11,RH11,25197702-198211

W/FUEL LOCK

77608BAND SUB-ASSY, FUEL TANK, NO.2

main77603-26010iLH11,RH11197702-197903

sub77603-26011

sub77601-25090

main77603-26011iLH11,RH11,25197903-198211

sub77603-25010

77611BAND, FUEL TANK

main77601-25090iLH11,RH11,25197903-198211

main77601-26010iLH11,RH11197702-197903

77611APIN (FOR FUEL TANK BAND)

main77629-25010iLH11,RH11,25197702-198211

77612BRACKET SUB-ASSY, FUEL TANK

main77501-28011iLH11,RH11,25198201-198211

sub77501-25091

main77502-25010iLH11,RH11,25197702-198201

77651PACKING, FUEL TANK BRACKET

main77651-25040iLH11,RH11,25197702-198211

77740CANISTER ASSY, CHARCOAL

main77740-26013iRH11,2#,32,42..ARL197702-197712

sub77740-26020

main77740-26020iRH11..ARL197712-198211

main77740-26040iRH20,22,32,42..ARL197912-198211

77740AHOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)

main95411-19960iRH22,32,42..ARL197702-198211

*H,L=600,MARK=#*,W/CANISTER

sub90999-92003

main95411-19995iRH20..ARL197702-197812

*H,L=900,MARK=#*,W/CANISTER

sub90999-92004

main95411-19995iRH11..ARL197702-197812

*H,L=750,MARK=#*

sub90999-92004

main95411-19995iRH11..ARL197812-198211

*H,L=750,MARK=#*,W/CANISTER

sub90999-92004

main95411-19995iRH11..ARL197812-198211

*H,L=850,MARK=#*,W/CANISTER

sub90999-92004

9046106156

main90461-06156

9046108422

main90461-08422

9046108774

main90461-08774

9046110497

main90461-10497

9046400020

main90464-00020

9046400082

main90464-00082

9046400089

main90464-00089

9046712058

main90467-12058

9111140818

main91111-40818

9161140616

main91611-40616

9161140816

main91611-40816

9161141025

main91611-41025

9165140616

main91651-40616

9165140816

main91651-40816

9166640616

main91666-40616

9331528014

main93315-28014

9411040800

main94110-40800

9411041000

main94110-41000

9451200800

main94512-00800

9461211001

main94612-11001

9613230600

main96132-30600

9613230800

main96132-30800

51 parts on this diagram · 2 diagrams in section
