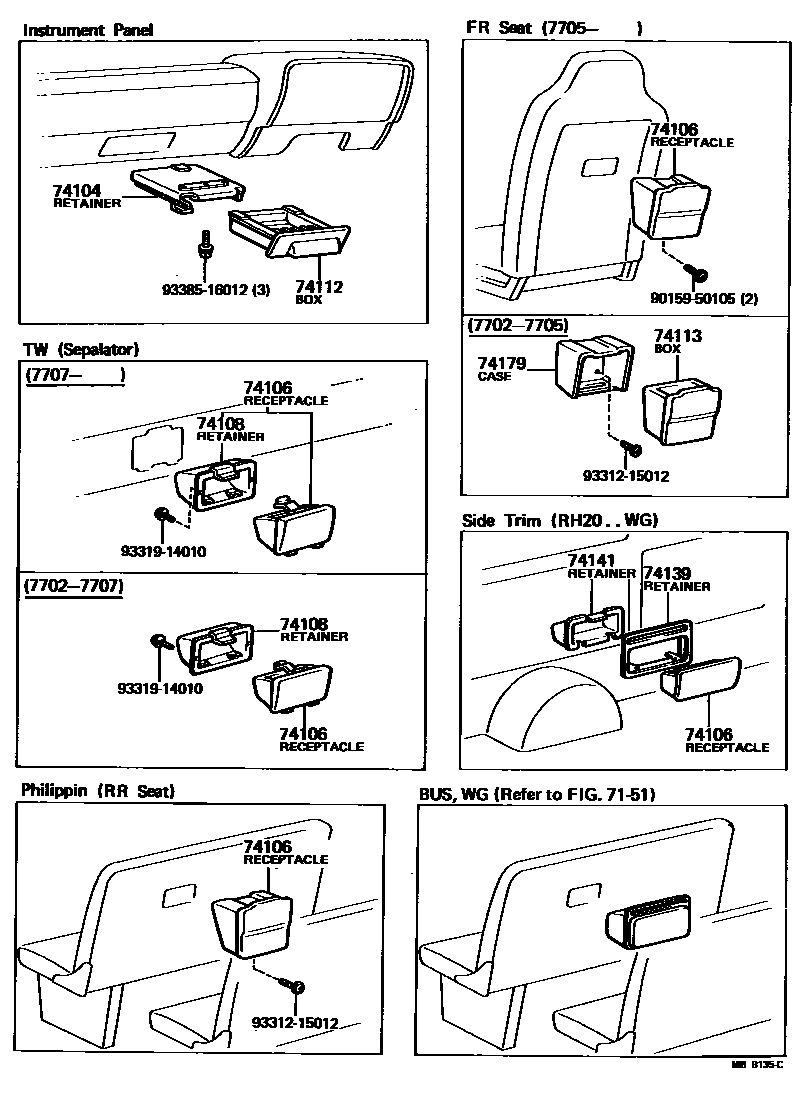

ASH RECEPTACLE

7151

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74101-95A00iLH11,20,30,RH11,2#,3#,42..RHD197702-197912

main74101-95A01iLH11,20,30,RH11,2#,3#..LHD197702-197912

main74104-95A01iLH11,20,30,RH11,20,22,3#,42..RHD..(ARL,EUR,GEN,SA)197912-198211

main74104-95A02iLH11,20,30,RH11,2#,3#..LHD197912-198211

74106RECEPTACLE SUB-ASSY, ASH, NO.2

main74105-10010iRH20..09S..EUR198102-198211

SIDE TRIM

main74106-30040iRH11..06S197702-197707

sub74106-10040

main74120-90501iRH30..PHL;LH30..06S..GEN197702-198211

RR SEAT,PHILIPPIN SPEC

main74120-95A00iLH20,30,RH20,22,3#,42..BUS,WG197705-198211

FR SEAT

main74140-95700iRH11..06S197707-198211

74108RETAINER SUB-ASSY, REAR ASH RECEPTACLE

main74141-95550iRH11..06S197702-198211

74112BOX, ASH RECEPTACLE, NO.1

main74101-95A04iLH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA197912-198211

main74111-95A00iLH11,20,30,RH11,2#,3#,42197702-198211

74113BOX, ASH RECEPTACLE, NO.2

main74101-90501iRH2#,3#..06S197702-197705

74139RETAINER, REAR ASH RECEPTACLE, OUTER

main74135-10030iRH20..09S..EUR198102-198211

SIDE TRIM

74141RETAINER, REAR ASH RECEPTACLE, INNER

main74137-10030iRH20..09S..EUR198102-198211

SIDE TRIM

74179CASE, ASH RECEPTACLE

main74121-90501iRH2#,3#..06S197702-197705

9015950105

main90159-50105

9331215012

main93312-15012

9331914010

main93319-14010

9338516012

main93385-16012

13 parts on this diagram · 1 diagram in section
