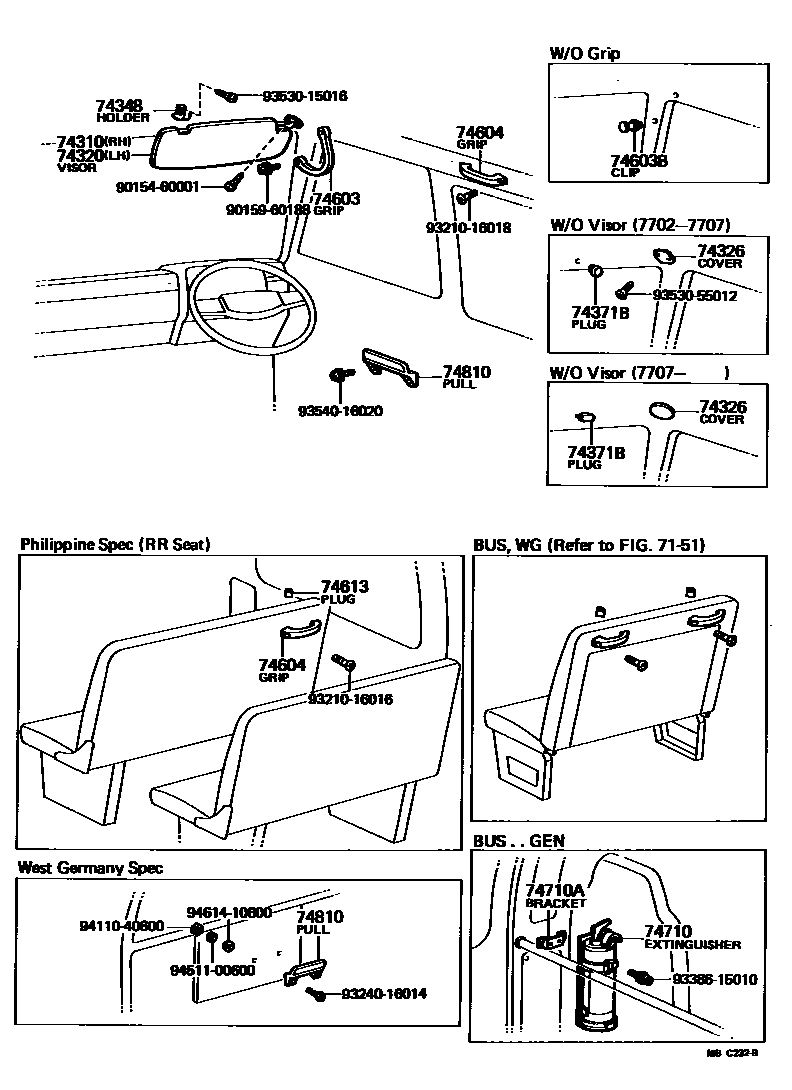

ARMREST & VISOR

7151

74310VISOR ASSY, RH

main74310-90700iRH42..GEN197912-198012

main74310-90701iRH42..ARL197912-198012

main74310-95A00iRH11,2#,3#,42..EUR,GEN,IDN,PHL,SA197702-197912

main74310-95A01iRH11,2#,32,42..ARL197702-197912

main74310-95A04iRH11,20..LHD197803-197912

WEST GERMANY SPEC

main74310-95A06iRH42..GEN198012-198211

sub74310-95A13

main74310-95A07iRH42..ARL198012-198211

main74310-95A09iLH30,RH11,20,32..LHD197912-198211

WEST GERMANY SPEC

74320VISOR ASSY, LH

main74320-90700iRH42..GEN197912-198012

main74320-90701iRH42..ARL197912-198012

main74320-95A00iLH11,20,30,RH11,2#,3#,42..EUR,GEN,IDN,PHL,SA197702-197912

main74320-95A01iRH11,2#,32,42..ARL197702-197912

main74320-95A04iRH11,20..LHD197803-197912

WEST GERMANY SPEC

main74320-95A06iLH11,20,30,RH11,2#,3#..EUR,GEN,IDN,SA197912-198211

main74320-95A07iRH11,20,22,32..ARL197912-198211

main74320-95A09iLH30,RH11,20,32..LHD197912-198211

WEST GERMANY SPEC

74326COVER, VISOR HOLE

main61167-95A00iRH11,2#,3#,42197702-197707

main74325-95A00iLH11,20,30,RH2#,3#..LHD..(EUR,GEN)197707-197912

RH

main74325-95A01iLH11,20,30,RH2#,3#..LHD197912-198211

RH

main74326-95A00iLH11,20,30,RH2#,3#,42..RHD..(EUR,GEN)197707-197912

LH

main74326-95A01iLH11,20,30,RH20,22,3#,42..RHD..(EUR,GEN)197912-198211

LH

74348HOLDER, VISOR

main74348-95A00×2iLH11,20,30,RH11,2#,3#,42197702-197912

main74348-95A01×2iRH11,20..LHD197803-197912

WEST GERMANY SPEC

main74348-95A02×2iLH11,20,30,RH11,2#,3#,42197912-198211

main74348-95A03×2iLH30,RH11,20,32..LHD197912-198211

WEST GERMANY SPEC

74371BPLUG, HOLE (FOR VISOR HANGER)

main74349-95A00iRH11,2#,3#,42197707-197912

main74349-95A01iLH11,20,30,RH11,2#,3#,42..EUR,GEN197912-198211

main90950-01058iRH11,2#,3#,42197702-197707

74603GRIP SUB-ASSY, ASSIST, FRONT

main74620-95A00×2iLH11,20,30,RH11,2#,3#,42197702-198211

74603BCLIP (FOR ASSIST GRIP)

main67868-30030×4iLH11,20,30,RH11,20,32..LHD..EUR197803-198012

WEST GERMANY & SWEDEN SPEC

main90034-80031×4iLH11,20,30,RH11,20,32..LHD..EUR198012-198211

WEST GERMANY & SWEDEN SPEC

74604GRIP SUB-ASSY, ASSIST, REAR

main74603-20010-05×6iRH30..PHL197702-197912

SEAT BACK SIDE,PHILIPPIN SPEC,BEIGE

sub74610-20030

sub74617-14010

main74603-95A03×6iLH30,RH32..LHD..V5D..GEN197912-198211

SEAT BACK SIDE,PHILIPPIN SPEC

main74611-95A00iLH20,30,RH2#,3#,42..BUS,WG197702-197912

ROOF SIDE

sub74603-95701

sub74617-16010

main74611-95A01iLH20,30,RH20,22,3#,42..BUS,WG197912-198211

ROOF SIDE

74613PLUG, ASSIST GRIP

main74617-12010-05×12iRH30..PHL197702-197912

SEAT BACK SIDE,PHILIPPIN SPEC,BEIGE

sub74613-20020

main74617-95A03×12iLH30,RH32..LHD..V5D..GEN197912-198211

SEAT BACK SIDE,PHILIPPIN SPEC

74710EXTINGUISHER ASSY

main74710-90118iRH42..GEN197702-198211

main74710-95A00iRH20..LHD..BUS..GEN197702-197712

main74710-95A02iRH20,30..RHD..BUS..GEN197702-197712

74710ABRACKET, EXTINGUISHER

main74703-95A00iLH20,30,RH20,22,3#,42..BUS..GEN197702-198211

74810PULL ASSY, DOOR, INSIDE

main69151-95A00×4iLH11,20,30,RH11,2#,3#,42197702-198211

sub69151-95600

main74810-10010-06×2iRH11,20..LHD197803-197912

WEST GERMANY SPEC,BROWN,BROWN

sub74630-90800

main74810-95010×2iLH30,RH11,20,32..LHD197912-198211

WEST GERMANY SPEC,BROWN

9015460001

main90154-60001

9015960188

main90159-60188

9321016016

main93210-16016

9321016018

main93210-16018

9324016014

main93240-16014

9338615010

main93386-15010

9353015016

main93530-15016

9353055012

main93530-55012

9354016020

main93540-16020

9411040600

main94110-40600

9451100600

main94511-00600

9461410600

main94614-10600

25 parts on this diagram · 1 diagram in section
