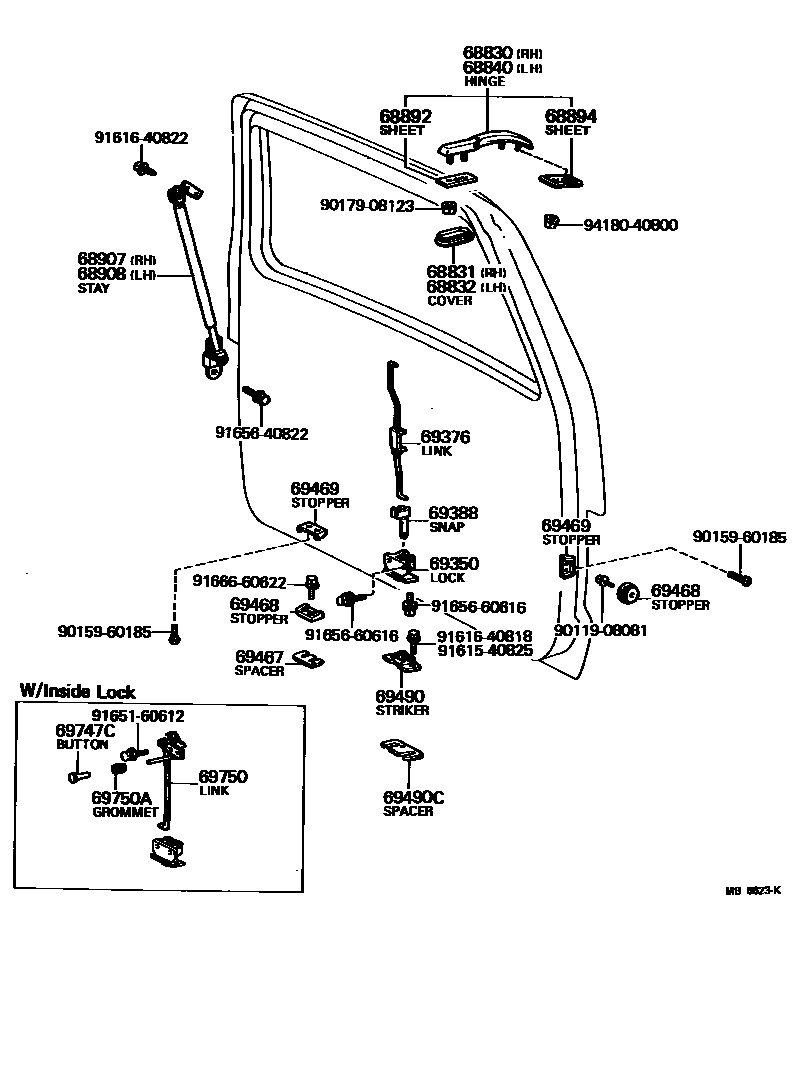

BACK DOOR LOCK & HINGE

0001 1 0002 1

68830HINGE ASSY, BACK DOOR, RH

main68810-95A00iLH20,30,RH20,22,3#,42197702-198211

68831COVER, BACK DOOR HINGE UPPER, RH

main68895-95A00iLH20,30,RH2#,3#,42..BUS,V197702-197912

main68895-95A01iRH2#..RHD..(06S,09S)..(EUR,SA)197702-197912

*SUH

main68895-95A03iRH20..09S..EUR;RH20,22..RHD..(06S,09S)..(EUR,SA)197912-198211

*SUH

main68895-95A04iLH20,30,RH20,22,3#,42..ARL,EUR,GEN197912-198211

68832COVER, BACK DOOR HINGE UPPER, LH

main68895-95A00iLH20,30,RH2#,3#,42..BUS,V197702-197912

main68895-95A01iRH2#..RHD..(06S,09S)..(EUR,SA)197702-197912

*SUH

main68895-95A03iRH20..09S..EUR;RH20,22..RHD..(06S,09S)..(EUR,SA)197912-198211

*SUH

main68895-95A04iLH20,30,RH20,22,3#,42..ARL,EUR,GEN197912-198211

68840HINGE ASSY, BACK DOOR, LH

main68820-95A00iLH20,30,RH20,22,3#,42197702-198211

68892SHEET, BACK DOOR HINGE, UPPER FEMALE

main68891-95A00iLH20,30,RH20,22,3#,42197702-198211

68894SHEET, BACK DOOR HINGE, UPPER MALE

main68892-95A00iLH20,30,RH20,22,3#,42197702-198211

68907STAY SUB-ASSY, BACK DOOR DAMPER, RH

main68970-95A00iRH2#,3#,42197702-197803

main68970-95A01iRH20,3#..EUR197702-197803

COLD SPEC

main68970-95A03iLH20,30,RH20,22,3#,42..ARL,GEN,PHL,SA197803-198010

main68970-95A04iLH20,30,RH20,3#..EUR197803-198010

main68970-95A05iLH20,30,RH20,3#..EUR197803-198010

W/RR WIPER

main68970-95A08iLH20,30,RH20,22,3#,42..ARL,GEN,SA198010-198211

main68970-95A09iLH20,30,RH20,3#..EUR198010-198211

main68970-95A10iLH20,30,RH20,3#..EUR198010-198211

W/RR WIPER

68908STAY SUB-ASSY, BACK DOOR DAMPER, LH

main68980-95A00iRH2#,3#,42197702-197803

main68980-95A01iRH20,3#..EUR197702-197803

COLD SPEC

main68980-95A03iLH20,30,RH20,22,3#,42..ARL,GEN,PHL,SA197803-198010

main68980-95A04iLH20,30,RH20,3#..EUR197803-198010

main68980-95A05iLH20,30,RH20,3#..EUR197803-198010

W/RR WIPER

main68980-95A08iLH20,30,RH20,22,3#,42..ARL,GEN,SA198010-198211

main68980-95A09iLH20,30,RH20,3#..EUR198010-198211

main68980-95A10iLH20,30,RH20,3#..EUR198010-198211

W/RR WIPER

69350LOCK ASSY, BACK DOOR

main69350-95A00iLH20,30,RH20,22,3#,42197702-198211

69376LINK, BACK DOOR LOCK

main69301-95A00iLH20,30,RH20,22,3#,42197702-198211

69388SNAP, ROD(FOR DOOR LOCK)

main69388-12010iLH20,30,RH20,22,3#,42197702-198211

69467SPACER, BACK DOOR SIDE STOPPER

main69467-95A00iLH20,30,RH20,22,3#,42197912-198211

T=1.6

69468STOPPER, BACK DOOR SIDE MALE

main69407-95A00iLH20,30,RH20,22,3#,42197702-198211

SIDE

main69408-95A00iLH20,30,RH2#,3#,42197702-197912

LWR

main69468-95A00iLH20,30,RH20,22,3#,42197912-198012

LWR,RH

sub69468-95A01

main69468-95A01iLH20,30,RH20,22,3#,42198012-198211

LWR,RH

main69469-95A01iLH20,30,RH20,22,3#,42197912-198012

LWR,LH

sub69469-95A02

main69469-95A02iLH20,30,RH20,22,3#,42198012-198211

LWR,LH

69469STOPPER, BACK DOOR SIDE FEMALE

main69408-95A01iLH20,30,RH20,22,3#,42197912-198012

LWR,LH

sub69408-95A02

main69408-95A02iLH20,30,RH20,22,3#,42198012-198211

LWR,LH

main69409-95A00iLH20,30,RH20,22,3#,42197912-198012

LWR,RH

sub69409-95A01

main69409-95A01iLH20,30,RH20,22,3#,42198012-198211

LWR,RH

main69466-95A00iLH20,30,RH20,22,3#,42197702-198211

SIDE

main69469-95A00iLH20,30,RH2#,3#,42197702-197912

LWR

69490STRIKER ASSY, BACK DOOR LOCK

main69450-95A00iLH20,30,RH20,22,3#,42197702-198211

69490CSPACER, BACK DOOR LOCK STRIKER

main69475-95A00iLH20,30,RH20,22,3#,42197702-198211

69747CBUTTON, DOOR LOCKING(FOR BACK DOOR)

main69747-20020iRH2#,3#,42..BUS197702-198211

69750LINK SUB-ASSY, BACK DOOR REMOTE CONTROL

main69250-95A00iRH2#,3#,42..BUS197702-198211

69750AGROMMET(FOR BACK DOOR REMOTE CONTROL)

main90480-10102iRH2#,3#,42..BUS197702-198211

9011908081

main90119-08081

9015960185

main90159-60185

9017908123

main90179-08123

9161540825

main91615-40825

9161640818

main91616-40818

9161640822

main91616-40822

9165160612

main91651-60612

9165640822

main91656-40822

9165660616

main91656-60616

9166660622

main91666-60622

9418040800

main94180-40800

30 parts on this diagram · 2 diagrams in section
