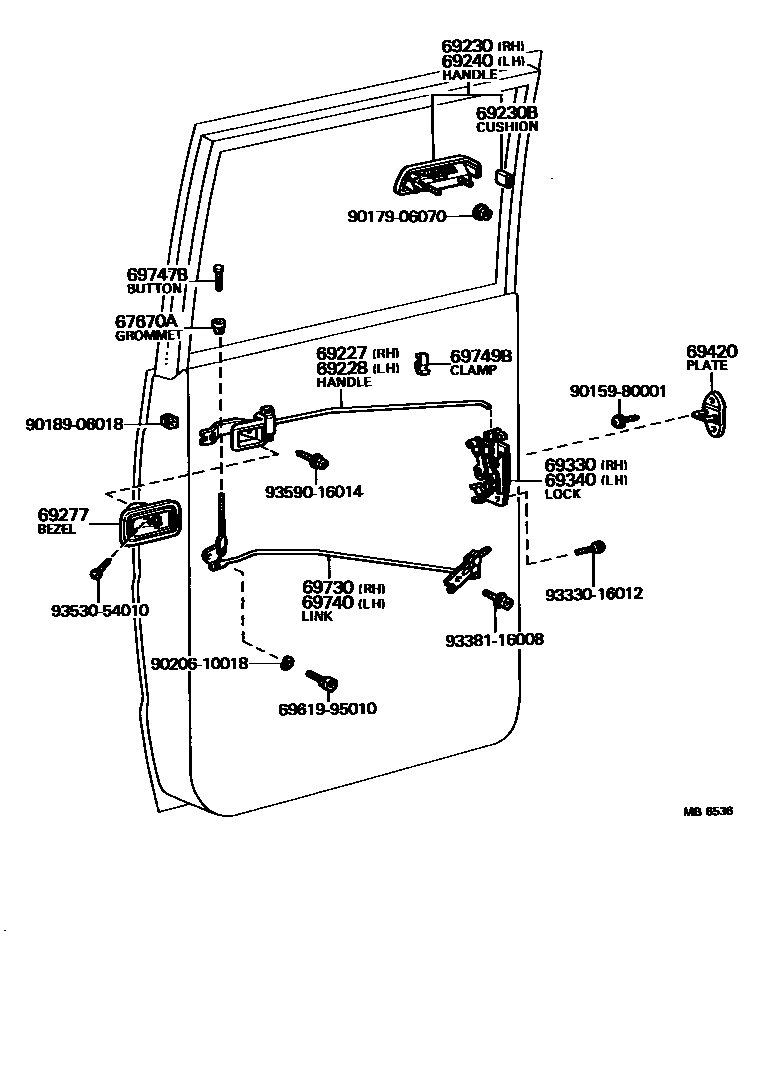

REAR DOOR LOCK & HANDLE

0001 1 0002 1

67670AGROMMET(FOR REAR DOOR PANEL LOCK BUTTON)

main90480-10102iLH20,30,RH20,22,3#,42197702-198210

69227HANDLE, REAR DOOR INSIDE, RH

main69730-95A00iRH2#..LHD..V4D197702-197811

sub69730-95A01

main69730-95A01iRH2#..LHD..V4D197811-197901

sub69730-95A02

main69730-95A02iRH2#..LHD..V4D197811-197912

DUSTY REGION,COLD SPEC

main69730-95A03iLH20,30,RH20,22,3#..LHD197912-198211

main69750-95A00iRH11..06S197702-198211

69228HANDLE, REAR DOOR INSIDE, LH

main69740-95A00iRH2#,3#..RHD..V4D197702-197811

sub69740-95A02

main69740-95A02iRH2#,3#..V5D197811-197901

sub69740-95A03

main69740-95A03iRH2#,3#..V5D197811-197912

DUSTY REGION,COLD SPEC

main69740-95A05iLH20,30,RH20,22,3#,42..RHD197912-198211

main69760-95A00iRH11..06S197702-198211

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-95011iRH11..06S197702-198211

main69230-95A90iLH20,30,RH20,22,3#..LHD197702-198211

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main69239-95700iRH11..06S197702-198211

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69220-95011iRH11..06S197702-198211

main69240-95A90iLH20,30,RH20,22,3#,42..RHD197702-198211

69277BEZEL, REAR DOOR INSIDE HANDLE

main69276-95A00iRH11..06S197702-198211

sub69276-10012

69330LOCK ASSY, REAR DOOR, RH

main69310-95012iRH11..06S197702-198211

main69330-95A00iRH2#,3#..V5D197702-197708

sub69330-95A01

main69330-95A01iRH2#,3#..V5D197708-197709

sub69330-95A02

main69330-95A02iLH20,30,RH20,22,3#..LHD197709-198211

69340LOCK ASSY, REAR DOOR, LH

main69320-95014iRH11..06S197702-198211

main69340-95A00iRH2#,3#..V5D197702-197708

sub69340-95A01

main69340-95A01iRH2#,3#..V5D197708-197709

sub69340-95A02

main69340-95A02iLH20,30,RH20,22,3#,42..RHD197709-198211

69420PLATE ASSY, REAR DOOR LOCK STRIKER

main69410-95010iRH11..06S197702-198211

sub69410-37010

main69470-95A00iRH2#,3#..V4D197702-197708

sub69470-95A01

main69470-95A01iLH20,30,RH20,22,3#..V4D197708-198211

69730LINK ASSY, REAR DOOR OPEN CONTROL, RH

main69701-95A00iRH11..06S197702-198211

69740LINK ASSY, REAR DOOR OPEN CONTROL, LH

main69702-95A00iRH11..06S197702-198211

69747BBUTTON, DOOR LOCKING(FOR REAR DOOR)

main69747-20020iLH20,30,RH20,22,3#,42197702-198211

69749BCLAMP, REAR DOOR LOCK LINK

main69749-12010iRH11..06S197702-198208

main69749-30020iRH11..06S198208-198211

6961995010BOLT, REAR DOOR LOCKING CONTROL

main69619-95010

9015980001

main90159-80001

9017906070

main90179-06070

9018906018

main90189-06018

9020610018

main90206-10018

9333016012

main93330-16012

9338116008

main93381-16008

9353054010

main93530-54010

9359016014

main93590-16014

23 parts on this diagram · 2 diagrams in section
