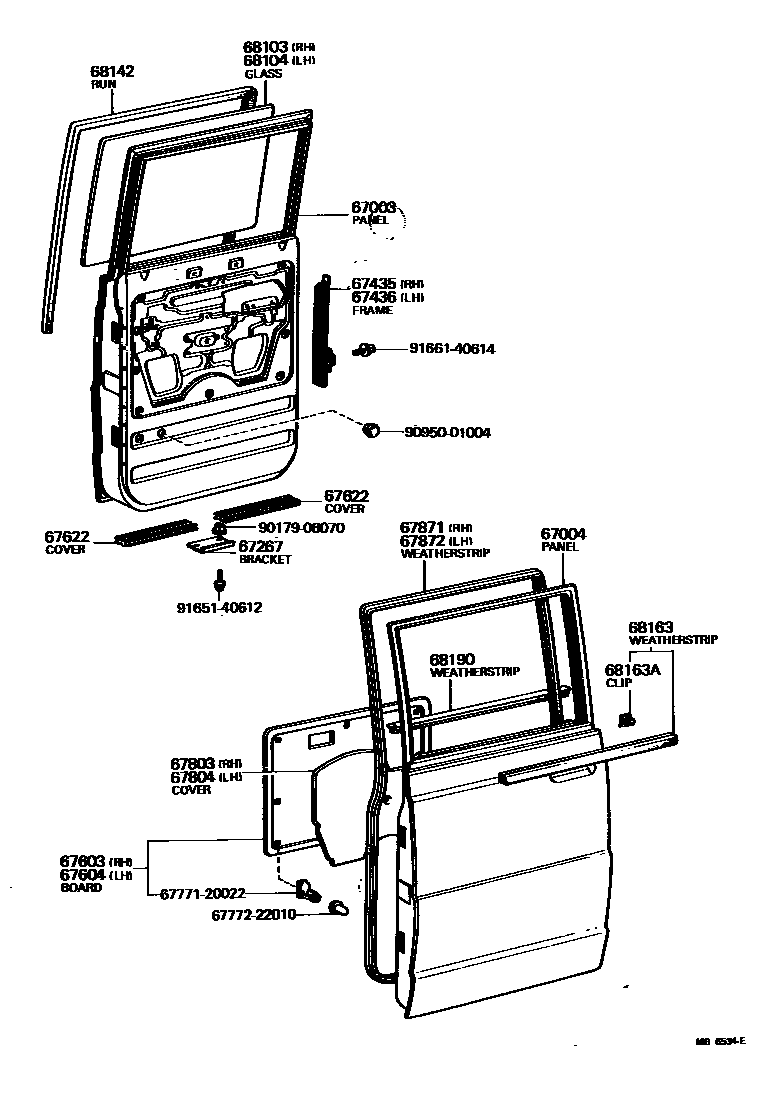

REAR DOOR PANEL & GLASS

0001 1 0002 1

67003PANEL SUB-ASSY, REAR DOOR, RH

main67007-95A00iRH11..06S197702-198211

67004PANEL SUB-ASSY, REAR DOOR, LH

main67008-95A00iRH11..06S197702-198211

67267BRACKET, DOOR INSIDE PANEL, LOWER

main67311-95A00iRH11..06S197702-198211

67435FRAME, REAR DOOR WINDOW LOWER, RH

main67403-95A00iRH11..06S197702-198211

67436FRAME, REAR DOOR WINDOW, LOWER LH

main67404-95A00iRH11..06S197702-198211

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-95A00-05iLH20,30,RH2#,3#..LHD..06S197702-198211

BEIGE,BEIGE

sub67630-95A00

main67630-95A02iRH11..RHD..06S..GEN197702-197912

BROWN

main67630-95A03iRH11..06S..ARL197702-197912

BROWN

main67630-95A05iRH11..06S197912-198211

sub67630-26030

main67630-95A06iLH20,30,RH20,22,3#..LHD..06S197912-198211

BEIGE

sub67630-26040

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-95A00-05iLH20,RH2#,3#..RHD..06S197702-197912

BEIGE,BEIGE

sub67640-95A00

main67640-95A02iRH11..RHD..06S..GEN197702-197912

BROWN

main67640-95A03iRH11..06S..ARL197702-197912

BROWN

main67640-95A04iRH22..SA197905-197912

BEIGE

main67640-95A07iLH20,30,RH20,22,3#..RHD..06S197912-198211

BEIGE

sub67640-95A11

main67640-95A08iRH22..SA197912-198211

BEIGE

sub67640-95A11

main67640-95A09iRH11..06S197912-198211

BROWN

sub67640-26110

67622COVER, REAR DOOR INSIDE PANEL LOWER HOLE

main67835-95A00iRH11..06S197702-198211

67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH

main67832-95A00iRH11..06S197702-198211

67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH

main67832-95A00iRH11..06S197702-198211

67871WEATHERSTRIP, REAR DOOR, RH

main67863-95A00iRH11..06S197702-198211

sub67863-95402

67872WEATHERSTRIP, REAR DOOR, LH

main67864-95A00iRH11..06S197702-198211

sub67864-95402

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-95A00iRH11..06S197702-198211

*TEM,T=4.0

sub68113-95A01

68104GLASS SUB-ASSY, REAR DOOR, LH

main68113-95A00iRH11..06S197702-198211

*TEM,T=4.0

sub68113-95A01

68142RUN, REAR DOOR GLASS

main68142-95A00iRH11..06S197702-198211

68163WEATHERSTRIP, REAR DOOR GLASS, OUTER

main68120-95A00iRH11..06S197702-198002

sub68120-95A01

main68120-95A01iRH11..06S198002-198211

68163ACLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP)

main68212-95A00iRH11..06S197702-198002

sub68212-95A01

main68212-95A01iRH11..06S198002-198211

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68110-95A00iRH11..06S197702-198005

sub68110-95A01

main68110-95A01iRH11..06S198005-198211

6777120022WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-20022

6777222010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-22010

9017906070

main90179-06070

9095001004

main90950-01004

9165140612

main91651-40612

9166140614

main91661-40614

24 parts on this diagram · 2 diagrams in section
