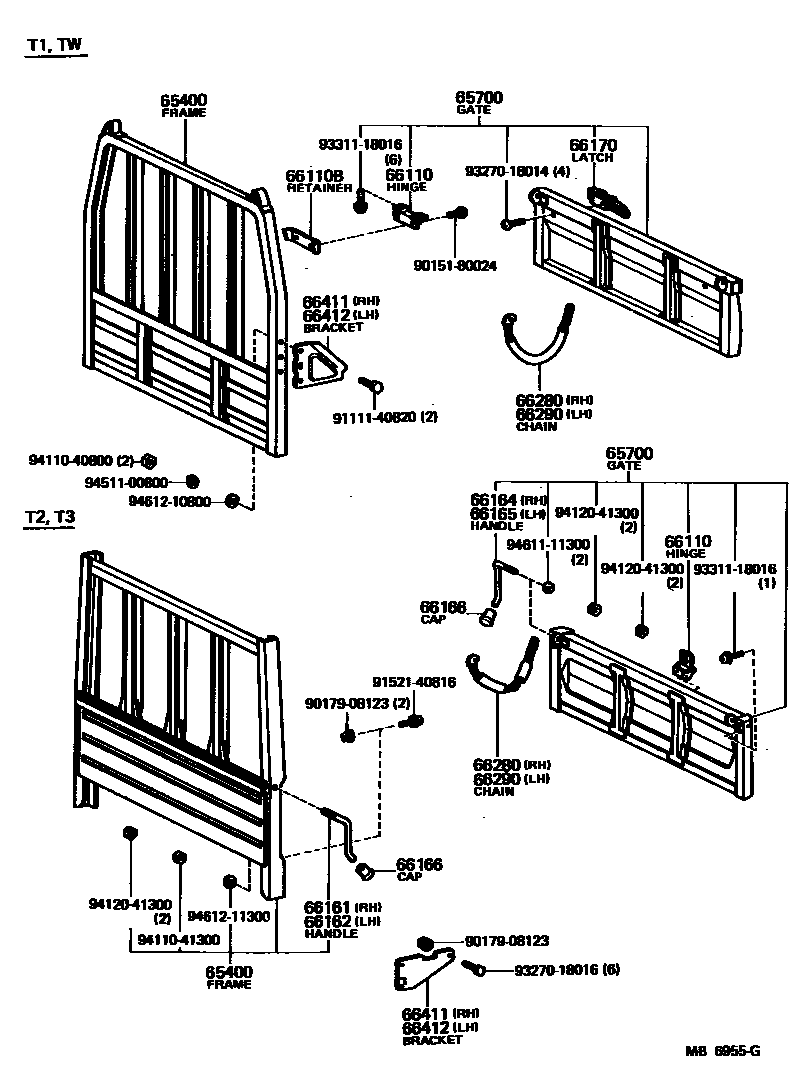

REAR BODY GUARD FRAME & TAIL GATE

0001 1 0002 1

65400FRAME ASSY, REAR BODY GUARD

main65400-95024iLH11,RH11..T3197703-198211

sub65400-95A04

main65400-95038iRH25197912-198211

main65400-95A00iLH11,RH11..T1,TW197702-198211

main65400-95A01iRH11..T3197702-197703

sub65400-95024

65700GATE ASSY, REAR BODY TAIL

main65700-95021iRH11..T3197702-197901

main65700-95024iRH25197912-198009

main65700-95026iRH25198009-198201

sub65700-95A01

main65700-95602iLH11,RH11..T1,TW197702-198211

main65700-95A01iRH25198201-198211

main65700-95D02iLH11,RH11..T3197901-198211

66110HINGE ASSY, TAIL GATE

main66110-95015iRH11..T3197702-197901

main66110-95016iRH25197912-198009

main66110-95018iLH11,RH11..T3197901-198211

main66110-95020iRH25198009-198211

main66110-95601iLH11,RH11..T1,TW197702-198104

sub66110-95A00

main66110-95A00iLH11,RH11..T1,TW198104-198211

66110BRETAINER, TAIL GATE HINGE, LOWER

main66115-95012iLH11,RH11..T1,TW197702-198211

sub66115-95018

66161HANDLE, SIDE GATE LATCH, RH

main65480-92700iRH25198009-198211

main65480-95010iRH25197912-198009

sub65480-92700

main66161-95011iLH11,RH11..T3197702-198211

66162HANDLE, SIDE GATE LATCH, LH

main65490-92701iRH25198009-198211

main65490-95010iRH25197912-198009

sub65490-92701

main66162-95010iLH11,RH11..T3197702-198211

66164HANDLE, TAIL GATE LATCH, RH

main66163-95011iLH11,RH11,25..T3197702-198211

main66163-95D00iRH25198009-198211

66165HANDLE, TAIL GATE LATCH, LH

main66164-95011iLH11,RH11,25..T3197702-198211

main66164-95D00iRH25198009-198211

66166CAP, GATE LATCH HANDLE

main66165-87402iLH11,RH11..T3198110-198211

main66165-95010iLH11,RH11,25..T3197702-198211

66170LATCH ASSY, REAR BODY TAIL GATE

main66170-95111iLH11,RH11..T1,TW197702-198104

main66170-95112iLH11,RH11..T1,TW198104-198211

66280CHAIN ASSY, TAIL GATE, RH

main66280-95011iLH11,RH11197702-198211

sub66280-25020

main66280-95012iRH25197912-198009

main66280-95014iRH25198009-198211

sub66280-95016

66290CHAIN ASSY, TAIL GATE, LH

main66280-95011iLH11,RH11197702-198211

sub66280-25020

main66280-95012iRH25197912-198009

main66280-95014iRH25198009-198211

sub66280-95016

66411BRACKET, GUARD FRAME, RH

main66411-95018iLH11,RH11..T1,TW197702-198211

main66411-95019iLH11,RH11..T3197702-198211

66412BRACKET, GUARD FRAME, LH

main66412-95017iLH11,RH11..T1,TW197702-198211

main66412-95018iLH11,RH11..T3197702-198211

9015180024

main90151-80024

9017908123

main90179-08123

9111140820

main91111-40820

9152140816

main91521-40816

9327018014

main93270-18014

9327018016

main93270-18016

9331118016

main93311-18016

9411040800

main94110-40800

9411041300

main94110-41300

9412041300

main94120-41300

9451100800

main94511-00800

9461111300

main94611-11300

9461210800

main94612-10800

9461211300

main94612-11300

28 parts on this diagram · 2 diagrams in section
