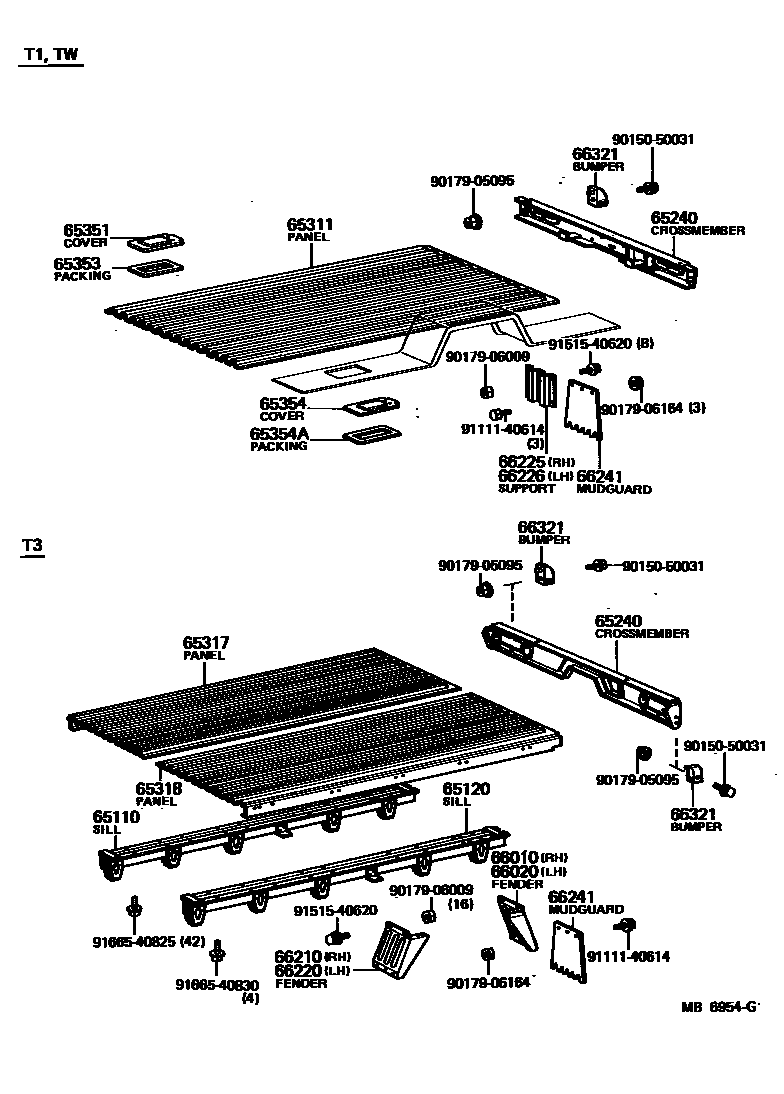

REAR BODY FLOOR & FENDER

0001 1 0002 1

65110SILL ASSY, MAIN, RH

main65110-95A00iRH11..T3197702-197711

sub65120-95A00

main65120-95A00iLH11,RH11..T3197711-198211

main65120-95A02iRH25197912-198211

65120SILL ASSY, MAIN, LH

main65120-95A00iLH11,RH11..T3197702-198211

main65120-95A02iRH25197912-198211

65240CROSSMEMBER, REAR BODY FLOOR, TAIL

main65204-95011iLH11,RH11..T3197702-198211

main65240-95030iRH25197912-198009

main65240-95034iRH25198009-198110

main65240-95039iRH25198110-198211

main65240-95A00iLH11,RH11..T1,TW197702-198211

65311PANEL, FLOOR, CENTER

main65311-95010iLH11,RH11..T1197702-197912

main65311-95A01iRH11..06S197702-198211

main65311-95A03iLH11,RH11..T1197912-198211

65317PANEL, FLOOR SIDE, RH

main65317-95025iRH25197912-198211

main65317-95A00iLH11,RH11..T3197702-198211

65318PANEL, FLOOR SIDE, LH

main65318-95024iRH25197912-198211

main65318-95A00iLH11,RH11..T3197702-197912

65351COVER, BATTERY SERVICE HOLE

main65305-95A01iLH11,RH11..T1197912-198211

main65350-95010iLH11,RH11..T1197702-197912

sub65305-95010

sub65352-95010

65353PACKING, BATTERY SERVICE HOLE COVER

main65352-95010iLH11,RH11..T1197702-197912

sub65307-95A00

main65352-95400iLH11,RH11..T1197912-198005

sub65307-95A01

main65352-95A01iLH11,RH11..T1198005-198211

65354COVER, FUEL TANK SERVICE HOLE

main65350-95010iLH11,RH11..T1197702-198211

sub65305-95010

sub65352-95010

65354APACKING, FUEL TANK SERVICE HOLE COVER

main65352-95010iLH11,RH11..T1197702-198005

sub65307-95A00

main65352-95A00iLH11,RH11..T1198005-198211

66010FENDER ASSY, REAR BODY, REAR RH

main66210-95A01iRH25197912-198211

main66233-95011iLH11,RH11..T3197702-198211

66020FENDER ASSY, REAR BODY, REAR LH

main66220-95A01iRH25197912-198211

main66234-95011iLH11,RH11..T3197702-198211

66210FENDER ASSY, REAR BODY, FRONT RH

main66010-95A01iRH25197912-198211

main66231-95011iLH11,RH11..T3197702-198211

66220FENDER ASSY, REAR BODY, FRONT LH

main66020-95A01iRH25197912-198211

main66232-95011iLH11,RH11..T3197702-198211

66225SUPPORT, REAR MUDGUARD, RH

main66225-95011iLH11,RH11..T1,TW197702-198211

66226SUPPORT, REAR MUDGUARD, LH

main66225-95011iLH11,RH11..T1,TW197702-198211

66241MUDGUARD, REAR

main66241-95600iLH11,RH11,25197702-198211

66321BUMPER, GATE RUBBER

main66321-95010iLH11,RH11..T3197702-198211

RR

main66321-95012iRH25197702-198211

SIDE

main66321-95013iLH11,RH11..T1,TW197904-198211

main66321-95015iRH25197912-198009

RR

sub66331-95010

main66331-95010iRH25197901-198211

SIDE

main66331-95011iRH25198009-198211

RR

9015050031

main90150-50031

9017905095

main90179-05095

9017906009

main90179-06009

9017906164

main90179-06164

9111140614

main91111-40614

9151540620

main91515-40620

9166540825

main91665-40825

9166540830

main91665-40830

26 parts on this diagram · 2 diagrams in section
