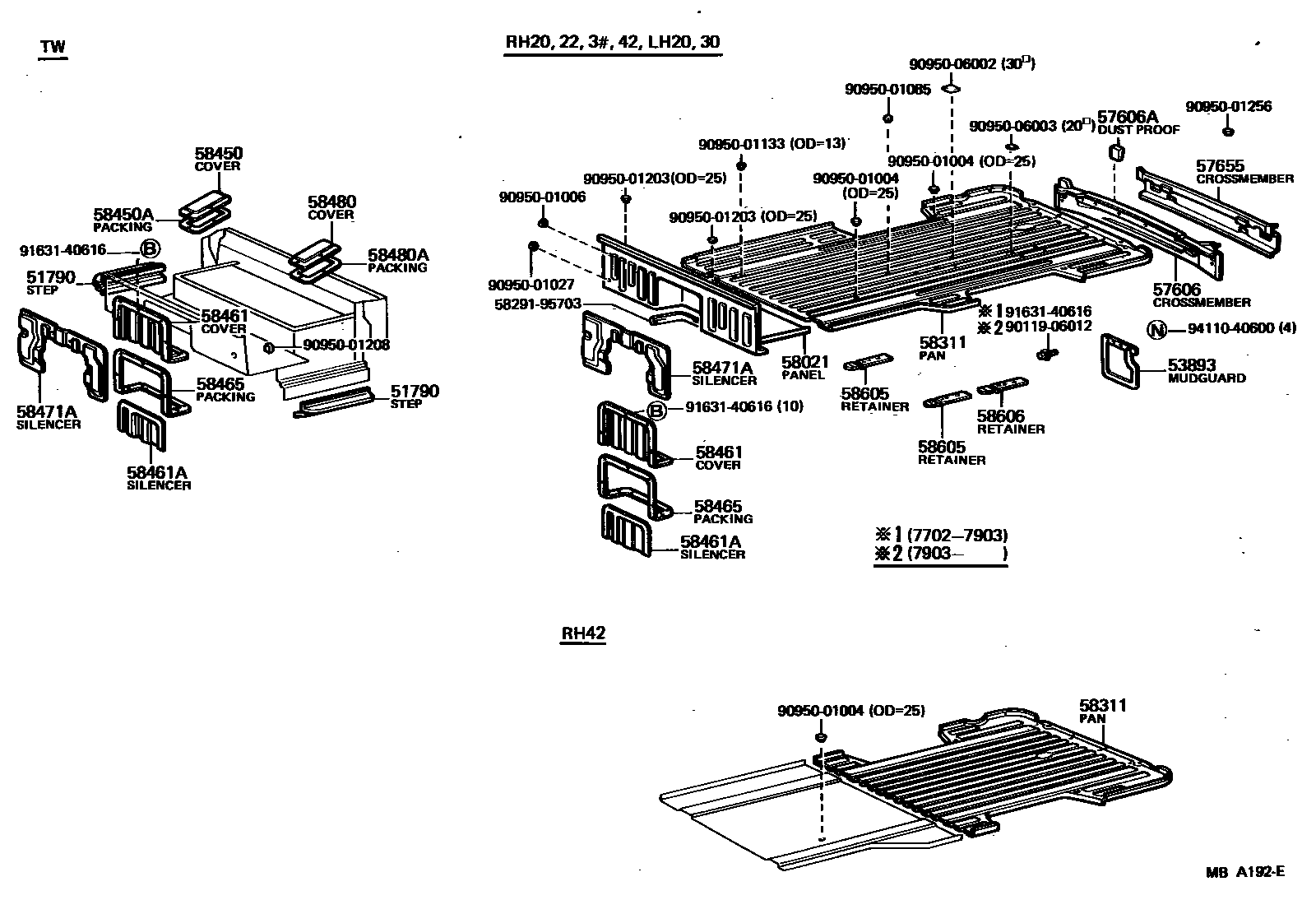

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1 0003 1

51790STEP ASSY, REAR FLOOR

main58303-95A00iRH2#..RHD..V5D197702-197709

RH

sub58303-95A01

main58303-95A01iRH20,22,3#..RHD..V5D197702-198012

RH

sub58303-95A07

main58303-95A02iLH30,RH20,22,3#..LHD..BUS197702-198012

RH

sub58303-95A08

main58303-95A04iRH3#..V5D197702-197709

RH

sub58303-95A01

main58303-95A05iRH11..06S197702-198211

main58303-95A06iLH20,30..LHD..V197901-198012

COLD SPEC

sub58303-95A01

sub90179-08123

main58303-95A07iRH20,22,32..RHD..V5D198012-198211

RH

main58303-95A08iLH20,30,RH20,22,3#..LHD..(BUS,WG)198012-198211

RH

main58304-90701iRH42197702-197709

sub58320-90700

main58304-90702iRH42197709-197710

sub58320-90702

main58304-95A00iRH2#..RHD..V197702-198012

LH

sub58304-95A09

main58304-95A02iRH2#..RHD..(09S,12S)197702-197709

LH

sub58304-95A06

main58304-95A03iRH3#..RHD..V197702-197709

LH

sub58304-95A00

main58304-95A05iRH3#..BUS197702-197709

LH

sub58304-95A06

main58304-95A06iLH20,30,RH20,22,3#..RHD..(BUS,WG)197709-198012

LH

sub58304-95A10

main58304-95A09iLH20,30,RH20,22,3#..LHD..V5D198012-198211

LH

main58304-95A10iLH20,30,RH20,22,3#..RHD..(BUS,WG)198012-198211

LH

main58320-90700iRH42197710-198012

sub58320-90703

main58320-90703iRH42198012-198211

53893MUDGUARD, REAR

main53883-95A00iLH20,30,RH20,22,3#,42197702-198211

RH

main53884-95A00iLH20,30,RH20,22,3#,42197702-198211

LH

57606CROSSMEMBER SUB-ASSY, REAR FLOOR REAR, INNER

main57607-95A00iLH20,30,RH20,22,3#,42197702-198211

sub57607-95A02

57606ADUST PROOF(FOR REAR CROSSMEMBER)

main57614-95A00iLH20,30,RH20,22,3#,42..ARL,GEN,SA197702-198211

CYCLONE TYPE AIR CLEANER

57655MEMBER, REAR FLOOR CROSS, NO.5

main57708-95A00iLH20,30,RH2#,3#,42197702-197912

main57708-95A01iRH20..LHD197803-197912

WEST GERMANY SPEC

main57708-95A02iLH20,30,RH20,22,3#,42197912-198211

sub57708-95A03

main57708-95A03iLH30,RH20,32..LHD197912-198211

WEST GERMANY SPEC

58021PANEL SUB-ASSY, HEADER

main58021-95A05iRH20,32..LHD..V4D..03S198012-198211

main58021-95A24iRH20..LHD..V4D..03S..EUR198012-198211

NORWAY SPEC

main58021-95A25iRH20..V5D..03S..EUR198012-198211

NORWAY SPEC

main58021-95A29iRH20,22,30..RHD..V4D..03S;RH32..RHD..V4D..03S..(ARL,EUR)198012-198211

sub58021-95A60

sub90530-06001

main58021-95A34iRH20,22,3#..V5D198012-198211

main58021-95A49iRH20,22,3#..RHD..(BUS,WG)198012-198211

main58021-95A51iLH20,30..V5D198012-198211

main58021-95A52iLH20,30..RHD198012-198211

main58021-95A53iLH20,30..LHD..V4D..03S198012-198211

main58021-95A57iLH20..V5D..03S..EUR198012-198211

NORWAY SPEC

main58021-95A60iRH20,22,3#..V4D..06S198012-198211

58311PAN, REAR FLOOR

main58311-90703iRH42197702-197905

main58311-90705iRH42197905-198211

sub58311-90704

main58311-95A00iLH20,RH20,22..RHD..V4D197702-198211

main58311-95A01iLH30..V5D197901-198211

COLD SPEC

main58311-95A01iLH20,RH20,22..V5D197702-198211

main58311-95A02iLH20,RH20,22..LHD..V4D197702-198211

main58311-95A02iLH20..V5D197901-198211

COLD SPEC

main58311-95A05iRH3#..V5D..03S197702-198211

sub58311-95A19

sub90950-01133

main58311-95A07iRH3#..LHD..06S197702-197705

sub58311-95A19

sub90950-01133

main58311-95A18iLH30,RH3#..RHD..V4D..03S197702-198211

main58311-95A19iLH20..LHD..V4D197901-198211

COLD SPEC

main58311-95A19iRH3#..RHD..V5D197702-198211

main58311-95A28iRH22..SA197903-198012

main58311-95A29iLH30,RH3#..LHD..BUS197912-198211

main58311-95A30iLH30,RH32..LHD..V4D197912-198211

main58311-95A33iRH20..09S..EUR198102-198211

58450COVER ASSY, BATTERY SERVICE HOLE

main58201-95A02iRH11..06S197702-198211

58450APACKING, BATTERY SERVICE HOLE COVER

main58445-95A05iRH11..06S198005-198211

sub65352-95A00

main58483-95011iRH11..06S197702-198005

sub58445-95A05

58461COVER, TRANSMISSION SERVICE HOLE

main58406-95A00iRH20,22,3#,42197702-198012

sub58406-95A04

sub58468-95A03

main58406-95A02iLH20,30197901-198012

sub58406-95A04

sub58468-95A03

main58406-95A04iLH20,30,RH20,22,3#,42198012-198211

58461ASILENCER, TRANSMISSION SERVICE HOLE COVER, NO.1

main58468-95A01iRH20,22,3#,42197702-198012

main58468-95A02iLH20,30197901-198012

main58468-95A03iRH20,22,3#,42198012-198211

main58468-95A04iLH20,30198012-198211

58465PACKING, TRANSMISSION SERVICE HOLE COVER, NO.1

main58465-95A01iLH20,30,RH20,22,3#,42197702-198211

58471ASILENCER, HEADER PANEL

main58469-95A02iRH20,22,3#,42197702-198211

main58469-95A03iRH11..06S197702-198211

main58469-95A05iLH20,30197901-198211

58480COVER ASSY, FUEL TANK SERVICE HOLE

main58201-95A02iRH11..06S197702-198211

58480APACKING, FUEL TANK SERVICE HOLE COVER

main58445-95A05iRH11..06S198005-198211

sub65352-95A00

main58483-95011iRH11..06S197702-198005

sub58445-95A05

58605RETAINER SUB-ASSY, REAR SEAT, NO.1

main58605-95A00iRH20,22..06S197702-198211

main58605-95A03iRH3#..06S197702-198211

main58621-90700iRH42197702-198211

58606RETAINER SUB-ASSY, REAR SEAT, NO.2

main58606-95A00iRH3#..06S197702-198211

main58622-90700iRH42197702-198211

5829195703COVER, POWER TAKE-OFF CONTROL LEVER, NO.1

main58291-95703

9011906012

main90119-06012

9095001004

main90950-01004

9095001006

main90950-01006

9095001027

main90950-01027

9095001085

main90950-01085

9095001133

main90950-01133

9095001203

main90950-01203

9095001208

main90950-01208

9095001256

main90950-01256

9095006002

main90950-06002

9095006003

main90950-06003

9163140616

main91631-40616

9411040600

main94110-40600

31 parts on this diagram · 3 diagrams in section
