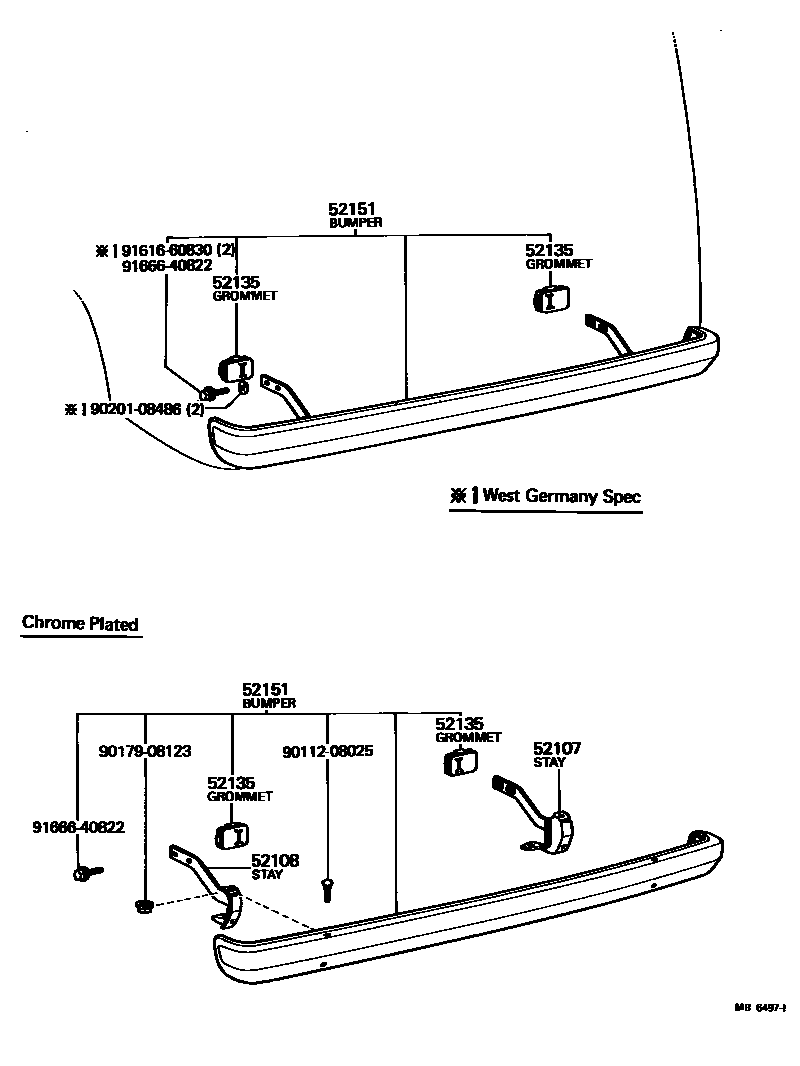

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52107STAY SUB-ASSY, REAR BUMPER, RH

main52150-95A03iRH20..LHD..12S..EUR;LH20,30,RH20,22,3#..RHD..(EUR,SA)197710-198004

CHROME PLATED

main52150-95A05iRH20..LHD..12S..EUR;LH20,30,RH20,22,3#..RHD..(EUR,SA)198004-198012

CHROME PLATED

main52150-95A07iRH22..SA198012-198211

CHROME PLATED

52108STAY SUB-ASSY, REAR BUMPER, LH

main52160-95A03iRH20..LHD..12S..EUR;LH20,30,RH20,22,3#..RHD..(EUR,SA)197710-198004

CHROME PLATED

main52160-95A05iRH20..LHD..12S..EUR;LH20,30,RH20,22,3#..RHD..(EUR,SA)198004-198012

CHROME PLATED

main52160-95A07iRH22..SA198012-198211

CHROME PLATED

52135GROMMET, REAR BUMPER STAY

main52191-95A00×2iLH20,30,RH20,22,3#,42197702-198211

52151BUMPER ASSY, REAR

main52102-29065iLH20,30,RH20,3#..EUR197912-198004

main52102-29066iLH20,30,RH20,3#..EUR198004-198012

sub52102-95A07

main52102-29075iLH20,30,RH20,22,3#,42..ARL,GEN198004-198012

sub52102-95A05

main52102-29105iLH20,30,RH20,22,3#,42..BUS,V198012-198211

sub52102-95A11

main52102-95A90iRH2#,3#,42..BUS,V197702-197710

main52102-95A91iLH20,30,RH20,22,3#,42..ARL,GEN197912-198004

main52151-29395iRH20..LHD..12S..EUR;LH20,30,RH20,22,3#..RHD..(EUR,SA)198004-198012

CHROME PLATED

sub52151-95A04

main52151-29465iRH22..SA198012-198211

CHROME PLATED

sub52151-95A06

main52151-95A91iRH2#,3#,42197702-197710

CHROME PLATED

main52151-95A92iRH20..LHD..12S..EUR;LH20,30,RH20,22,3#..RHD..(EUR,SA)197710-198004

CHROME PLATED

9011208025

main90112-08025

9017908123

main90179-08123

9020108486

main90201-08486

9161660830

main91616-60830

9166640822

main91666-40822

9 parts on this diagram · 2 diagrams in section
