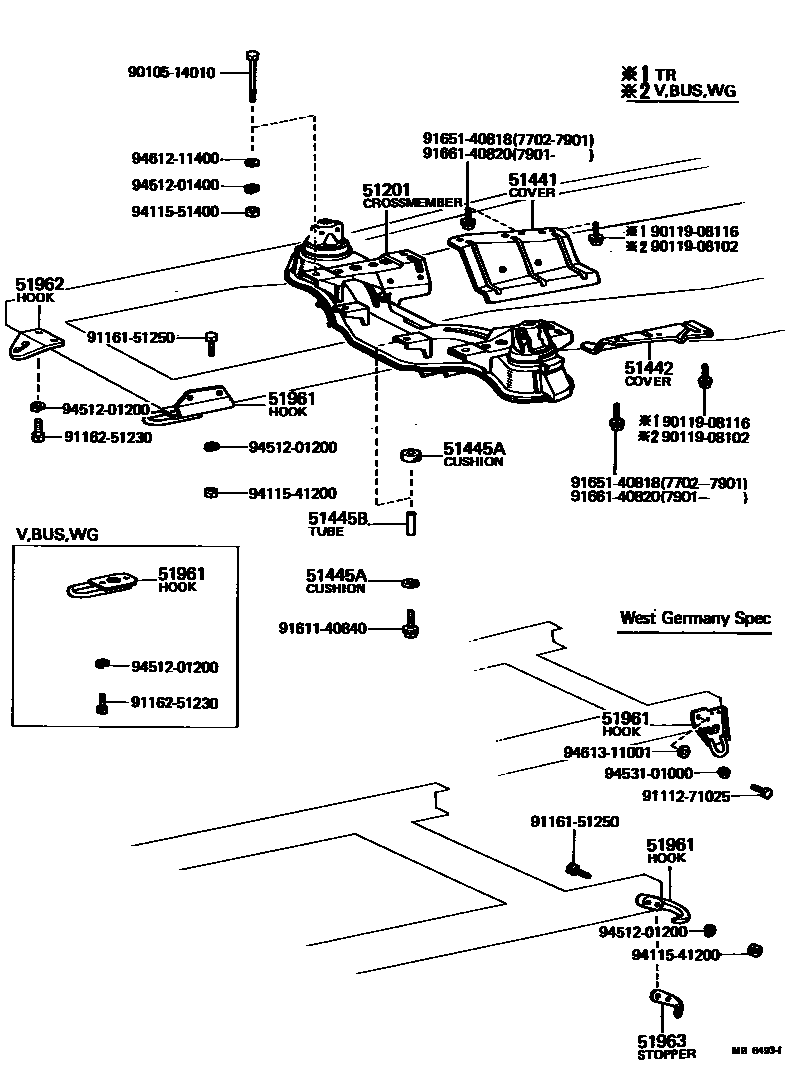

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51203-26030iRH11,20,30197702-198108

sub51203-26031

main51203-26031iRH11,20,30198108-198211

sub51203-26080

main51203-26040iRH22,32,42197702-197912

sub51203-26041

sub16572-36031

sub16577-36012

main51203-26041iRH22,25,32,42197912-198108

sub51203-26042

main51203-26042iRH22,25,32,42198108-198211

main51203-26050iLH11,20,30197901-198108

sub51203-26051

main51203-26051iLH11,20,30198108-198211

sub51203-26090

51441COVER, ENGINE UNDER, NO.1

main51441-26011iRH11197702-197901

main51441-26012iLH11,RH11,25197901-198211

main51441-26020iRH20,30197702-198211

main51441-26030iLH20,30,RH22,32,42197702-198211

51442COVER, ENGINE UNDER, NO.2

main51442-26020iRH20,30197702-198211

main51442-26030iLH20,30,RH22,32,42197702-198211

51445ACUSHION(FOR ENGINE UNDER COVER BRACKET)

main90540-10011iLH11,20,30,RH11,2#,3#,42197702-198211

OD=28,T=14.5

main90540-10022iLH11,20,30,RH11,2#,3#,42197702-198211

OD=22,T=6

51445BTUBE(FOR ENGINE UNDER COVER BRACKET)

main90440-11042iLH11,20,30,RH11,2#,3#,42197702-198211

51961HOOK, NO.1

main51095-26011iLH30,RH20,32..V5D..EUR197803-198211

WEST GERMANY SPEC

main51961-26010iLH11,RH11..RHD197702-198012

FR

sub51961-26060

main51961-26020iLH11,RH11,25..LHD197702-198012

FR

sub51961-26070

main51961-26030iLH20,30,RH20,22,3#,42197702-198012

main51961-26050iLH20,30,RH20,22,3#,42198012-198211

main51961-26060iLH11,RH11..RHD198012-198211

FR

main51961-26070iLH11,RH11,25..LHD198012-198211

FR

sub51961-26071

main51961-60010iLH11,RH11,25197702-198211

RR

51962HOOK, NO.2

main51963-26030iLH20,30,RH20,22,3#,42197702-198211

51963STOPPER, HOOK WIRE

main51963-35010iRH11..LHD..EUR..IV197803-198211

WEST GERMANY SPEC

sub51963-35080

9010514010

main90105-14010

9011908102

main90119-08102

9011908116

main90119-08116

9111271025

main91112-71025

9116151250

main91161-51250

9116251230

main91162-51230

9161140840

main91611-40840

9165140818

main91651-40818

9166140820

main91661-40820

9411541200

main94115-41200

9411551400

main94115-51400

9451201200

main94512-01200

9451201400

main94512-01400

9453101000

main94531-01000

9461211400

main94612-11400

9461311001

main94613-11001

24 parts on this diagram · 2 diagrams in section
