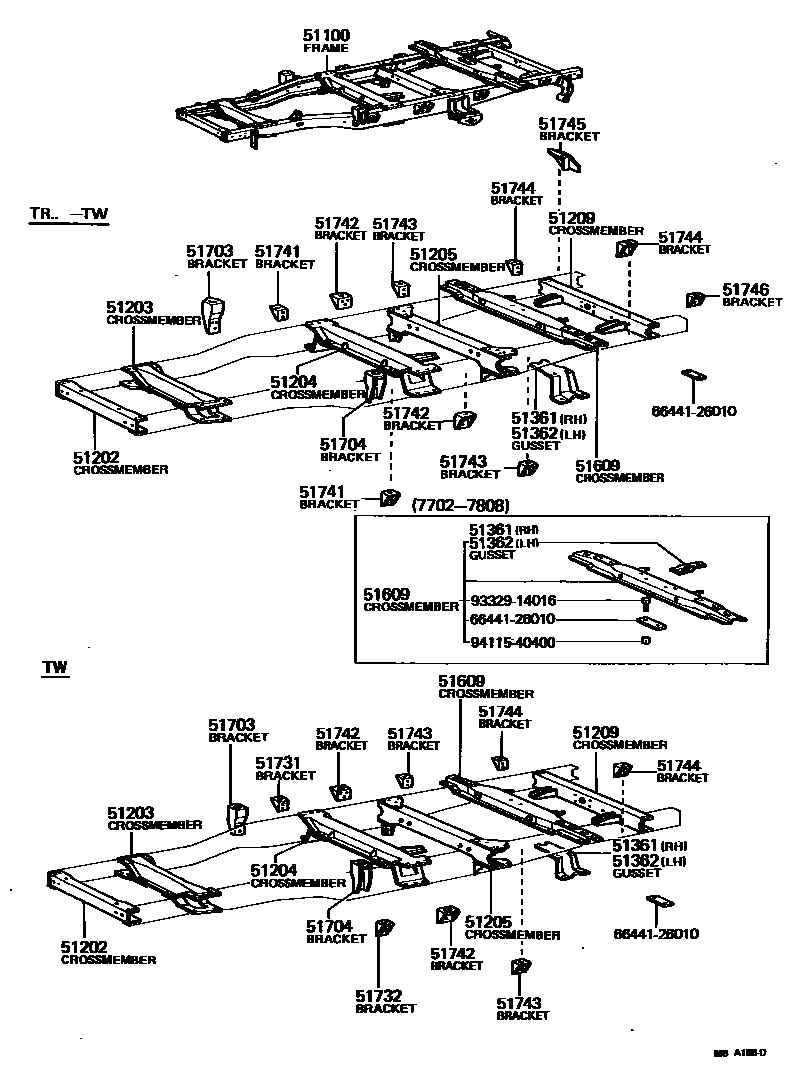

FRAME
51100FRAME ASSY
WEST GERMANY SPEC
51202CROSSMEMBER SUB-ASSY, FRAME, NO.1
51203CROSSMEMBER SUB-ASSY, FRAME, NO.2
51204CROSSMEMBER SUB-ASSY, FRAME, NO.3
51205CROSSMEMBER SUB-ASSY, FRAME, NO.4
51209CROSSMEMBER SUB-ASSY, FRAME, NO.8
51361GUSSET, CROSSMEMBER, NO.6 RH
51362GUSSET, CROSSMEMBER, NO.6 LH
51609CROSSMEMBER SUB-ASSY, REAR SHOCK ABSORBER SUPPORT
51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51731BRACKET, CAB REAR MOUNTING, RH
51732BRACKET, CAB REAR MOUNTING, LH
51741BRACKET, REAR BODY MOUNTING, NO.1
51742BRACKET, BODY MOUNTING, NO.2
51743BRACKET, BODY MOUNTING, NO.3
51744BRACKET, BODY MOUNTING, NO.4
51745BRACKET, BODY MOUNTING, NO.5
51746BRACKET, BODY MOUNTING, NO.6
6644126010SHIM, MOUNTING, NO.1
main66441-26010
9332914016
main93329-14016
9411540400
main94115-40400
22 parts on this diagram · 4 diagrams in section
