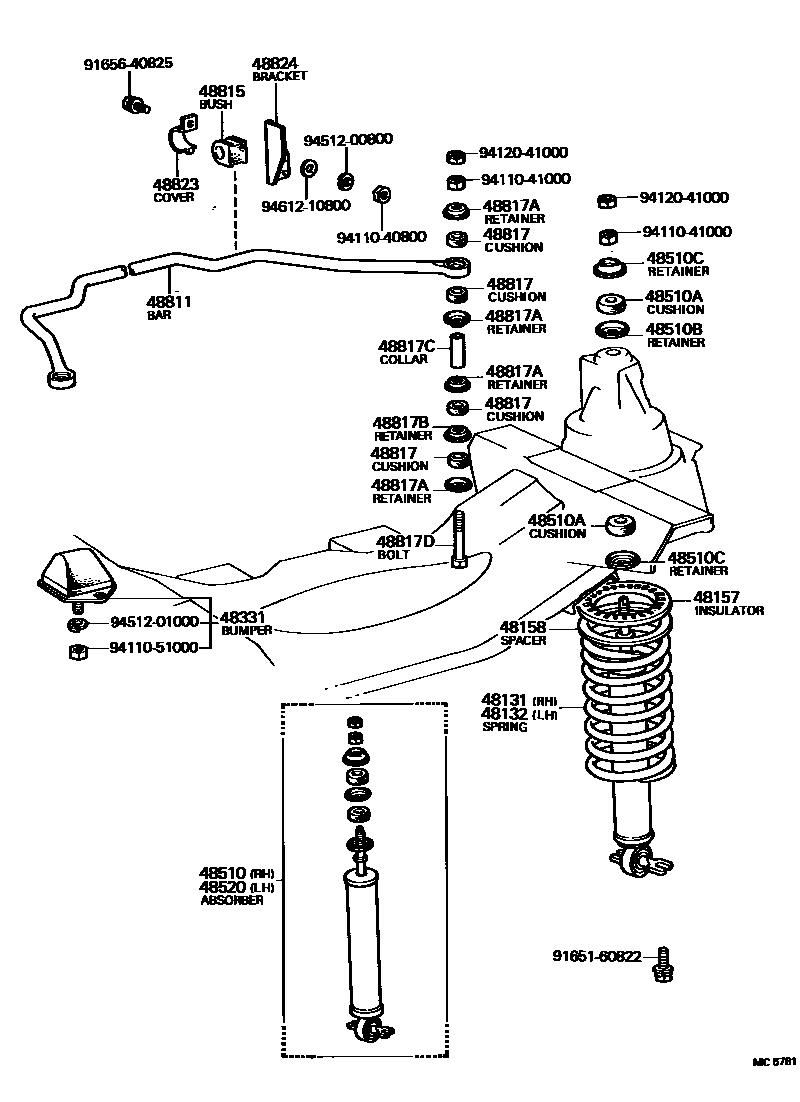

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1 0005 1

48131SPRING, FRONT COIL, RH

main48131-26030iRH11,2#,3#,42197702-198211

main48131-26050iLH11,20,30197901-198211

48132SPRING, FRONT COIL, LH

main48131-26030iRH11,2#,3#,42197702-198211

main48131-26050iLH11,20,30197901-198211

48157INSULATOR, FRONT COIL SPRING, UPPER

main48157-26010iLH11,20,30,RH11,2#,3#,42197702-198211

48158SPACER, FRONT COIL SPRING

main90560-99248iLH11,20,30,RH11,2#,3#,42197702-198211

48331BUMPER, FRONT SPRING, NO.1

main48304-29015iLH11,20,30,RH11,2#,3#,42197702-198211

48510ABSORBER ASSY, SHOCK, FRONT RH

main48511-29015iLH11,20,30,RH11,2#,3#,42197702-198211

sub48511-29016

48510ACUSHION, FRONT SHOCK ABSORBER

main90948-01003iLH11,20,30,RH11,2#,3#,42197702-198211

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02007iLH11,20,30,RH11,2#,3#,42197702-198211

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02002iLH11,20,30,RH11,2#,3#,42197702-198211

48520ABSORBER ASSY, SHOCK, FRONT LH

main48511-29015iLH11,20,30,RH11,2#,3#,42197702-198211

sub48511-29016

48811BAR, STABILIZER, FRONT

main48811-26012iLH11,20,30,RH11,20,22,3#,42..ARL,GEN,IDN,SA197702-198211

OD=19

main48811-26020iLH11,20,30,RH11,20,25,3#..EUR198102-198211

OD=21

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-20030iLH11,20,30,RH11,20,22,3#,42..ARL,GEN,IDN,SA197702-198211

OD=19

main48815-20060iLH11,20,30,RH11,20,25,3#..EUR198102-198211

OD=21

48817CUSHION, FRONT STABILIZER

main90948-01002iLH11,20,30,RH11,2#,3#,42197702-198211

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02004iLH11,20,30,RH11,2#,3#,42197702-198211

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02005iLH11,20,30,RH11,2#,3#,42197702-198211

48817CCOLLAR(FOR STABILIZER BAR)

main90440-14055iLH11,20,30,RH11,2#,3#,42197702-198211

48817DBOLT(FOR FRONT STABILIZER)

main90101-10259iLH11,20,30,RH11,2#,3#,42197702-198211

48823COVER, STABILIZER LINK(FOR FRONT)

main48823-27010iLH11,20,30,RH11,2#,3#,42197702-198211

48824BRACKET, STABILIZER, FRONT

main48824-26012iLH11,RH11,20,22,3#,42197702-198211

RH

main48829-26012iLH11,RH11,20,22,3#,42197702-198211

LH

9165160822

main91651-60822

9165640825

main91656-40825

9411040800

main94110-40800

9411041000

main94110-41000

9411051000

main94110-51000

9412041000

main94120-41000

9451200800

main94512-00800

9451201000

main94512-01000

9461210800

main94612-10800

28 parts on this diagram · 3 diagrams in section
