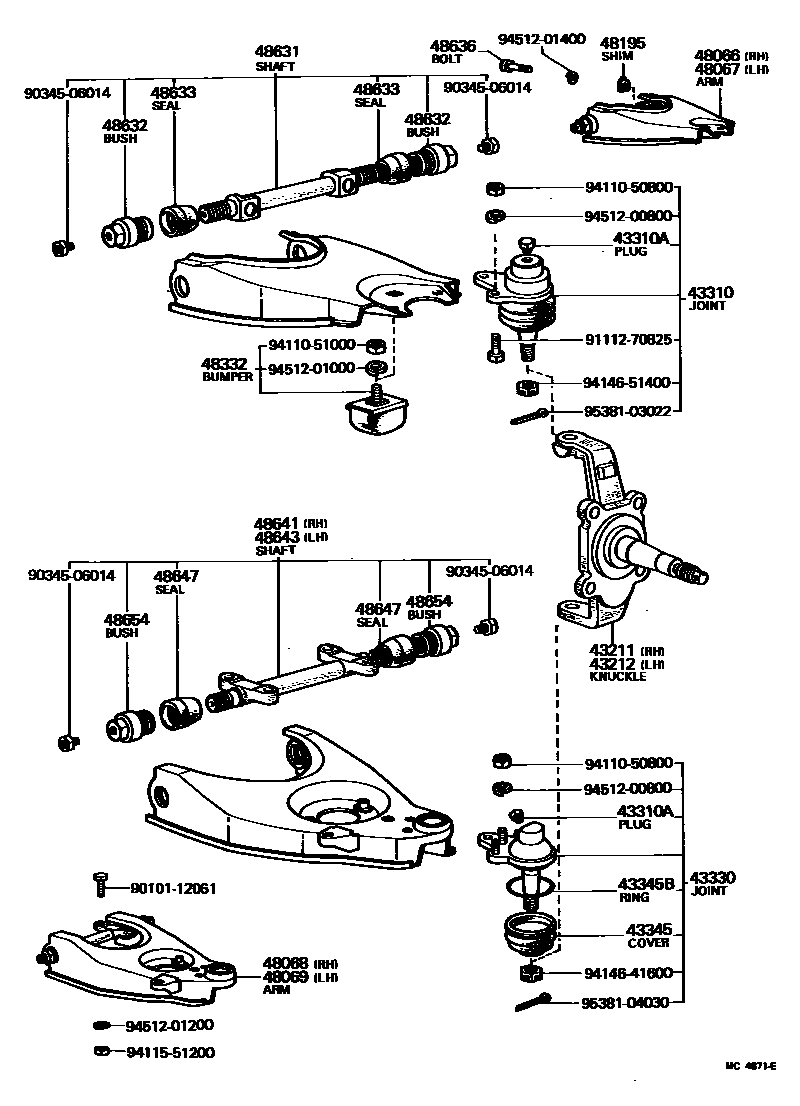

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-26020iLH11,20,30,RH11,20,22,3#,42..BUS,TR,V197702-198211

FR DRUM BRAKE

main43211-26030iLH11,20..LHD..(03S,06S)..GEN198107-198211

FR DISC BRAKE,PORTUGAL SPEC

main43211-26030iLH11,20,30,RH11,2#,3#,42..ARL,EUR197702-198211

FR DISC BRAKE

43212KNUCKLE, STEERING, LH

main43211-26020iLH11,20,30,RH11,20,22,3#,42..BUS,TR,V197702-198211

FR DRUM BRAKE

main43212-26010iLH11,20,30,RH11,20,25,3#..EUR197702-198211

FR DISC BRAKE

main43212-26010iLH11,20..LHD..(03S,06S)..GEN198107-198211

FR DISK BRAKE,PORTUGAL SPEC

43310JOINT ASSY, UPPER BALL

main43350-29025iLH11,20,30,RH11,2#,3#,42197910-198211

RH

sub43350-29026

sub91112-70825

sub94110-50800

sub94512-00800

main43360-29025iLH11,20,30,RH11,2#,3#,42197702-197910

sub43350-29026

sub91112-70825

sub94110-50800

sub94512-00800

main43360-29025iLH11,20,30,RH11,2#,3#,42197910-198211

LH

sub43350-29026

sub91112-70825

sub94110-50800

sub94512-00800

43310APLUG (FOR BALL JOINT)

main90345-06014iLH11,20,30,RH11,2#,3#,42197702-198211

43330JOINT ASSY, LOWER BALL, FRONT

main43330-39045iLH11,20,30,RH11,2#,3#,42197702-198211

RH

main43340-39075iLH11,20,30,RH11,2#,3#,42197702-198211

LH

sub43330-39045

43345COVER, LOWER BALL JOINT DUST

main43345-35010iLH11,20,30,RH11,2#,3#,42197702-198211

43345BRING, SET (FOR LOWER BALL JOINT DUST COVER)

main90522-58039iLH11,20,30,RH11,2#,3#,42197702-198211

sub90580-09002

48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH

main48066-26010iLH11,20,30,RH11,2#,3#,42197702-198211

48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH

main48067-26010iLH11,20,30,RH11,2#,3#,42197702-198211

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-26011iLH11,20,30,RH11,2#,3#,42197702-198211

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-26011iLH11,20,30,RH11,2#,3#,42197702-198211

48195SHIM, CAMBER ADJUST

main90565-15001iLH11,20,30,RH11,2#,3#,42198012-198211

T=4.5

main90565-15002iLH11,20,30,RH11,2#,3#,42..ARL,EUR198202-198211

FR DISC BRAKE,T=2.3

main90565-15016iLH11,20,30,RH11,2#,3#,42197702-198211

T=1.6,T=1.6

main90565-15017iLH11,20,30,RH11,2#,3#,42197702-198211

T=1.0,T=1.0

main90565-15018iLH11,20,30,RH11,2#,3#,42197702-198211

T=2.0,T=2.0

48332BUMPER, FRONT SPRING, NO.2

main48305-29016iLH11,20,30,RH11,2#,3#,42197702-198211

48631SHAFT, FRONT SUSPENSION UPPER ARM

main04485-26020iLH11,20,30,RH11,2#,3#,42197702-198211

48632BUSH, UPPER ARM

main48632-30012iLH11,20,30,RH11,2#,3#,42197702-198211

48633SEAL, UPPER ARM PIVOT DUST

main48633-35010iLH11,20,30,RH11,2#,3#,42197702-198211

48636BOLT, UPPER ARM SET

main91112-71455iLH11,20,30,RH11,2#,3#,42197702-198202

L=55

sub91112-81455

main91112-71460iLH11,20,30,RH11,2#,3#,42198202-198211

L=60

sub91112-81460

48641SHAFT, LOWER ARM, RH

main04486-26010iLH11,20,30,RH11,2#,3#,42197702-198211

48643SHAFT, LOWER ARM, LH

main04486-26010iLH11,20,30,RH11,2#,3#,42197702-198211

48647SEAL, LOWER ARM BUSH DUST

main48645-35010iLH11,20,30,RH11,2#,3#,42197702-198211

48654BUSH, LOWER ARM

main48632-30012iLH11,20,30,RH11,2#,3#,42197702-198211

9010112061

main90101-12061

9034506014

main90345-06014

9111270825

main91112-70825

9411050800

main94110-50800

9411051000

main94110-51000

9411551200

main94115-51200

9414641600

main94146-41600

9414651400

main94146-51400

9451200800

main94512-00800

9451201000

main94512-01000

9451201200

main94512-01200

9451201400

main94512-01400

9538103022

main95381-03022

9538104030

main95381-04030

35 parts on this diagram · 1 diagram in section
