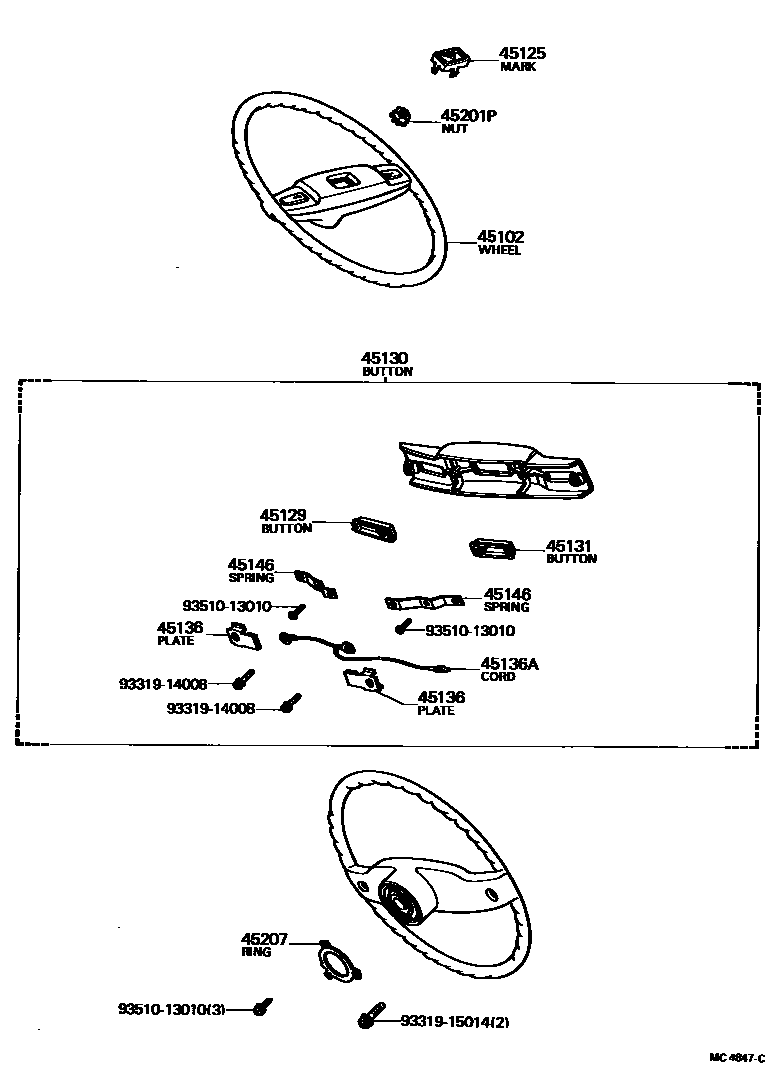

STEERING WHEEL

0001 1 0002 1

45102WHEEL SUB-ASSY, STEERING

main45100-26020-05iLH11,20,30,RH11,2#,3#,42197702-197912

BEIGE,BEIGE

sub45100-26020

main45100-26020-06iLH11,20,30,RH11,2#,3#,42197912-198211

BROWN,BROWN

sub45100-26020

main45100-26050iLH11,20,30,RH11,20,25,3#..EUR198012-198211

URETHANE

45125MARK, STEERING WHEEL PAD

main45125-26010iLH11,20,30,RH11,2#,3#..TR,V197702-198211

main45125-26020iLH20,30,RH20,22,3#,42..BUS,WG197702-198012

main45125-26030iLH11,20,30,RH11,20,25,3#..EUR198012-198211

URETHANE

45129BUTTON, HORN, NO.2

main45131-14050iLH11,20,30,RH11,20,25,3#..EUR198012-198211

URETHANE

main45131-26020iLH11,20,30,RH11,2#,3#,42197702-198211

45130BUTTON ASSY, HORN

main45130-26020-05iLH11,20,30,RH11,2#,3#,42197702-197912

BEIGE,BEIGE

sub45130-26020

main45130-26020-06iLH11,20,30,RH11,2#,3#,42197912-198211

BROWN,BROWN

sub45130-26020

main45130-26030iLH11,20,30,RH11,20,25,3#..EUR198012-198211

URETHANE

45131BUTTON, HORN, NO.1

main45131-14050iLH11,20,30,RH11,20,25,3#..EUR198012-198211

URETHANE

main45131-26020iLH11,20,30,RH11,2#,3#,42197702-198211

45136PLATE, HORN BUTTON CONTACT

main45136-14040iLH11,20,30,RH11,20,25,3#..EUR198012-198211

URETHANE

main45136-26020iLH11,20,30,RH11,2#,3#,42197702-198211

45136ACORD(FOR HORN CONTACT RING)

main90945-02013iLH11,20,30,RH11,2#,3#,42197702-198211

main90945-02046iLH11,20,30,RH11,20,25,3#..EUR198012-198211

URETHANE

45146SPRING, HORN BUTTON CONTACT

main45146-14040iLH11,20,30,RH11,20,25,3#..EUR198012-198211

URETHANE

main45146-26010iLH11,20,30,RH11,2#,3#,42197702-198211

45201PNUT, STEERING WHEEL SET

main90179-12086iLH11,20,30,RH11,2#,3#,42197702-198211

45207RING, HORN CONTACT

main45176-20030iLH11,20,30,RH11,20,25,3#..EUR198012-198211

URETHANE

main45176-22020iLH11,20,30,RH11,2#,3#,42197702-198211

sub45176-20030

9331914008

main93319-14008

9331915014

main93319-15014

9351013010

main93510-13010

13 parts on this diagram · 2 diagrams in section
