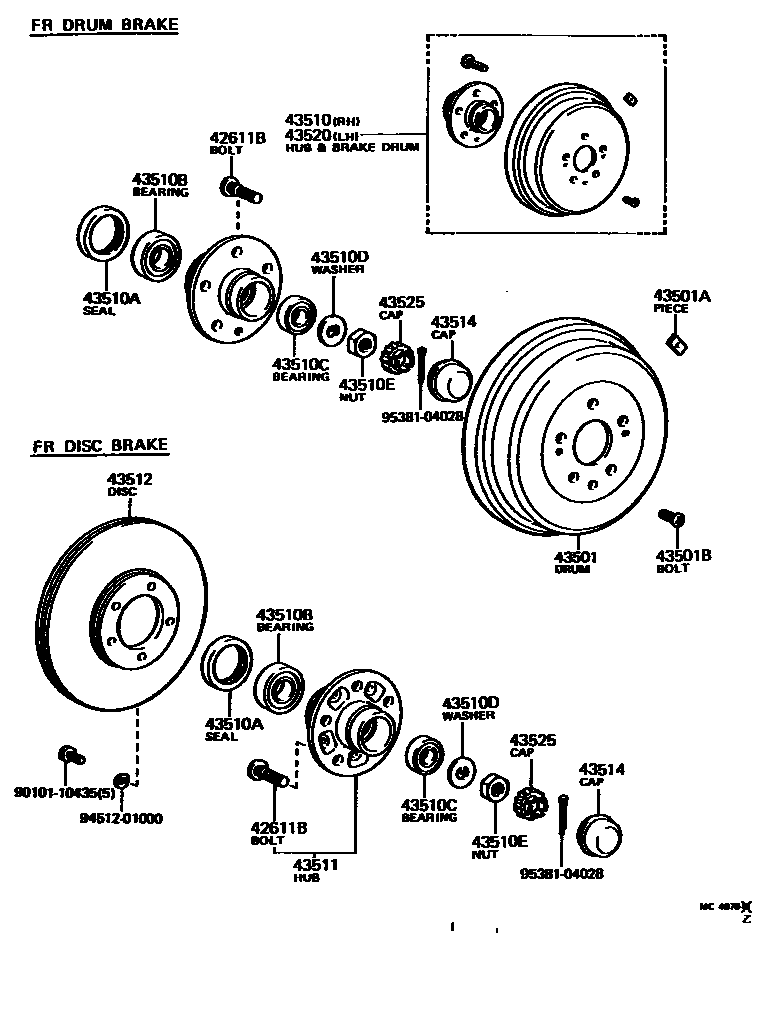

FRONT AXLE HUB

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02035iLH11,20,30,RH11,20,25,3#..EUR197702-198211

FR DISC BRAKE

sub90942-02047

main90942-02035iLH11,20..LHD..(03S,06S)..GEN198107-198211

FR DISC BRAKE,PORTUGAL SPEC

sub90942-02047

main90942-02037iLH11,20,30,RH11,20,22,3#,42..BUS,TR,V197702-198211

FR DRUM BRAKE

sub90942-02049

43501DRUM SUB-ASSY, FRONT BRAKE

main43512-26020iLH11,20,30,RH11,20,22,3#,42..BUS,TR,V197702-198211

43501APIECE, BALANCE (FOR FRONT BRAKE DRUM)

main90937-01100iLH11,20,30,RH11,20,22,3#,42..BUS,TR,V197702-198211

40.5G,40G

main90937-01117iLH11,20,30,RH11,20,22,3#,42..BUS,TR,V197702-198211

10G,10G

main90937-01118iLH11,20,30,RH11,20,22,3#,42..BUS,TR,V197702-198211

20G,20G

main90937-01119iLH11,20,30,RH11,20,22,3#,42..BUS,TR,V197702-198211

30G,30G

main90937-01146iLH11,20,30,RH11,20,22,3#,42..BUS,TR,V197702-198211

25G,50G

43501BBOLT, SET (FOR FRONT BRAKE DRUM SETTING)

main90113-10035iLH11,20,30,RH11,20,22,3#,42..BUS,TR,V197702-198211

43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-26020iLH11,20,30,RH11,20,22,3#,42..BUS,TR,V197702-198210

sub43510-26H00

main43510-26040iLH11,20,30,RH11,20,22,3#,42..BUS,TR,V198210-198211

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-50005iLH11,20,30,RH11,2#,3#,42198210-198211

main90311-50136iLH11,20,30,RH11,2#,3#,42197702-198210

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-34001iLH11,20,30,RH11,2#,3#,42198210-198211

main90368-34039iLH11,20,30,RH11,2#,3#,42197702-198210

sub90368-34001

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-21001iLH11,20,30,RH11,2#,3#,42198210-198211

main90368-21065iLH11,20,30,RH11,2#,3#,42197702-198210

sub90368-21001

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-20007iLH11,20,30,RH11,2#,3#,42197702-198211

43510ENUT (FOR STEERING KNUCKLE)

main90170-19185iLH11,20,30,RH11,2#,3#,42197702-198211

43511HUB, FRONT AXLE

main43502-26010iLH11,20,30,RH11,20,25,3#..EUR197702-198211

DISC BRAKE

sub43502-26H00

main43502-26010iLH11,20..LHD..(03S,06S)..GEN198107-198211

DISC BRAKE,PORTUGAL SPEC

sub43502-26H00

43512DISC, FRONT

main43512-26030iLH11,20,RH11,20,3#..EUR197702-197909

sub43512-26031

main43512-26031iLH11,20,30,RH11,20,25,3#..EUR197909-198211

main43512-26031iLH11,20..LHD..(03S,06S)..GEN198107-198211

PORTUGAL SPEC

43514CAP, FRONT HUB GREASE

main43514-35010iLH11,20,30,RH11,2#,3#,42197702-198211

43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

main43510-26020iLH11,20,30,RH11,20,22,3#,42..BUS,TR,V197702-198211

sub43510-26H00

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-22010iLH11,20,30,RH11,2#,3#,42197702-198211

9010110435

main90101-10435

9451201000

main94512-01000

9538104028

main95381-04028

18 parts on this diagram · 1 diagram in section
