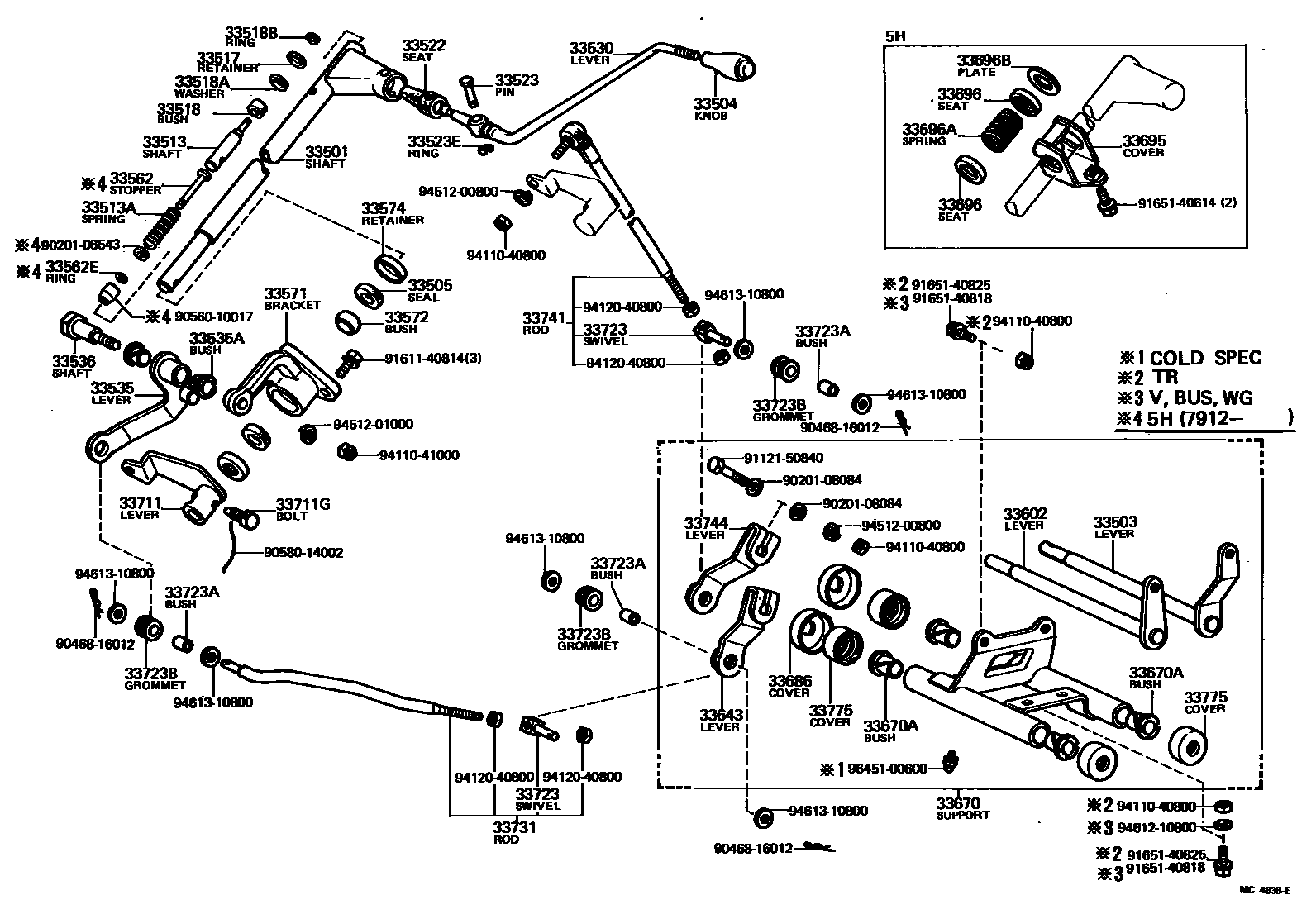

CONTROL SHAFT & CROSSSHAFT

0001 1 0002 1 0003 1 0004 1

33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)

main33501-26040iLH11,20,30,RH11,20,22,3#,42..RHD..4H197702-198211

sub33501-26041

main33501-26050iLH11,20,30,RH11,2#,3#..LHD..4H197702-198211

sub33501-26051

main33501-26060iLH11,20,30..RHD..EUR197912-198211

main33501-26070iLH11,20,30..LHD..EUR197912-198211

33503LEVER SUB-ASSY, SHIFT(FOR COLUMN SHIFT)

main33503-26040iLH11,20,30,RH11,20,22,3#,42..RHD197702-198211

main33503-26050iLH11,20,30,RH11,2#,3#..LHD197702-198211

33504KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT)

main33504-30110iLH11,20,30,RH11,2#,3#,42197702-198211

33505SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT)

main90303-17005iLH11,20,30,RH11,2#,3#,42197702-198211

33513SHAFT, CONTROL SHAFT BRACKET, UPPER

main33513-36011iRH11,2#,3#,42197702-197809

sub33513-36020

main33513-36020iLH11,20,30,RH11,2#,3#,42197809-198211

33513ASPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)

main90501-14395iLH11,20,30,RH11,2#,3#,42197702-198211

33517RETAINER, CONTROL SHAFT UPPER SPRING

main33517-30010iLH11,20,30,RH11,2#,3#,42197702-198211

33518BUSH, UPPER CONTROL SHAFT PIECE

main33518-36010iLH11,20,30,RH11,2#,3#,42197702-198211

sub33518-35010

33518AWASHER, PLATE (FOR UPPER CONTROL SHAFT PIECE BUSH)

main33515-30010iLH11,20,30,RH11,2#,3#,42197702-198211

33518BRING, E (FOR UPPER CONTROL SHAFT PIECE BUSH)

main90523-06019iLH11,20,30,RH11,2#,3#,42197702-198211

33522SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT)

main33522-35010iLH11,20,30,RH11,2#,3#,42197702-198211

33523PIN, SHIFT LEVER (FOR COLUMN SHIFT)

main90249-07001iLH11,20,30,RH11,2#,3#,42197702-198211

33523ERING, E (FOR SHIFT LEVER PIN)

main96160-00500iLH11,20,30,RH11,2#,3#,42197702-198211

33530LEVER ASSY, SHIFT (FOR COLUMN SHIFT)

main33541-26030iLH11,20,30,RH11,20,22,3#,42..RHD197702-198211

main33541-26040iLH11,20,30,RH11,2#,3#..LHD197702-198211

33535LEVER, CONTROL SELECT (FOR COLUMN SHIFT)

main33535-26012iLH11,20,30,RH11,20,22,3#,42..RHD197702-198211

main33535-26020iLH11,20,30,RH11,2#,3#..LHD197702-198211

33535ABUSH (FOR CONTROL SELECT LEVER)

main90386-13007iLH11,20,30,RH11,2#,3#,42197702-198211

33536SHAFT, CONTROL SELECT LEVER (FOR COLUMN SHIFT)

main33536-25010iLH11,20,30,RH11,2#,3#,42197702-198211

33562STOPPER, CONTROL SHAFT UPPER BRACKET SHAFT

main33562-36010iLH11,20,30..EUR197912-198211

33562ERING, E (FOR CONTROL SHAFT UPPER BRACKET SHAFT STOPPER)

main96160-00300iLH11,20,30..EUR197912-198211

33571BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT)

main33571-26012iLH11,20,30,RH11,2#,3#,42197702-198211

33572BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT)

main33572-36010iLH11,20,30,RH11,2#,3#,42197702-198211

33574RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT)

main33574-25010iLH11,20,30,RH11,2#,3#,42197702-198211

33602LEVER SUB-ASSY, SELECT (FOR COLUMN SHIFT)

main33602-26040iLH11,20,30,RH11,20,22,3#,42..RHD197702-198211

main33602-26050iLH11,20,30,RH11,2#,3#..LHD197702-198211

33643LEVER, GEAR SELECTING

main33641-26040iLH11,20,30,RH11,20,22,3#,42..RHD197702-198211

main33641-26050iLH11,20,30,RH11,2#,3#..LHD197702-198211

33670SUPPORT ASSY, CONTROL ROD (FOR COLUMN SHIFT)

main33670-26130iLH11,20,30,RH11,20,22,3#,42..RHD197702-198211

main33670-26140iLH11,20,30,RH11,2#,3#..LHD197702-198211

33670ABUSH (FOR CONTROL ROD SUPPORT)

main90386-15082iLH11,20,30,RH11,20,22,3#,42..RHD197702-198211

33686COVER, CONTROL LEVER DUST (FOR COLUMN SHIFT)

main33686-26010iLH11,20,30,RH11,2#,3#,42197702-198211

33695COVER, SELECTING SPRING (FOR COLUMN SHIFT)

main33695-26010iLH11,20,30..RHD..EUR197912-198211

main33695-26020iLH11,20,30..LHD..EUR197912-198211

33696SEAT, SELECT SPRING

main33696-26010iLH11,20,30..EUR197912-198211

33696ASPRING, COMPRESSION

main90501-26013iLH11,20,30..EUR197912-198211

33696BPLATE, SELECT RETURN

main33255-26010iLH11,20,30..EUR197912-198211

33711LEVER, CONTROL SHAFT (FOR COLUMN SHIFT)

main33527-26030iLH11,20,30,RH11,20,22,3#,42..RHD197702-198211

main33527-26040iLH11,20,30,RH11,2#,3#..LHD197702-198211

sub33527-26050

33711GBOLT, CONTROL SHAFT LEVER LOCK

main33218-35010iLH11,20,30,RH11,2#,3#,42197702-198211

33723SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT)

main33723-10020iLH11,20,30,RH11,2#,3#,42197702-198211

33723ABUSH (FOR COLUMN SHIFT CONTROL SHAFT)

main90389-08005iLH11,20,30,RH11,2#,3#,42197702-198211

33723BGROMMET (FOR COLUMN SHIFT CONTROL SHAFT)

main90480-17177iLH11,20,30,RH11,2#,3#,42197702-198211

33731ROD, GEAR SELECTING, NO.1 (FOR COLUMN SHIFT)

main33720-26012iLH11,20,30,RH11,2#,3#,42197702-198211

33741ROD, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT)

main33710-26040iLH11,20,30,RH11,20,22,3#,42..RHD197702-198211

sub33710-26041

main33710-26050iLH11,20,30,RH11,2#,3#..LHD197702-198211

sub33710-26051

33744LEVER, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT)

main33744-26040iLH11,20,30,RH11,20,22,3#,42..RHD197702-198211

main33744-26050iLH11,20,30,RH11,2#,3#..LHD197702-198211

33775COVER, CROSS SHAFT DUST (FOR COLUMN SHIFT)

main33775-20020iLH11,20,30,RH11,2#,3#..LHD197702-198211

main33775-27011iLH11,20,30,RH11,20,22,3#,42..RHD197702-198211

9020106543

main90201-06543

9020108084

main90201-08084

9046816012

main90468-16012

9056010017

main90560-10017

9058014002

main90580-14002

9112150840

main91121-50840

9161140814

main91611-40814

9165140614

main91651-40614

9165140818

main91651-40818

9165140825

main91651-40825

9411040800

main94110-40800

9411041000

main94110-41000

9412040800

main94120-40800

9451200800

main94512-00800

9451201000

main94512-01000

9461210800

main94612-10800

9461310800

main94613-10800

9645100600

main96451-00600

58 parts on this diagram · 4 diagrams in section
