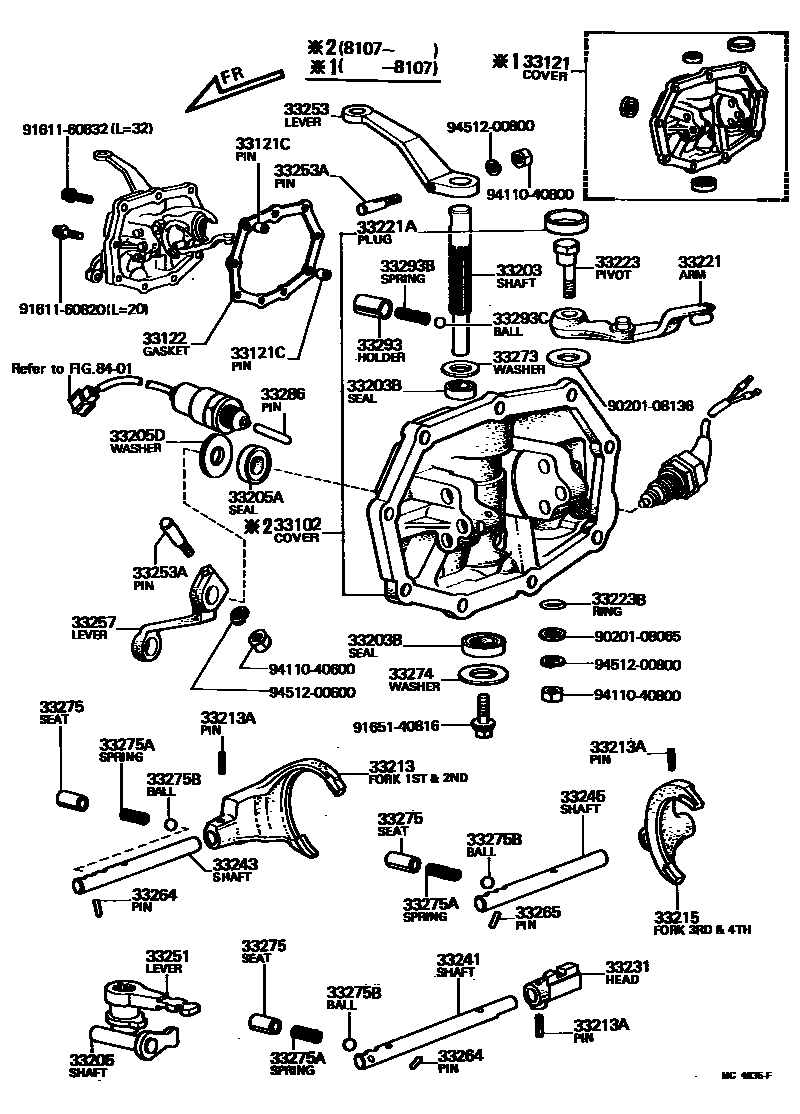

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1 0002 1

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-26010iLH11,20,30,RH22,25,32,42..4H198107-198211

sub33102-35040

main33102-26020iRH11,30..RHD..06S..GEN198107-198211

HONG KONG SPEC

main33102-26020iRH11,30..RHD..06S..GEN198107-198211

NEW SOUTH WALES SPEC

33121COVER, MANUAL TRANSMISSION CASE

main33121-26903iRH20..RHD..(03S,09S)..GEN197804-198107

HONG KONG SPEC

sub33102-26020

main33121-26903iRH11,20,30..EUR197702-198107

NEW SOUTH WALES SPEC

sub33102-26020

main33121-26904iLH11,20,30,RH22,25,32,42..4H197702-198107

sub33102-26010

main33121-35060iLH11,20,30..EUR197912-198211

sub33121-28010

sub90341-18049

sub90430-18008

33121CPIN(FOR TRANSMISSION CASE COVER)

main90250-10214iLH11,20,30..EUR197912-198211

L=14,OD=10

main90253-11001iLH11,20,30,RH11,2#,3#,42..4H197702-198211

L=11,OD=11,L=11,OD=11

33122GASKET, MANUAL TRANSMISSION CASE COVER

main33122-30020iLH11,20,30,RH11,2#,3#,42..4H197702-198211

main33122-35020iLH11,20,30..EUR197912-198211

33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1

main33261-26021iLH11,20,30,RH11,2#,3#,42..4H197702-198211

main33261-26030iLH11,20,30..EUR197912-198211

33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)

main90311-13050iLH11,20,30,RH11,2#,3#,42..4H197702-198211

LWR

main90312-15003iLH11,20,30,RH11,2#,3#,42..4H197702-198211

UPR

main90312-20016iLH11,20,30..EUR197912-198211

main90313-20001iLH11,20,30..EUR198211-198211

33205SHAFT SUB-ASSY, SELECT LEVER

main33262-26010iLH11,20,30,RH11,2#,3#,42..4H197702-198211

main33262-35030iLH11,20,30..EUR197912-198007

sub33262-35031

main33262-35031iLH11,20,30..EUR198007-198211

33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)

main90313-13001iLH11,20,30,RH11,2#,3#,42197702-198211

33205DWASHER(FOR OUTER LEVER OIL SETTING)

main94612-11300iLH11,20,30,RH11,2#,3#,42197702-198211

33213FORK, 1ST & 2ND SHIFT

main33212-26020iLH11,20,30,RH11,2#,3#,42..4H197702-198211

main33212-35010iLH11,20,30..EUR197912-198211

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

main90254-05001iLH11,20,30,RH11,2#,3#,42197702-198211

L=22

main90254-05016iLH11,20,30..EUR198110-198211

L=25.5

33215FORK, 3RD & 4TH SHIFT

main33213-26020iLH11,20,30,RH11,2#,3#,42..4H197702-198211

main33213-35020iLH11,20,30..EUR197912-198211

33221ARM, REVERSE SHIFT

main33201-35020iLH11,20,30..EUR197912-198211

main33221-30010iLH11,20,30,RH11,2#,3#,42..4H197702-198211

33221APLUG, TIGHT(FOR REVERSE SHIFT ARM)

main96411-12500iLH11,20,30,RH11,2#,3#,42..4H197702-198211

sub96411-42500

33223PIVOT, SHIFT ARM

main33223-30011iLH11,20,30,RH11,2#,3#,42..4H197702-198211

main33223-35020iLH11,20,30..EUR197912-198211

33223BRING, O(FOR SHIFT ARM PIVOT)

main90301-08001iLH11,20,30,RH11,2#,3#,42..4H197702-198211

main96710-01010iLH11,20,30..EUR197912-198111

sub96711-19010

main96711-19010iLH11,20,30..EUR198111-198211

33231HEAD, REVERSE SHIFT

main33202-26010iLH11,20,30..EUR197912-198001

sub33202-26011

main33202-26011iLH11,20,30..EUR198001-198211

main33231-26010iLH11,20,30,RH11,2#,3#,42..4H197702-198211

33241SHAFT, REVERSE SHIFT FORK

main33241-26010iLH11,20,30,RH11,2#,3#,42..4H197702-198211

main33245-35020iLH11,20,30..EUR197912-198211

33243SHAFT, 1ST & 2ND SHIFT FORK

main33242-26010iLH11,20,30,RH11,2#,3#,42..4H197702-198211

main33242-35010iLH11,20,30..EUR197912-198211

33245SHAFT, 3RD & 4TH SHIFT FORK

main33243-26010iLH11,20,30,RH22,25,32,42..4H197702-198211

main33243-26020iRH20..RHD..(03S,09S)..GEN197804-198211

HONG KONG SPEC

main33243-26020iRH11,20..ARL197702-198211

NEW SOUTH WALES SPEC

main33243-26020iRH11,20..ARL197702-198211

W/TOP SWITCH

main33243-28010iLH11,20,30..EUR198102-198211

main33243-35030iLH11,20,30..EUR197912-198102

sub33243-28010

33251LEVER, SHIFT & SELECT

main33251-26010iLH11,20,30,RH11,2#,3#,42..4H197702-198211

main33251-26030iLH11,20,30..EUR197912-198211

33253LEVER, SHIFT OUTER, NO.1

main33253-26012iLH11,20,30,RH11,2#,3#,42..4H197702-198211

main33253-26030iLH11,20,30..EUR197912-198211

33253APIN, LEVER LOCK (FOR SHIFT OUTER LEVER)

main33281-30010iLH11,20,30,RH11,2#,3#,42..4H197702-198211

OD=8,P=1.25

sub33281-16020

main33282-35010iLH11,20,30,RH11,2#,3#,42..4H197702-198211

OD=6,P=1.0

main33282-57010iLH11,20,30..EUR197912-198211

33257LEVER, SELECT OUTER

main33257-26011iLH11,20,30,RH11,2#,3#,42..4H197702-198211

main33257-26030iLH11,20,30..EUR197912-198211

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main33264-30010iLH11,20,30,RH11,2#,3#,42..4H197702-198211

OD=6,L=16

main90361-10001iLH11,20,30..EUR197912-198211

L=32.9,OD=9.53

main90361-10008iLH11,20,30..EUR197912-198211

L=14.9,OD=9.53

33265PIN, SHIFT INTERLOCK, NO.2

main33265-30010iLH11,20,30,RH11,2#,3#,42..4H197702-198211

L=28.8,OD=6.0

main90250-05010iLH11,20,30..EUR197912-198211

33273WASHER, SHIFT LEVER SHAFT HOUSING, NO.1

main90201-15137iLH11,20,30,RH11,2#,3#,42..4H197702-198211

33274WASHER, SHIFT LEVER SHAFT HOUSING, NO.2

main94612-11300iLH11,20,30,RH11,2#,3#,42..4H197702-198211

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main33275-10010iLH11,20,30,RH11,2#,3#,42..4H197702-198211

main90341-12003iLH11,20,30..EUR197912-198211

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-13006iLH11,20,30..EUR198102-198211

main90501-14047iLH11,20,30..EUR197912-198102

sub90501-13006

main90501-14638iLH11,20,30,RH11,2#,3#,42..4H197702-198211

L=15.2

33275BBALL, SHAFT DETENT

main90360-10003iLH11,20,30,RH11,2#,3#,42197702-198211

OD=8

33286PIN, SWITCH PRESSURE

main33286-26010iRH20..RHD..(03S,09S)..GEN197804-198211

HONG KONG SPEC

main33286-26010iRH11,20,30..EUR197702-198211

NEW SOUTH WALES SPEC

33293HOLDER, REVERSE RESTRICT BALL

main33276-10010iLH11,20,30,RH11,2#,3#,42..4H197702-198211

33293BSPRING, COMPRESSION (FOR REVERSE RESTRICT BALL)

main90501-14007iLH11,20,30,RH11,2#,3#,42..4H197702-198211

WD=1.4,CW=11

33293CBALL (FOR REVERSE RESTRICT)

main90360-10003iLH11,20,30,RH11,2#,3#,42..4H197702-198211

OD=8

8401

9020108065

main90201-08065

9020108136

main90201-08136

9161160820

main91611-60820

9161160832

main91611-60832

9165140816

main91651-40816

9411040600

main94110-40600

9411040800

main94110-40800

9451200600

main94512-00600

9451200800

main94512-00800

45 parts on this diagram · 2 diagrams in section
