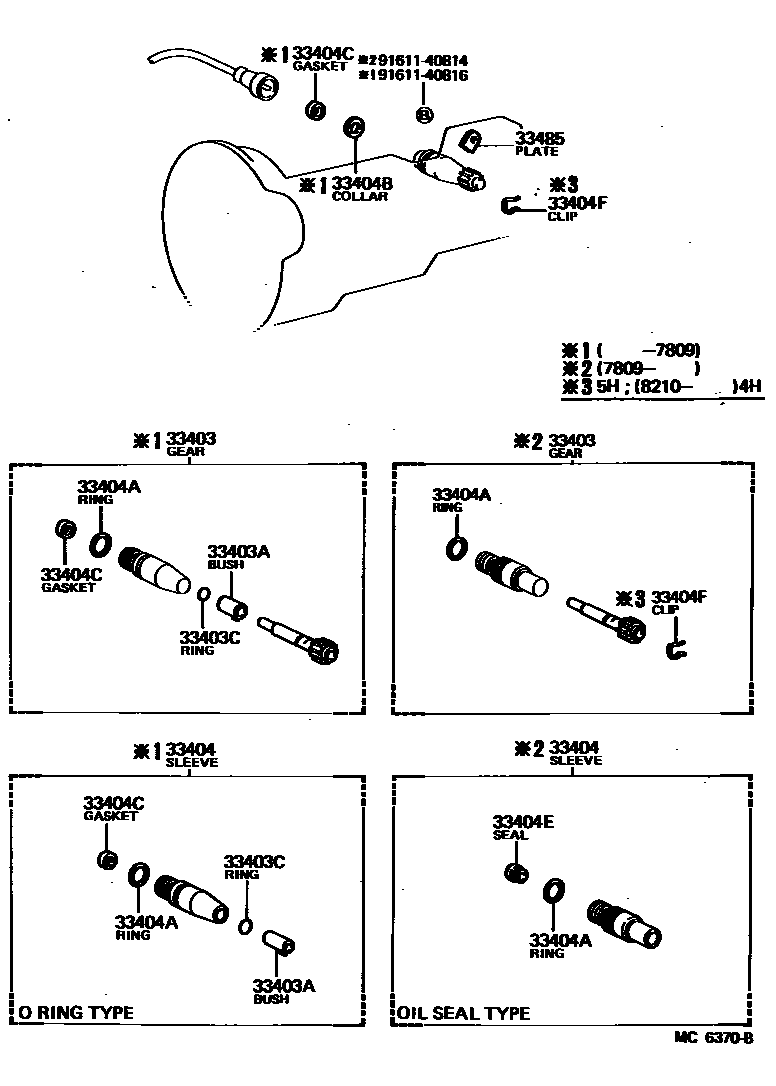

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-29065iLH11,20,30,RH22,25,32,42..4H197702-198210

N=20

main33403-39055iRH11,20,30..ARL,GEN,IDN,PHL197702-198210

N=16

main33403-69026iRH32..EUR197707-198210

N=19

main33482-29025iLH11,20,30..4H197702-198210

N=22

main33482-29035iLH11,20,30,RH11,20,30..4H198210-198211

N=22,MARK 22:6,N=22

main33482-29055iLH11,20,30..EUR197912-198012

N=17,MARK 17:5,N=17

main33482-39025iRH32..EUR198210-198211

N=19,MARK 19:6,N=19

main33482-39045iLH11,20,30..EUR198012-198211

N=20,MARK 20:6,N=20

main33482-39095iRH11,20,30..ARL,GEN198210-198211

N=16,MARK 16:4,N=16

33403ABUSH (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT SLEEVE)

main90386-09078iRH11,2#,3#,42197702-197809

33403CRING, O (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT)

main90301-09010iRH11,2#,3#,42197702-197809

sub90301-09017

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-30040iLH11,20,30,RH11,2#,3#,42..4H197809-198210

main33404-35010iLH11,20,30..EUR197912-198211

main33404-39016iRH11,2#,3#,42197702-197809

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iLH11,20,30,RH11,2#,3#,42197702-198211

33404BCOLLAR, SPEEDOMETER FLEXIBLE TUBE SHAFT GASKET (MTM)

main90201-07069iRH11,2#,3#,42197702-197809

33404CGASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (MTM)

main90303-06017iRH11,2#,3#,42197702-197809

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iLH11,20,30,RH11,2#,3#,42197809-198211

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iLH11,20,30..EUR197912-198211

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30010iRH11,2#,3#,42197702-197809

main33485-30020iLH11,20,30,RH11,2#,3#,42197809-198211

9161140814

main91611-40814

9161140816

main91611-40816

12 parts on this diagram · 1 diagram in section
