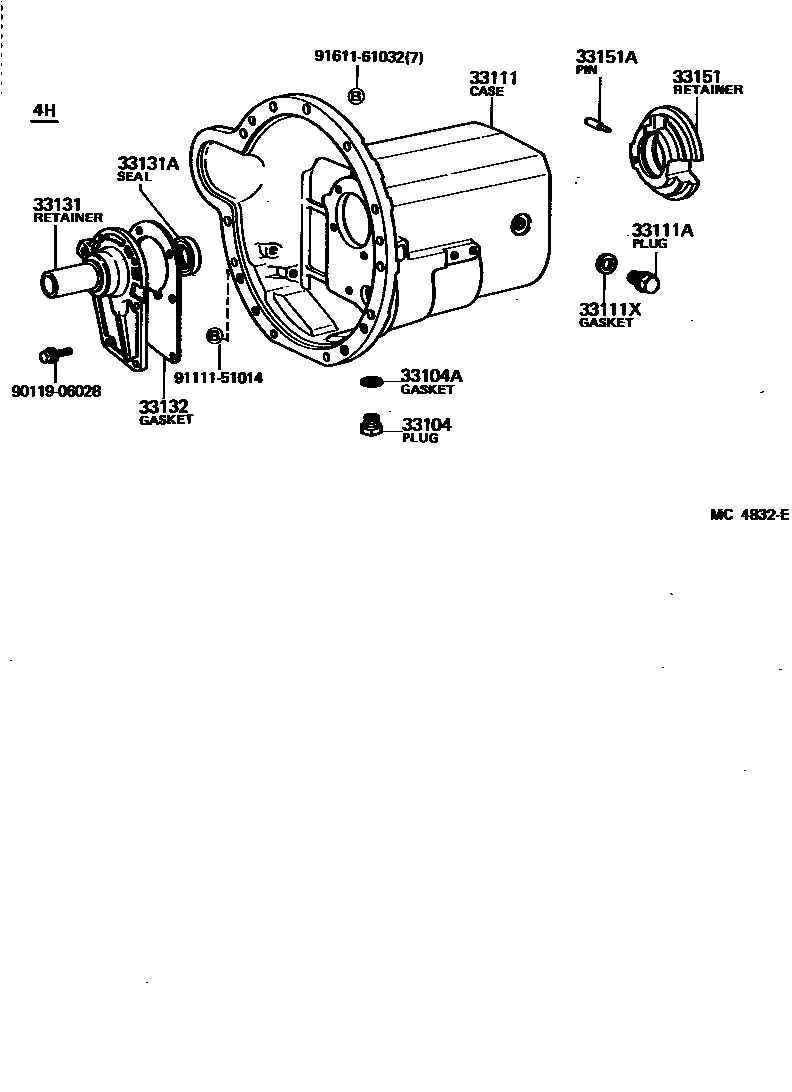

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1 0003 1

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18057iLH11,20,30,RH11,2#,3#,42197702-198211

33104AGASKET, DRAIN PLUG(MTM)

main12157-10010iLH11,20,30,RH11,2#,3#,42197702-198108

main90430-18007iLH11,20,30,RH11,2#,3#,42198108-198211

sub90430-18008

33111CASE, MANUAL TRANSMISSION

main33111-26031iRH11,20,30197702-198211

main33111-35031iLH11,20,30,RH22,25,32,42..4H197702-198211

main33111-35040iLH11,20,30..EUR197912-198008

sub33111-35041

sub33151-35011

sub33355-35011

sub90363-30026

sub91611-60825

main33111-35041iLH11,20,30..EUR198008-198211

sub33111-35042

sub33131-35022

sub33132-35022

sub90363-32019

main33111-35042iLH20,30..EUR198211-198211

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18002iLH11,20,30,RH11,2#,3#,42197702-198211

33111XGASKET, TRANSMISSION CASE PLUG

main12157-10010iLH11,20,30,RH11,2#,3#,42197702-198108

main90430-18007iLH11,20,30,RH11,2#,3#,42198108-198211

sub90430-18008

33131RETAINER, BEARING, FRONT(MTM)

main33131-20050iLH11,20,30,RH22,25,32,42..4H197702-198211

main33131-26010iRH11,20,30197702-198211

main33131-35021iLH11,20,30..EUR197912-198211

main33131-35022iLH20,30..EUR198211-198211

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30115iLH11,20,30..EUR197912-198211

main90311-32106iLH11,20,30,RH11,2#,3#,42..4H197702-198211

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-30020iRH11,20,30197702-198211

main33132-30030iLH11,20,30,RH22,25,32,42..4H197702-198211

main33132-35021iLH11,20,30..EUR197912-198211

main33132-35022iLH11,20,30..EUR198211-198211

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-26010iLH11,20,30,RH11,2#,3#,42..4H197702-198211

main33151-35010iLH11,20,30..EUR197912-198008

main33151-35011iLH11,20,30..EUR198008-198211

33151APIN, SLOTTED SPRING(FOR OUTPUT SHAFT REAR BEARING RETAINER)

main90254-05005iLH11,20,30,RH11,2#,3#,42..4H197702-198211

9011906028

main90119-06028

9111151014

main91111-51014

9161161032

main91611-61032

13 parts on this diagram · 3 diagrams in section
