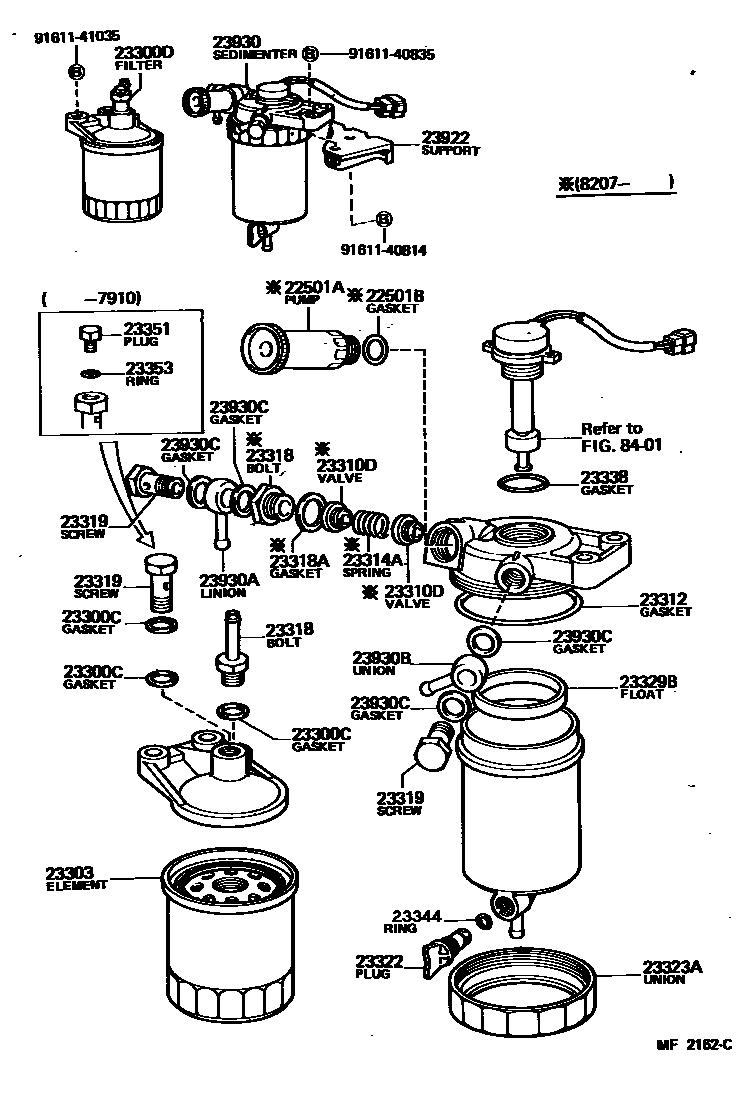

FUEL FILTER

0001 1 0002 1

22501APUMP SUB-ASSY, PRIMING

main22501-54010iL..LH11,20,30198207-198211

22501BGASKET(FOR PRIMING PUMP)

main23344-54020iL..LH11,20,30198207-198211

23300FILTER ASSY, FUEL

main23030-31030i12R..RH11197702-197808

main23030-31050i12R#,18R..RH2#,3#,42197702-197912

main23300-25020i12R,18R..RH11,25197808-198211

main23300-34100i12R,18R..RH20,22,3#,42197912-198211

23300CGASKET, NIPPLE UNION(FOR FUEL)

main22447-47030iL..LH11,20,30197901-198211

23300DFILTER ASSY, FUEL(FOR DIESEL)

main23300-54030iL..LH11,20,30197901-198006

sub23300-54031

main23300-54031iL..LH11,20,30198006-198110

sub23300-54032

main23300-54032iL..LH11,20,30198110-198211

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-54010iL..LH11,20,30197901-198006

sub23303-54011

main23303-54011iL..LH11,20,30198006-198110

sub23303-54072

main23303-54071iL..LH11,20,30198110-198211

sub23303-54072

23310DVALVE SUB-ASSY, FUEL SEDIMENTER

main23316-54010iL..LH11,20,30198207-198211

23312GASKET, FILTER BOWL

main23312-54010iL..LH11,20,30197901-198211

23314ASPRING, FUEL SEDIMENTER

main23314-54010iL..LH11,20,30198207-198211

23318BOLT, UNION

main23318-54030iL..LH11,20,30197901-198211

main23323-54020iL..LH11,20,30198207-198211

SEDIMENTER

23318AGASKET(FOR UNION BOLT)

main15318-44010iL..LH11,20,30198207-198211

23319SCREW, FUEL PIPE FOLLOW

main23319-54010iL..LH11,20,30197901-197910

sub90099-18011

main90099-18011iL..LH11,20,30197901-198211

SEDIMENTER

main90099-18011iL..LH11,20,30197910-198211

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-54010iL..LH11,20,30197901-198211

23323AUNION

main23323-54010iL..LH11,20,30197901-198211

23329BFLOAT, LEVEL WARNING

main23329-54010iL..LH11,20,30197901-198211

23338GASKET(FOR WARNING SWITCH)

main23338-54010iL..LH11,20,30197901-198211

23344GASKET, CLAMPING NUT(FOR FUEL FILTER)

main23344-54010iL..LH11,20,30197901-198211

23351PLUG, AIR VENT

main23351-54010iL..LH11,20,30197901-197910

23353RING, O(FOR AIR VENT PLUG)

main23353-54010iL..LH11,20,30197901-197910

23922SUPPORT, FUEL SEDIMENTER

main23922-54010iL..LH11,20,30197901-198211

23930SEDIMENTER ASSY, FUEL

main23930-54010iL..LH11,20,30197901-198001

sub23930-54011

main23930-54011iL..LH11,20,30198001-198211

23930AUNION(FOR FUEL SEDIMENTER INLET)

main90405-08016iL..LH11,20,30198207-198211

main90405-08160iL..LH11,20,30197901-198207

23930BUNION(FOR FUEL SEDIMENTER OUTLET)

main90405-08016iL..LH11,20,30198207-198211

main90405-08160iL..LH11,20,30197901-198207

23930CGASKET, UNION(FOR FUEL SEDIMENTER)

main22447-47030iL..LH11,20,30197901-198211

8401

9161140814

main91611-40814

9161140835

main91611-40835

9161141035

main91611-41035

28 parts on this diagram · 2 diagrams in section
