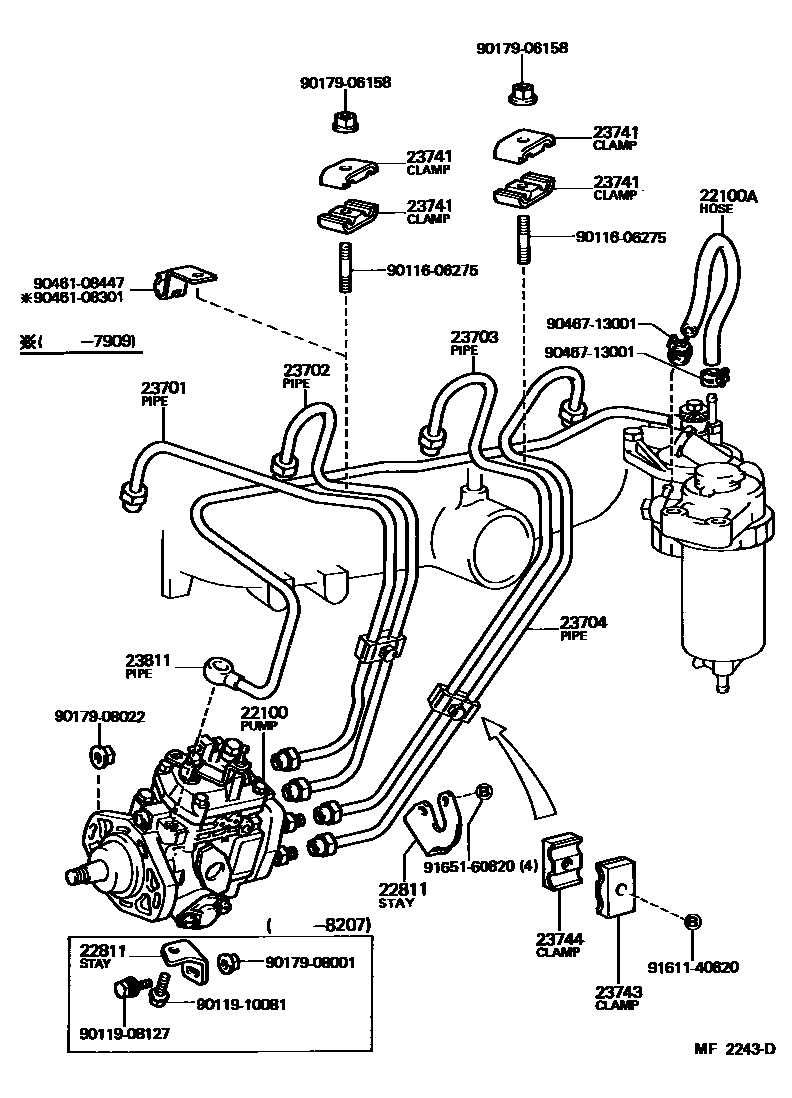

INJECTION PUMP ASSEMBLY

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-54050iL..LH11,20197901-197909

sub22100-54060

main22100-54060iL..LH11,20,30197909-198012

main22100-54100iL..LH20,30197909-198012

HIGH ALTITUDE SPEC

main22100-54130iL..LH11,20,30198012-198109

sub22100-54131

sub23811-54051

sub23811-54061

main22100-54131iL..LH11,20,30198109-198211

sub22100-54132

sub90099-05166

main22100-54140iL..LH11,20,30198012-198109

HIGH ALTITUDE SPEC

sub22100-54141

sub23811-54051

sub23811-54061

main22100-54141iL..LH11,20,30198109-198211

HIGH ALTITUDE SPEC

sub22100-54142

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main95332-08030iL..LH11,20,30197901-198103

L=300(*H,L=240)

sub95333-08030

main95332-08030iL..LH11,20,30198103-198211

L=300(*H,L=220)

sub95333-08030

22811STAY, INJECTION PUMP, NO.1

main22811-54020iL..LH11,20,30197901-198012

main22811-54030iL..LH11,20,30198012-198207

main22811-54040iL..LH11,20,30198207-198211

sub22811-54041

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-54011iL..LH11,20197901-197909

main23701-54030iL..LH11,20,30197909-198012

main23701-54051iL..LH11,20,30198012-198211

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-54010iL..LH11,20197901-197909

main23702-54030iL..LH11,20,30197909-198012

main23702-54050iL..LH11,20,30198012-198211

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-54011iL..LH11,20197901-197909

main23703-54030iL..LH11,20,30197909-198012

main23703-54050iL..LH11,20,30198012-198211

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-54010iL..LH11,20197901-197909

main23704-54030iL..LH11,20,30197909-198012

main23704-54050iL..LH11,20,30198012-198211

23741CLAMP, INJECTION PIPE, NO.1

main23741-56010iL..LH11,20,30197901-198211

23743CLAMP, INJECTION PIPE, NO.3

main23741-54010iL..LH11,20,30197901-198211

23744CLAMP, INJECTION PIPE, NO.4

main23742-54010iL..LH11,20,30197901-198211

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-54030iL..LH11,20,30197901-197910

sub23811-54031

sub90461-08447

main23811-54031iL..LH11,20,30197910-198012

main23811-54060iL..LH11,20,30198012-198109

main23811-54061iL..LH11,20,30198109-198211

9011606275

main90116-06275

9011908127

main90119-08127

9011910081

main90119-10081

9017906158

main90179-06158

9017908001

main90179-08001

9017908022

main90179-08022

9046108301

main90461-08301

9046108447

main90461-08447

9046713001

main90467-13001

9161140620

main91611-40620

9165160820

main91651-60820

22 parts on this diagram · 1 diagram in section
