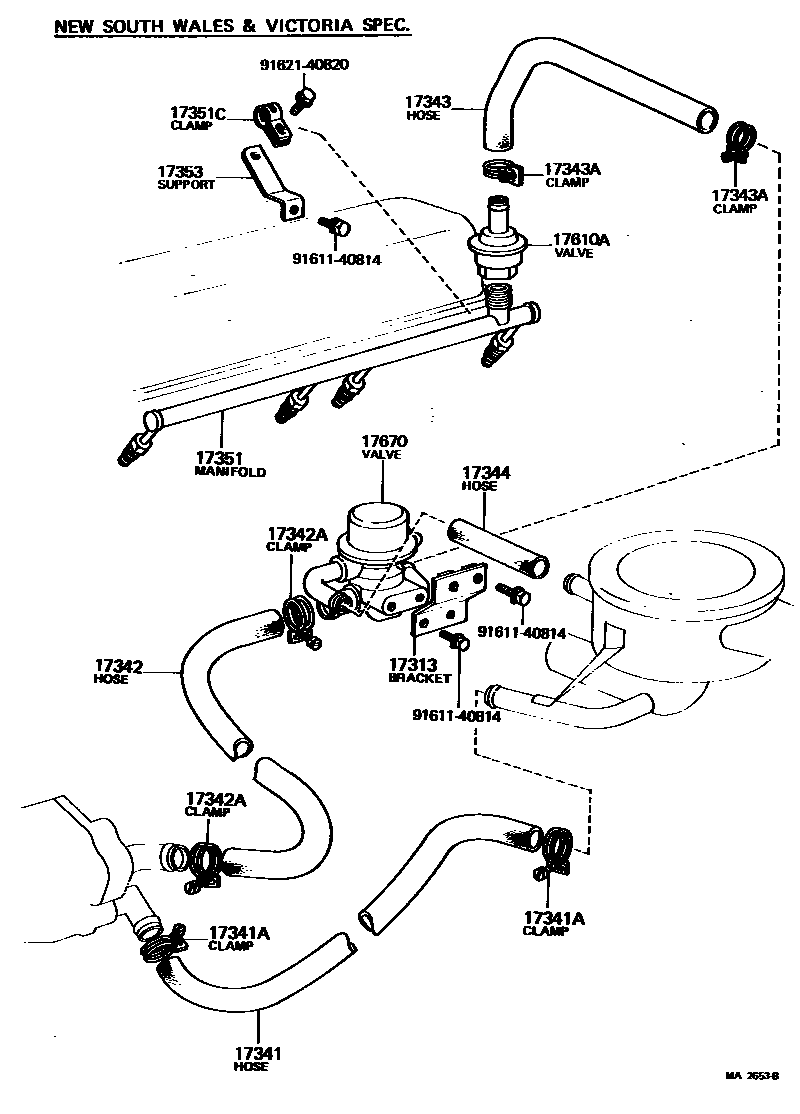

MANIFOLD AIR INJECTION SYSTEM

0001 1 0002 1

17313BRACKET, AIR BY-PASS VALVE

main17313-31010i12R..RH11,20..ARL197702-198211

NEW SOUTH WALES & VICTORIA

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-31020i12R..RH11,20..ARL197702-198211

NEW SOUTH WALES & VICTORIA

main17341-34050i18R..RH22,32..ARL197706-198211

18RC

17341ACLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)

main96111-10330i12R..RH11,20..ARL197702-198211

NEW SOUTH WALES & VICTORIA

17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)

main17342-34020i18R..RH22,32..ARL197706-198211

18RC

main90910-05115i12R..RH11,20..ARL197702-198211

NEW SOUTH WALES & VICTORIA

17342ACLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)

main96111-10330i12R..RH11,20..ARL197702-198211

NEW SOUTH WALES & VICTORIA

main96112-10300i18R..RH22,32..ARL197706-198211

18RC

17343HOSE, NO.3(FOR AIR INJECTION SYSTEM)

main17342-31021i12R..RH11,20..ARL197702-198211

NEW SOUTH WALES & VICTORIA

main17343-34040i18R..RH22,32..ARL197706-197912

18RC

sub17343-34021

main17343-34050i18R..RH22,32..ARL197912-198211

18RC

17343ACLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3)

main96112-10270i18R..RH22,32..ARL197706-198211

18RC

main96112-10280i12R..RH11,20..ARL197702-198211

NEW SOUTH WALES & VICTORIA

17344HOSE, NO.4(FOR AIR INJECTION SYSTEM)

main90445-27009i12R..RH11,20..ARL197702-198211

NEW SOUTH WALES & VICTORIA

17351MANIFOLD, AIR INJECTION

main17351-31020i12R..RH11,20..ARL197702-198211

NEW SOUTH WALES & VICTORIA

17351CCLAMP(FOR AIR INJECTION MANIFOLD)

main90461-16013i12R..RH11,20..ARL197702-198211

NEW SOUTH WALES & VICTORIA

17353SUPPORT, AIR INJECTION MANIFOLD

main17353-31010i12R..RH11,20..ARL197702-198211

NEW SOUTH WALES & VICTORIA

17610AVALVE, CHECK(FOR AIR INJECTION SYSTEM)

main90917-10039i18R..RH22,32..ARL197706-198211

18RC

main90917-10045i12R..RH11,20..ARL197702-198211

NEW SOUTH WALES & VICTORIA

17670VALVE ASSY, AIR BY-PASS

main17670-31010i12R..RH11,20..ARL197702-198211

NEW SOUTH WALES & VICTORIA

main17670-34030i18R..RH22,32..ARL197706-198211

18RC

9161140814

main91611-40814

9162140820

main91621-40820

15 parts on this diagram · 2 diagrams in section
