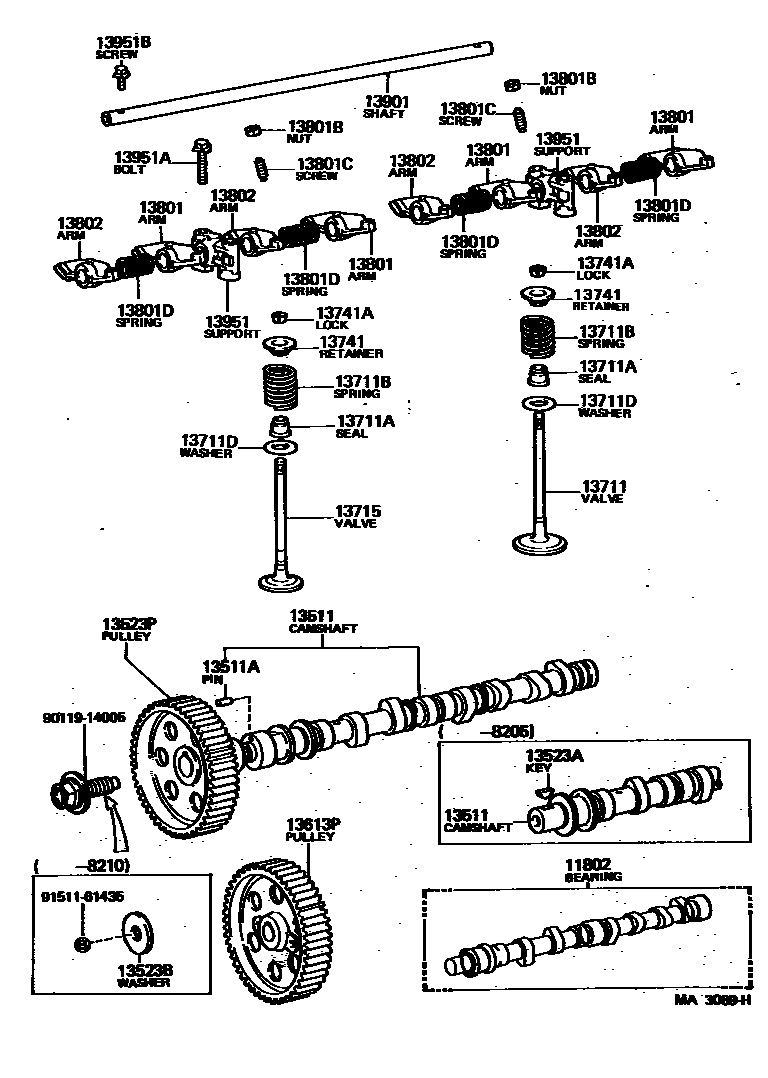

CAMSHAFT & VALVE

0001 1 0002 1 0003 1

11802BEARING SET, CAMSHAFT

main11802-31010i12R#..RH11,20,30197702-198211

STD

main11802-33010i18R..RH22,25,32,42197702-198211

STD,STD

main11802-54010iL..LH11,20,30197901-198211

STD,STD

main11803-54010iL..LH11,20,30197901-198211

U/S 0.125,U/S 0.125

main11804-31010i12R#..RH11,20,30197702-198211

U/S 0.250

main11804-33010i18R..RH22,25,32,42197702-198211

U/S 0.25,U/S 0.125

main11804-54010iL..LH11,20,30197901-198211

U/S 0.25,U/S 0.250

main11805-31010i12R#..RH11,20,30197702-198211

U/S 0.500

main11805-33010i18R..RH22,25,32,42197702-198211

U/S 0.50,U/S 0.250

13511CAMSHAFT

main13501-54030iL..LH11,20,30198205-198211

main13511-31020i12R..RH11,20,30197702-198211

sub13511-31900

main13511-33013i18R..RH22,32,42197702-197705

sub13511-33901

main13511-33904i18R..RH22,32,42197705-197709

sub13511-33905

main13511-33905i18R..RH22,32,42197709-197907

sub13511-33906

main13511-33906i18R..RH22,25,32,42197907-198211

main13511-54010iL..LH11,20,30197901-198205

sub13501-54H00

13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)

main90250-05121iL..LH11,20,30198205-198211

L=15,OD=5

main90250-08074i18R..RH22,25,32,42197702-198211

L=15,OD=8,L=15,OD=8

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-31011i12R#..RH11,20,30197702-198211

N=50

main13523-33010i18R..RH22,25,32,42197702-198211

N=24

13523AKEY, WOODRUFF(FOR TIMING GEAR)

main90280-05008iL..LH11,20,30197901-198205

main95161-10519i12R#..RH11,20,30197702-198211

13523BWASHER, PLATE(FOR TIMING GEAR)

main90201-08120i12R#..RH11,20,30197702-198211

main90201-14007iL..LH11,20,30197901-198210

sub90201-14030

13523PPULLEY, CAMSHAFT TIMING

main13523-54010iL..LH11,20,30197901-198205

N=42

main13523-54020iL..LH11,20,30198205-198211

13613PPULLEY, INJECTION PUMP DRIVE

main13613-54010iL..LH11,20,30197901-198205

N=42

sub13613-54030

main13613-54020iL..LH11,20,30198205-198211

sub13603-54020

13711VALVE, INTAKE

main13711-31050i12R#..RH11,20,30197702-198211

main13711-36021i18R..RH22,25,32,42197702-198211

main13711-54010iL..LH11,20,30197901-198211

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02016i18R..RH22,25,32,42197702-198007

sub90913-02054

main90913-02033i12R#..RH11,20,30197702-198211

main90913-02036iL..LH11,20,30197901-198107

main90913-02054i18R..RH22,25,32,42198007-198211

main90913-02060iL..LH11,20,30198107-198211

sub90913-02059

13711BSPRING, COMPRESSION(FOR INNER)

main90501-26005i18R..RH22,32,42197704-197901

WD=2.6,CW=7.75

main90501-26398i18R..RH22,25,32,42197702-198211

WD=2.6,CW=7.5

main90501-44002iL..LH11,20,30197901-198211

WD=4.35,CW=6.25

main90501-45005i12R#..RH11,20,30197702-198211

WD=4.5,CW=6.25

13711DWASHER, PLATE(FOR VALVE SPRING SEAT)

main90201-13308i18R..RH22,25,32,42197702-198211

sub90201-13366

main90201-15387i12R#..RH11,20,30197702-198211

main90201-20579iL..LH11,20,30197901-198211

13715VALVE, EXHAUST

main13715-31070i12R#..RH11,20,30197702-198211

main13715-34012i18R..RH22,25,32,42197702-198007

main13715-34013i18R..RH22,25,32,42198007-198211

main13715-54010iL..LH11,20,30197901-198211

13741RETAINER, VALVE SPRING

main13741-25012i12R#..RH11,20,30197702-198211

main13741-33010i18R..RH22,25,32,42197702-198211

main13741-54010iL..LH11,20,30197901-198211

13741ALOCK, VALVE SPRING RETAINER

main90913-03005i18R..RH22,25,32,42197702-198211

main90913-03014i12R#..RH11,20,30197702-198211

main90913-03016iL..LH11,20,30197901-198211

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13801-33012i18R..RH22,32,42197702-197711

main13801-54010iL..LH11,20,30197901-198106

sub13801-54011

main13801-54011iL..LH11,20,30198106-198207

main13801-54012iL..LH11,20,30198207-198211

main13811-31021i12R..RH11,20,30197702-197707

sub13811-31H00

main13811-31022i12R#..RH11,20,30197707-198211

main13811-33014i18R..RH22,25,32,42197711-198203

sub13811-33020

main13811-33020i18R..RH22,25,32,42198203-198211

13801BNUT, HEXAGON(FOR VALVE ADJUSTING)

main90170-08094i12R#..RH11,20,30197707-198211

sub90170-08005

main90170-08210iL..LH11,20,30197901-198211

sub90170-08005

main90170-10074i12R..RH11,20,30197702-197707

main90170-10116i18R..RH22,25,32,42197702-198211

13801CSCREW, VALVE ADJUSTING

main90913-05010i12R..RH11,20,30197702-197707

main90913-05011i18R..RH22,25,32,42197702-198211

main90913-05013i12R#..RH11,20,30197707-198205

sub90913-05020

main90913-05016iL..LH11,20,30197901-198102

sub90913-05019

main90913-05019iL..LH11,20,30198102-198211

main90913-05020i12R..RH11,20,30198205-198211

13801DSPRING, COMPRESSION(FOR ROCKER ARM)

main90501-16098i12R#..RH11,20,30197702-198211

WD=1.6,CW=9

main90501-16163iL..LH11,20,30197702-198211

WD=1.6,CW=7.5

13802ARM SUB-ASSY, VALVE ROCKER, NO.2

main13802-33012i18R..RH22,32,42197702-197711

main13802-54010iL..LH11,20,30197901-198106

sub13802-54011

main13802-54011iL..LH11,20,30198106-198211

main13812-31021i12R..RH11,20,30197702-197707

sub13812-31H00

main13812-31022i12R#..RH11,20,30197707-198211

main13812-33014i18R..RH22,25,32,42197711-198203

sub13812-33020

main13812-33020i18R..RH22,25,32,42198203-198211

13901SHAFT SUB-ASSY, VALVE ROCKER, NO.1

main13901-31020i12R#..RH11,20,30197702-198211

main13901-33010i18R..RH22,25,32,42197702-198211

main13901-54010iL..LH11,20,30197901-198211

13951SUPPORT, VALVE ROCKER, NO.1

main13951-31020i12R#..RH11,20,30197702-198211

main13951-36010i18R..RH22,25,32,42197702-198211

main13951-54010iL..LH11,20,30197901-198211

13951ABOLT(FOR ROCKER SUPPORT SET)

main90105-08016i18R..RH22,25,32,42197702-198211

*8-1.25PX65-16

main90119-08191iL..LH11,20,30197901-198211

main90910-01007i18R..RH22,25,32,42197702-198211

*8-1.25PX75-16

main90910-01010i12R#..RH11,20,30197702-198211

13951BSCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK)

main90151-40010i12R#,18R..RH11,2#,3#,42197702-198211

main91611-60614iL..LH11,20,30197901-198207

sub91611-B0614

main91611-60620iL..LH11,20,30198207-198211

9011914005

main90119-14005

9151161435

main91511-61435
