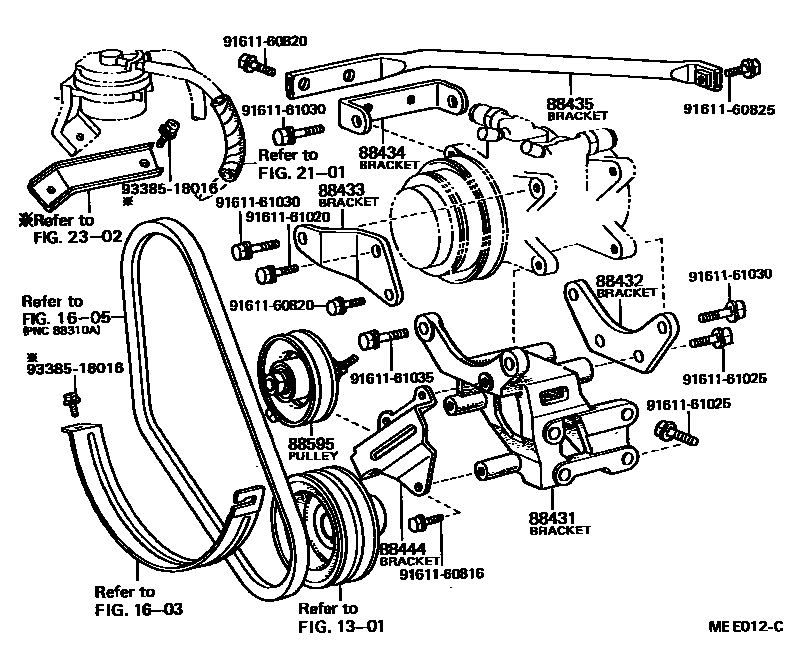

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

1301

1603

1605

2101

2302

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-25030iRK110..GEN197903-198609

main88431-30490iYK110..GEN198609-200002

88432BRACKET, COMPRESSOR MOUNTING, NO.2

main88437-25020iRK110..GEN197903-198609

88433BRACKET, COMPRESSOR MOUNTING, NO.3

main88433-25020iRK110..GEN197903-198609

88434BRACKET, COMPRESSOR MOUNTING, NO.4

main88437-25010iRK110..GEN197903-198609

88435BRACKET, COMPRESSOR MOUNTING, NO.5

main88433-25010iRK110..GEN197903-198609

88444BRACKET, IDLE PULLEY

main88444-25010iRK110..GEN197903-198609

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-30250iRK110..GEN197903-198609

sub88440-28050

main88440-35020iYK110..GEN198609-200002

9161160816

main91611-60816

9161160820

main91611-60820

9161160825

main91611-60825

9161161020

main91611-61020

9161161025

main91611-61025

9161161030

main91611-61030

9161161035

main91611-61035

9338518016

main93385-18016

20 parts on this diagram · 7 diagrams in section
