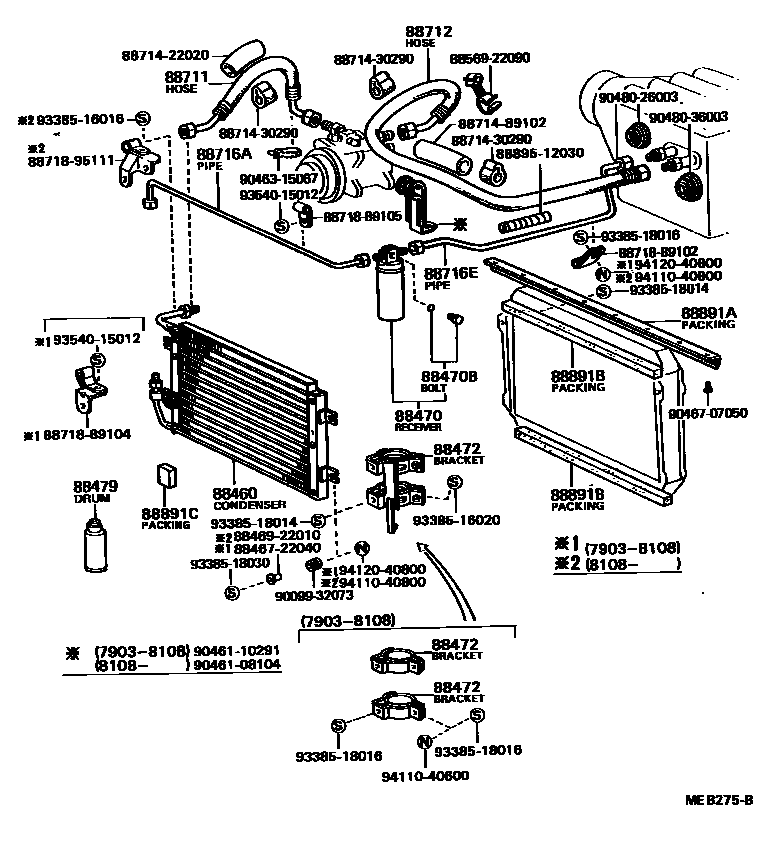

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

88460CONDENSER ASSY, COOLER

main88460-89107iRK110..GEN197903-198308

main88460-92300iRK110..GEN198308-198609

main88460-92301iYK110..GEN198609-199308

main88460-95110iRK110..GEN198201-198308

W/BOOST VENTILATOR

88470RECEIVER & DRYER ASSY, COOLER

main88470-12030iRK110..LHD197903-198108

sub88470-12031

main88470-12031iRK110..LHD198108-198308

main88470-14010iYK110..RHD..GEN198308-199604

sub04884-33110

main88470-20070iRK110..RHD..GEN197903-198308

main88471-16010iRK110..LHD198308-198609

88470BBOLT, FUSE

main90099-04579iRK110..GEN197903-198804

sub88475-12020

88472BRACKET, RECEIVER TANK, NO.1

main88472-89103iRK110..RHD..GEN197903-198108

main88472-89104iRK110..LHD197903-198108

main88472-89105iRK110..LHD198312-198609

main88472-89106iYK110..RHD..GEN198308-199308

main88472-89107iRK110..RHD..GEN198108-198308

main88472-89108iRK110..LHD198108-198312

main88472-92300iYK110..LHD198609-199308

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02001iYK110197903-199604

400G

sub90986-02004

sub90986-02005

main90986-02004iYK110..RHD..GEN198910-199604

250G

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-89111iRK110..GEN198108-198308

main88711-89112iRK110..GEN198308-198609

main88711-92301iYK110..RHD..GEN198804-199604

sub88703-92300

main88711-95110iRK110..GEN197903-198108

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-22181iRK110..LHD197903-198308

main88712-30390iRK110..RHD..GEN197903-198308

main88712-90A06iRK110..RHD..GEN198308-198609

main88712-92301iRK110..LHD198308-198609

main88712-92302iYK110..RHD..GEN198609-199308

sub88704-92300

main88712-92303iYK110199308-199604

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-12420iRK110..LHD198308-198609

main88716-89119iRK110..RHD..GEN197903-198308

main88716-89120iRK110..LHD197903-198308

main88716-92300iRK110..RHD..GEN198308-199308

main88716-92306iYK110199308-199604

88716EPIPE, COOLER REFRIGERANT LIQUID, E

main88716-89122iRK110..LHD197903-198308

main88716-89123iRK110..RHD..GEN197903-198308

main88716-92301iRK110..RHD..GEN198308-198609

main88716-92303iRK110..LHD198308-198609

main88716-92304iYK110..RHD..GEN198609-199308

main88716-92305iYK110199308-199604

88891APACKING A (FOR COOLER)

main88893-89113iYK110..RHD..GEN197903-199604

88891BPACKING B (FOR COOLER)

main88578-89101iYK110..RHD..GEN198804-199604

main88578-92300iRK110..GEN198308-198609

main88578-95110iRK110..GEN197903-198308

sub88893-89120

88891CPACKING C (FOR COOLER)

main88895-95111iRK110..GEN198201-198308

8846722040CUSHION, COOLER CONDENSER, NO.1

main88467-22040

8846922010SWITCH, PRESSURE CONTROL

main88469-22010

8856922090CLAMP (FOR COOLER RELAY)

main88569-22090

8871422020HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-22020

8871430290HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-30290

8871489102HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-89102

8871889102PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-89102

8871889104PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-89104

8871889105PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-89105

8871895111PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95111

8889512030HOLDER, FUSE

main88895-12030

9009932073

main90099-32073

9046108104

main90461-08104

9046110291

main90461-10291

9046315067

main90463-15067

9046707050

main90467-07050

9048026003

main90480-26003

9048036003

main90480-36003

9338516016

main93385-16016

9338516020

main93385-16020

9338518014

main93385-18014

9338518016

main93385-18016

9338518030

main93385-18030

9354015012

main93540-15012

9411040600

main94110-40600

9411040800

main94110-40800

9412040800

main94120-40800

39 parts on this diagram · 6 diagrams in section
