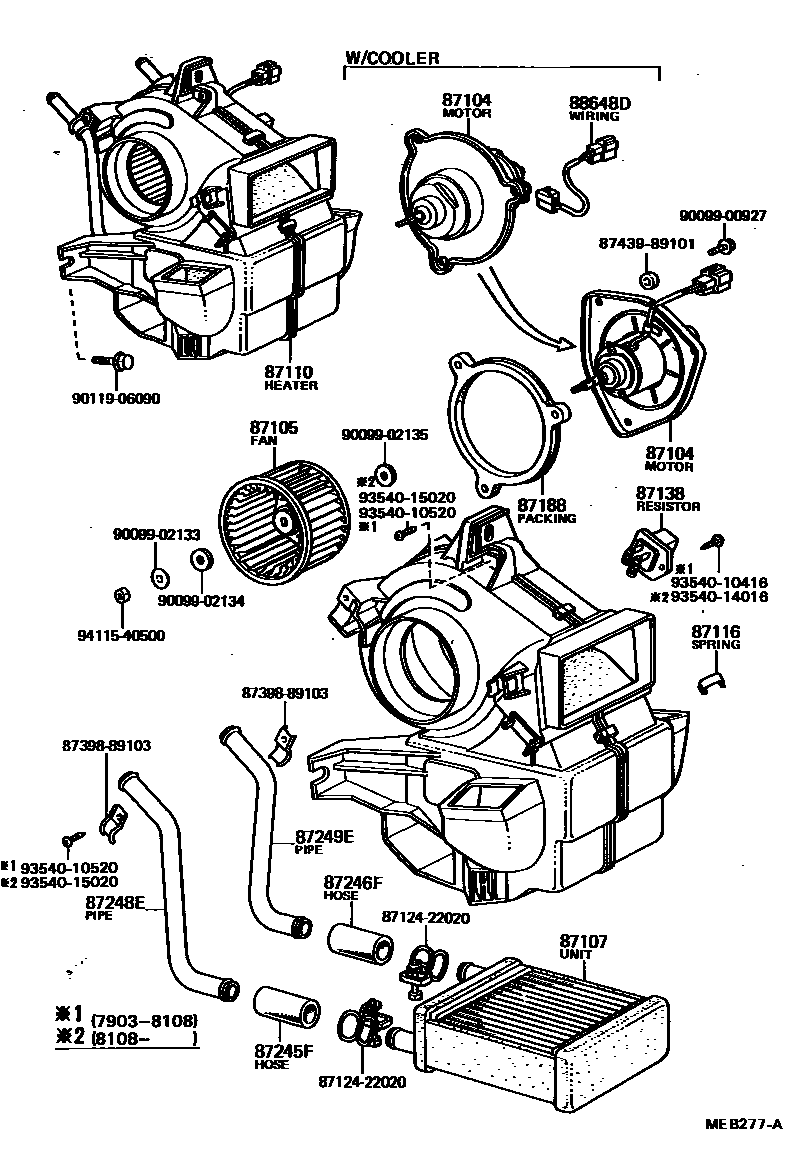

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-95401iRK110197903-198804

sub87104-95A00

main87104-95403iRK110..GEN197903-198804

W/COOLER

87105FAN SUB-ASSY, HEATER BLOWER

main87105-12030iRK110..RHD197903-198804

main87105-12040iRK110..LHD197903-198804

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-89106iRK110..RHD197903-198709

sub87107-90D00

main87107-89108iRK110..LHD197903-198804

sub87107-89109

87110HEATER ASSY

main87110-89127iRK110..RHD197903-198108

sub87110-89128

main87110-89129iRK110..LHD197903-198108

sub87110-89130

main87110-89133iRK110..LHD198108-198609

sub87110-89134

main87110-89135iRK110..RHD198108-198609

sub87110-89132

main87110-92302iYK110..RHD..GEN198804-199308

W(HEATER & AIR CONDITIONER)

main87110-92303iYK110..LHD198804-199308

W(HEATER & AIR CONDITIONER)

main87110-92304iYK110..RHD..GEN198804-199308

W(HEATER)

main87110-92305iYK110199308-200002

main87110-92305iYK110..LHD198804-199308

W(HEATER)

87116SPRING, HEATER CASE FASTENING

main87116-14010iRK110197903-198804

87138RESISTOR, HEATER BLOWER

main87138-87003iRK110197903-198804

main87138-87004iRK110..GEN197903-198108

W/COOLER

main88635-89102iRK110..GEN198108-198804

W/COOLER

87188PACKING, HEATER BLOWER MOTOR

main87128-22010iRK110197903-198804

87245FHOSE, HEATER WATER, INLET F

main99552-30075iRK110197903-198002

*H,L=40

sub99552-30100

main99552-30100iRK110198002-198804

*H,L=40

sub99556-30100

87246FHOSE, HEATER WATER, OUTLET F

main99552-30075iRK110197903-198002

*H,L=40

sub99552-30100

main99552-30100iRK110198002-198804

*H,L=40

sub99556-30100

87248EPIPE, HEATER WATER INLET, E

main87248-89114iRK110197903-198804

main87248-89116iRK110..LHD197903-198108

sub87248-89114

87249EPIPE, HEATER WATER OUTLET, E (FOR HEATER UNIT)

main87248-89115iRK110..RHD197903-198804

main87248-89117iRK110..LHD197903-198804

88648DWIRING, BLOWER MOTER

main88648-89101iRK110..GEN197903-198609

W/COOLER

8712422020CLAMP, HEATER

main87124-22020

8739889103BAND ASSY (FOR COMBUSTION HEATER)

main87398-89103

8743989101

main87439-89101

9009900927

main90099-00927

9009902133

main90099-02133

9009902134

main90099-02134

9009902135

main90099-02135

9011906090

main90119-06090

9354010416

main93540-10416

9354010520

main93540-10520

9354014016

main93540-14016

9354015020

main93540-15020

9411540500

main94115-40500

25 parts on this diagram · 2 diagrams in section
