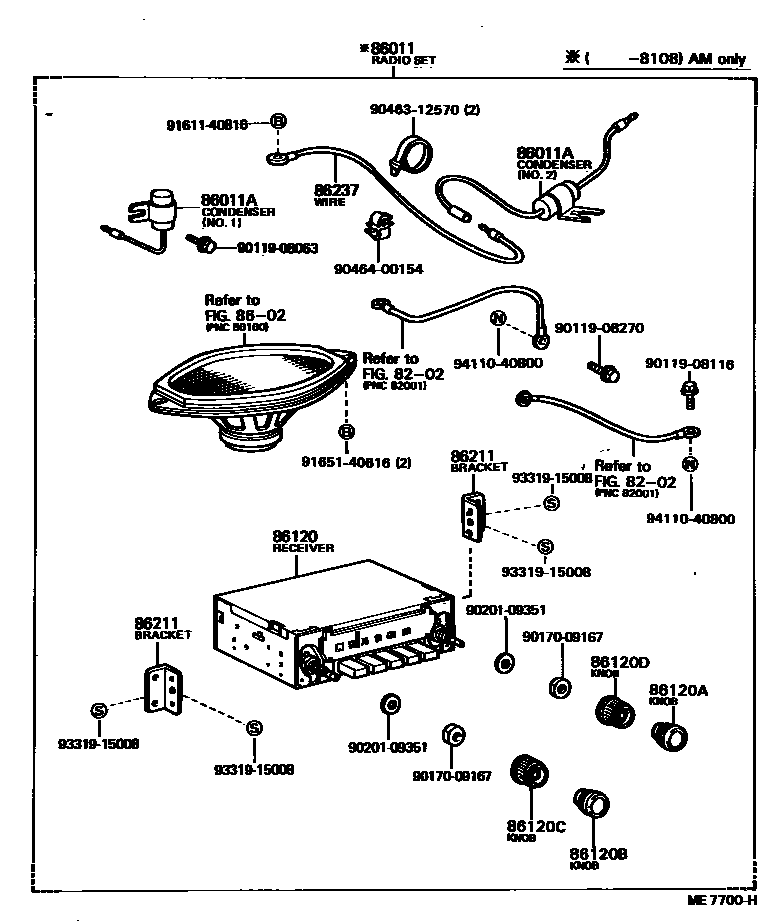

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

8202

86011RADIO & SETTING PARTS SET

main86011-39035iRK110197903-198108

AM,5-BUTTON

main86011-39055iRK110197903-198108

AM/FM,5-BUTTON

86011ACONDENSER, RADIO SETTING

main90980-04011iRK110197903-198108

NO.1

main90980-04029iRK110197903-198108

NO.2

main90980-04038iYK110198108-200002

NO.2

main90980-04040iRK110198108-200002

NO.1

8602

86120RECEIVER ASSY, RADIO

main86120-89106iRK110197903-198108

AM/FM,5-BUTTON

main86120-90A00iYK110198804-199308

AM 5-BUTTON

main86120-90A00iRK110198108-198804

AM,5-BUTTON

main86120-90A03iYK110198108-199308

AM/FM,5-BUTTON

main86120-95A00iRK110197903-198108

AM,5-BUTTON

main86120-95A03iRK110..LHD197903-198108

SW/MW,5-BUTTON

main86120-95A08iRK110..GEN198108-199308

SW/MW,5-BUTTON

86120AKNOB, RADIO RECEIVER SWITCH

main86125-89101iYK110198108-199308

main86125-95A00iRK110197903-198108

86120BKNOB, RADIO RECEIVER TUNING, NO.1

main86125-89101iRK110198108-199308

main86125-95A00iRK110197903-198108

86120CKNOB, RADIO RECEIVER TUNING, NO.2

main86124-89104iYK110198108-199308

main86124-95A00iRK110197903-198108

86120DKNOB, RADIO RECEIVER TONE

main86124-89104iRK110198108-199308

main86124-95A00iRK110197903-198108

86211BRACKET, RADIO, NO.1

main86211-89104iRK110197903-198108

main86211-89107iRK110198108-200002

86237WIRE, CONDENSER

main86237-95110iRK110197903-198108

main86237-95111iRK110198108-198609

9011908063

main90119-08063

9011908116

main90119-08116

9011908270

main90119-08270

9017009167

main90170-09167

9020109351

main90201-09351

9046312570

main90463-12570

9046400154

main90464-00154

9161140816

main91611-40816

9165140616

main91651-40616

9331915008

main93319-15008

9411040800

main94110-40800

22 parts on this diagram · 2 diagrams in section
