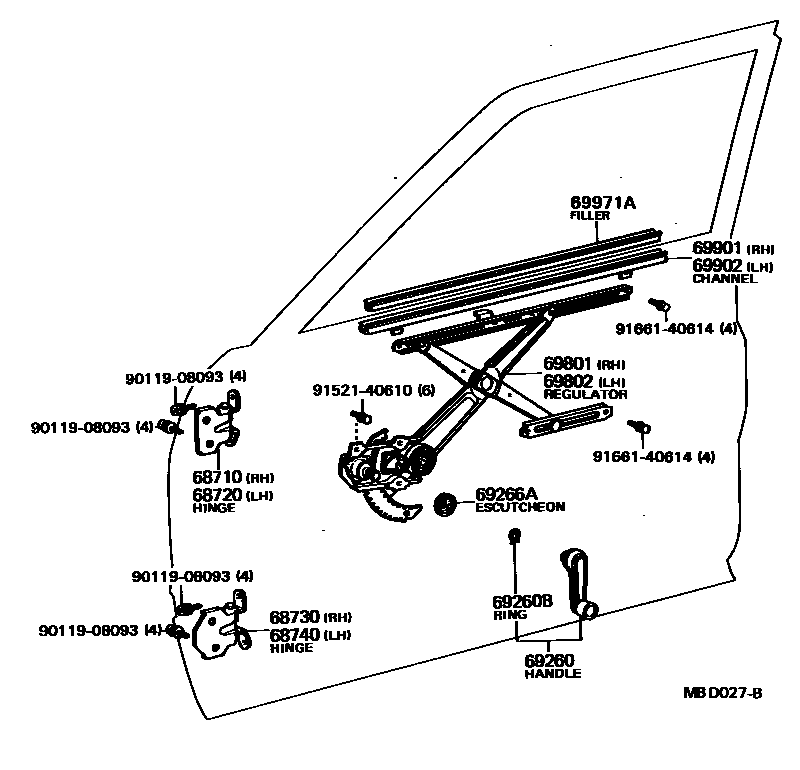

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-14020iYK110197903-200002

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-14020iRK110197903-200002

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-14020iYK110197903-200002

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-14020iRK110197903-200002

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-01iRK110197903-198308

BLACK,BLACK

sub69260-10040

sub69260-16010

main69260-10040-04iRK110197903-198804

BLUE,BLUE

sub69260-10040

sub69260-16010

main69260-10040-04iYK110198804-200002

BLUE,TRIM8#

sub69260-10040

sub69260-16010

main69260-10040-05iYK110198804-200002

BEIGE,TRIM4#

sub69260-10040

sub69260-16010

main69260-10040-05iRK110197903-198804

BEIGE,BEIGE

sub69260-10040

sub69260-16010

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iYK110197903-200002

sub90520-01274

69266AESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)

main69266-22010iRK110197903-198804

main69266-22010-08iYK110198804-198907

NATURAL WHITE,TRIM4#,8#

sub69266-22010

main69272-30010-08iYK110198907-200002

NATURAL WHITE,TRIM4#,8#

sub69272-30010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-89105iYK110..GEN197903-200002

main69801-89106iYK110..SA198804-199308

W(FRONT DOOR VENTILATOR WINDOW)

main69801-89106iRK110197903-198804

W/*VW

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-89105iYK110..GEN197903-200002

main69802-89106iYK110..GEN198804-199308

W(FRONT DOOR VENTILATOR WINDOW)

main69802-89106iRK110197903-198804

W/*VW

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-89105iYK110..GEN197903-200002

main69901-89106iYK110..SA198804-199308

W(FRONT DOOR VENTILATOR WINDOW)

main69901-89106iRK110197903-198804

W/*VW

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-89105iRK110..GEN197903-200002

main69901-89106iYK110..SA198804-199308

W(FRONT DOOR VENTILATOR WINDOW)

main69901-89106iRK110197903-198804

W/*VW

69971AFILLER, FRONT DOOR GLASS CHANNEL

main68173-22010iYK110..SA198804-199308

sub69971-95110

main68173-22010iYK110..T1..5F;YK110..(4F,4H)..GEN198804-200002

W(FRONT DOOR VENTILATOR WINDOW)

sub69971-95110

main69971-95110iRK110..GEN197903-200002

sub69971-90K00

main69971-95111iRK110197903-198609

W/*VW

sub68173-22010

9011908093

main90119-08093

9152140610

main91521-40610

9166140614

main91661-40614

15 parts on this diagram · 1 diagram in section
