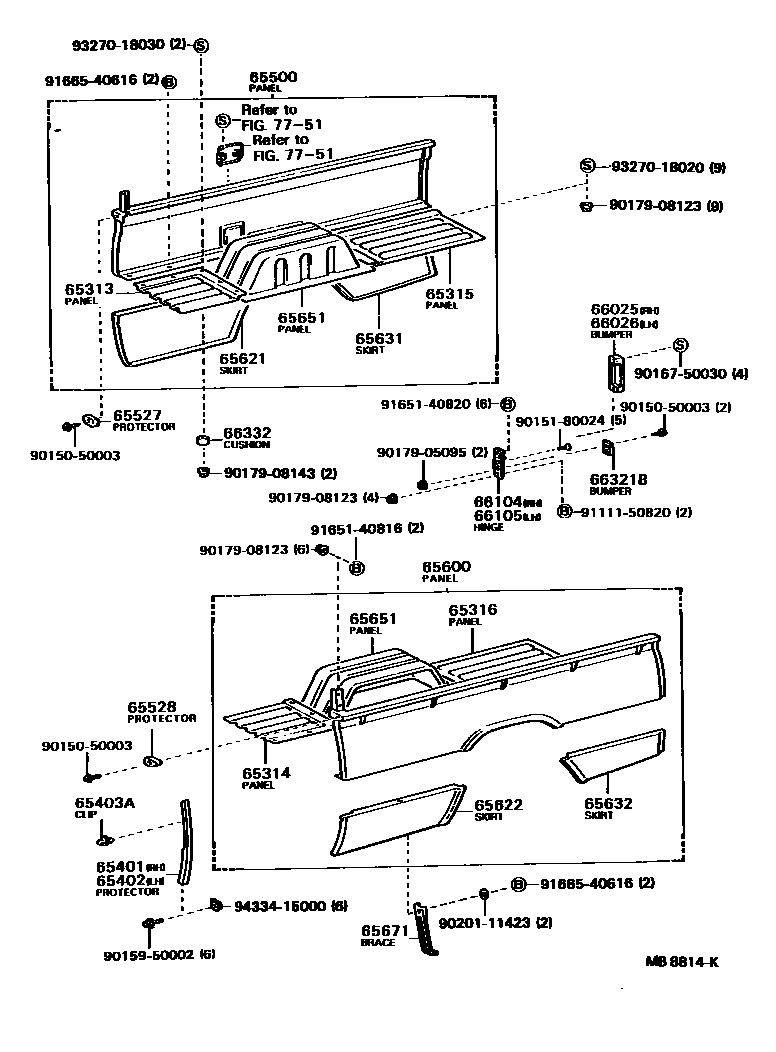

REAR BODY SIDE PANEL
65313PANEL, FLOOR FRONT CORNER, RH
65314PANEL, FLOOR FRONT CORNER, LH
65315PANEL, FLOOR REAR CORNER, RH
65316PANEL, FLOOR REAR CORNER, LH
65401PROTECTOR, FRONT CORNER, RH
65402PROTECTOR, FRONT CORNER, LH
65403ACLIP, CORNER PROTECTOR
65500PANEL ASSY, REAR BODY SIDE, RH
65527PROTECTOR, TOP RAIL SIDE, RH
65528PROTECTOR, TOP RAIL SIDE, LH
65600PANEL ASSY, REAR BODY SIDE, LH
65671BRACE, SIDE PANEL SKIRT, FRONT
66025BUMPER SUB-ASSY, REAR BODY RUBBER, RH
66026BUMPER SUB-ASSY, REAR BODY RUBBER, LH
66104HINGE SUB-ASSY, TAIL GATE, MALE, RH
66105HINGE SUB-ASSY, TAIL GATE, MALE, LH
66321BBUMPER, GATE RUBBER
7751
9015050003
main90150-50003
9015180024
main90151-80024
9015950002
main90159-50002
9016750030
main90167-50030
9017905095
main90179-05095
9017908123
main90179-08123
9017908143
main90179-08143
9020111423
main90201-11423
9111150820
main91111-50820
9165140816
main91651-40816
9165140820
main91651-40820
9166540616
main91665-40616
9327018020
main93270-18020
9327018030
main93270-18030
9433415000
main94334-15000
39 parts on this diagram · 2 diagrams in section
