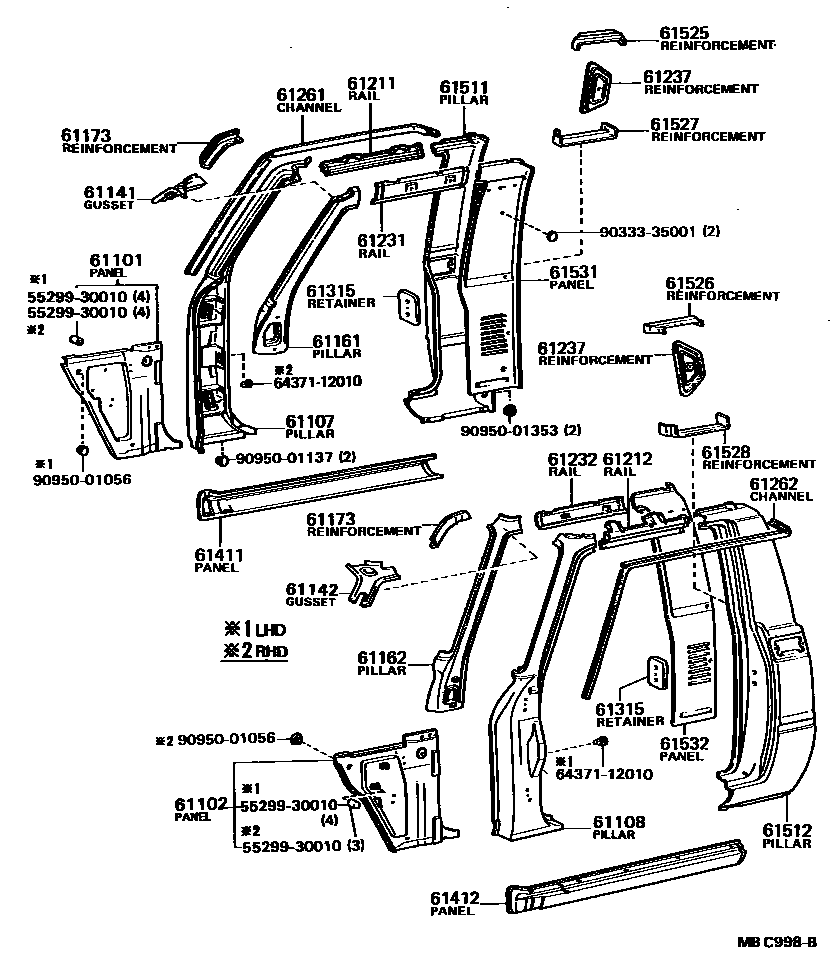

SIDE MEMBER
61101PANEL SUB-ASSY, COWL SIDE, RH
61102PANEL SUB-ASSY, COWL SIDE, LH
61141GUSSET, FRONT PILLAR UPPER CORNER, RH
61142GUSSET, FRONT PILLAR UPPER CORNER, LH
61161PILLAR, FRONT BODY, UPPER INNER RH
61162PILLAR, FRONT BODY, UPPER INNER LH
61173REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER
RH
LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61261CHANNEL, ROOF DRIP, RH
61262CHANNEL, ROOF DRIP, LH
61315RETAINER, DOOR LOCK STRIKER PLATE
LH
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61525REINFORCEMENT, QUARTER LOCK PILLER, UPPER RH
61526REINFORCEMENT, QUARTER LOCK PILLER, UPPER LH
61527REINFORCEMENT, QUARTER LOCK PILLER, LOWER RH
61528REINFORCEMENT, QUARTER LOCK PILLER, LOWER LH
5529930010CAP, TEE NUT(FOR 6MM)
main55299-30010
6437112010RETAINER, PACKAGE TRAY TRIM
main64371-12010
9033335001
main90333-35001
9095001056
main90950-01056
9095001137
main90950-01137
9095001353
main90950-01353
33 parts on this diagram · 2 diagrams in section
