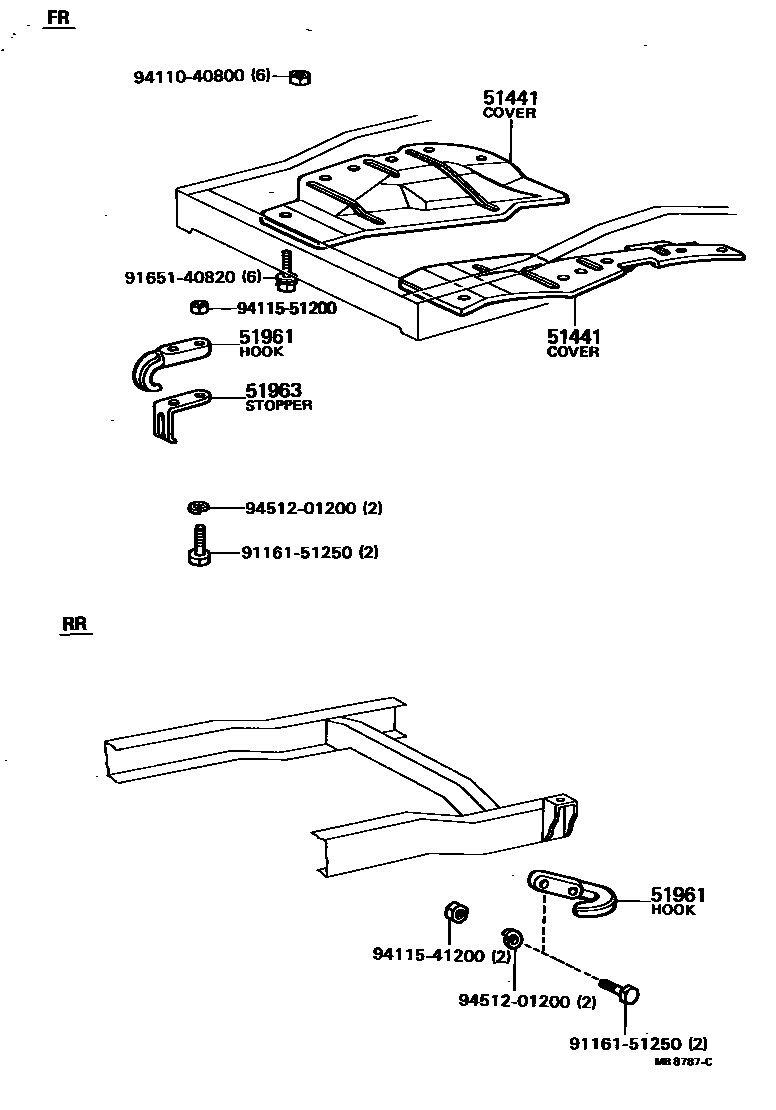

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51441COVER, ENGINE UNDER, NO.1

main51441-35011iRK110197903-198609

RH

main51441-35170iYK110198609-200002

main51442-35051iRK110197903-198609

LH

51961HOOK, NO.1

main51961-60010iRK110197903-198804

main51961-60010iYK110198804-200002

FR

51963STOPPER, HOOK WIRE

main51963-35010iRK110197903-200002

sub51963-35080

9116151250

main91161-51250

9165140820

main91651-40820

9411040800

main94110-40800

9411541200

main94115-41200

9411551200

main94115-51200

9451201200

main94512-01200

9 parts on this diagram · 2 diagrams in section
