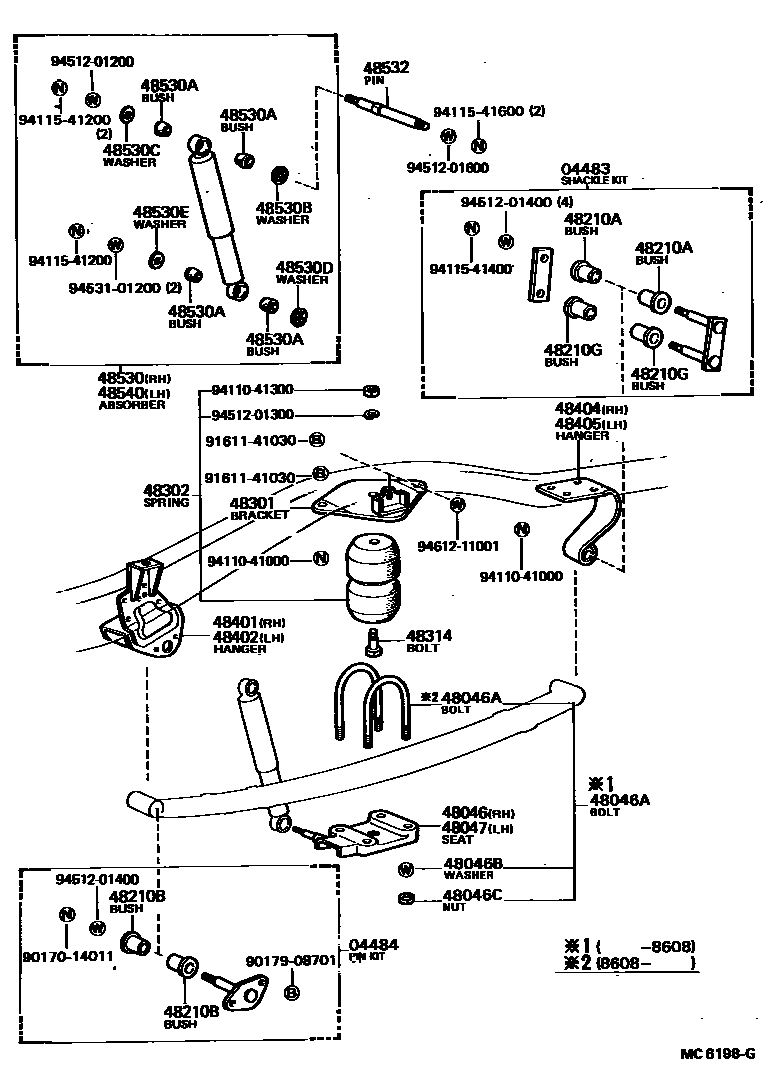

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1

04483SHACKLE KIT, REAR SPRING

main04483-35020iRK110197903-198012

sub04483-35030

main04483-35030iRK110198012-200002

04484PIN KIT, REAR SPRING

main04484-35020iRK110197903-198012

sub04484-35040

main04484-35040iYK110198012-200002

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-35060iRK110..TW;RK110..15T197903-199308

main48046-35070iRK110..175197903-200002

48046ABOLT, U(FOR REAR SPRING)

main90117-14012iRK110..TW;RK110..15T197903-198609

sub90117-14055

main90117-14055iYK110..TW;YK110..15T198804-199308

L=175

sub90117-14004

main90117-16013iRK110..175197903-200002

L=170

48046BWASHER(FOR REAR SPRING U BOLT)

main90201-15012iYK110..TW;YK110..15T198804-199308

main94512-01400iRK110..TW;RK110..15T197903-198609

main94512-01600iRK110..175197903-198609

sub90204-16001

main94621-11600iYK110..175198609-200002

48046CNUT(FOR REAR SPRING U BOLT)

main90170-16139iYK110..175197903-200002

main90179-14023iYK110..TW;YK110..15T198804-199308

main94115-51400iRK110..TW;RK110..15T197903-198609

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48047-35060iRK110..TW;RK110..15T197903-199308

main48047-35070iRK110..175197903-200002

48210SPRING ASSY, REAR RH

main48210-35190iRK110197903-200002

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-18025iRK110197903-200002

48210BBUSH(FOR REAR SPRING PIN)

main90385-18025iRK110197903-200002

48210GBUSH(FOR REAR SPRING SHACKLE LOWER)

main90385-18025iRK110197903-200002

48301BRACKET SUB-ASSY, HOLLOW SPRING

main48301-35010iRK110197903-198609

sub48301-35020

main48301-35020iYK110198609-200002

48302SPRING SUB-ASSY, HOLLOW

main48302-39035iRK110..TW;RK110..15T197903-199308

main48302-39045iYK110..175197903-200002

48314BOLT, HOLLOW SPRING SET

main48314-35010iRK110197903-200002

48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH

main48404-35010iYK110..T1197903-200002

main48404-35020iRK110..TW197903-199308

48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH

main48404-35020iRK110..TW197903-199308

main48407-35010iRK110..T1197903-200002

48404BRACKET SUB-ASSY, REAR SPRING, REAR RH

main48405-35010iRK110197903-200002

48405BRACKET SUB-ASSY, REAR SPRING, REAR LH

main48406-35010iRK110197903-200002

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-39365iRK110197903-200002

sub48531-39366

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16007iRK110197903-200002

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03004iRK110197903-200002

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03003iRK110197903-200002

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03004iRK110197903-200002

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03003iRK110197903-200002

48532PIN, REAR SHOCK ABSORBER PIVOT

main48532-35030iRK110197903-200002

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-39365iRK110197903-200002

sub48531-39366

9017014011

main90170-14011

9017908701

main90179-08701

9161141030

main91611-41030

9411041000

main94110-41000

9411041300

main94110-41300

9411541200

main94115-41200

9411541400

main94115-41400

9411541600

main94115-41600

9451201200

main94512-01200

9451201300

main94512-01300

9451201400

main94512-01400

9451201600

main94512-01600

9453101200

main94531-01200

9461211001

main94612-11001

40 parts on this diagram · 3 diagrams in section
