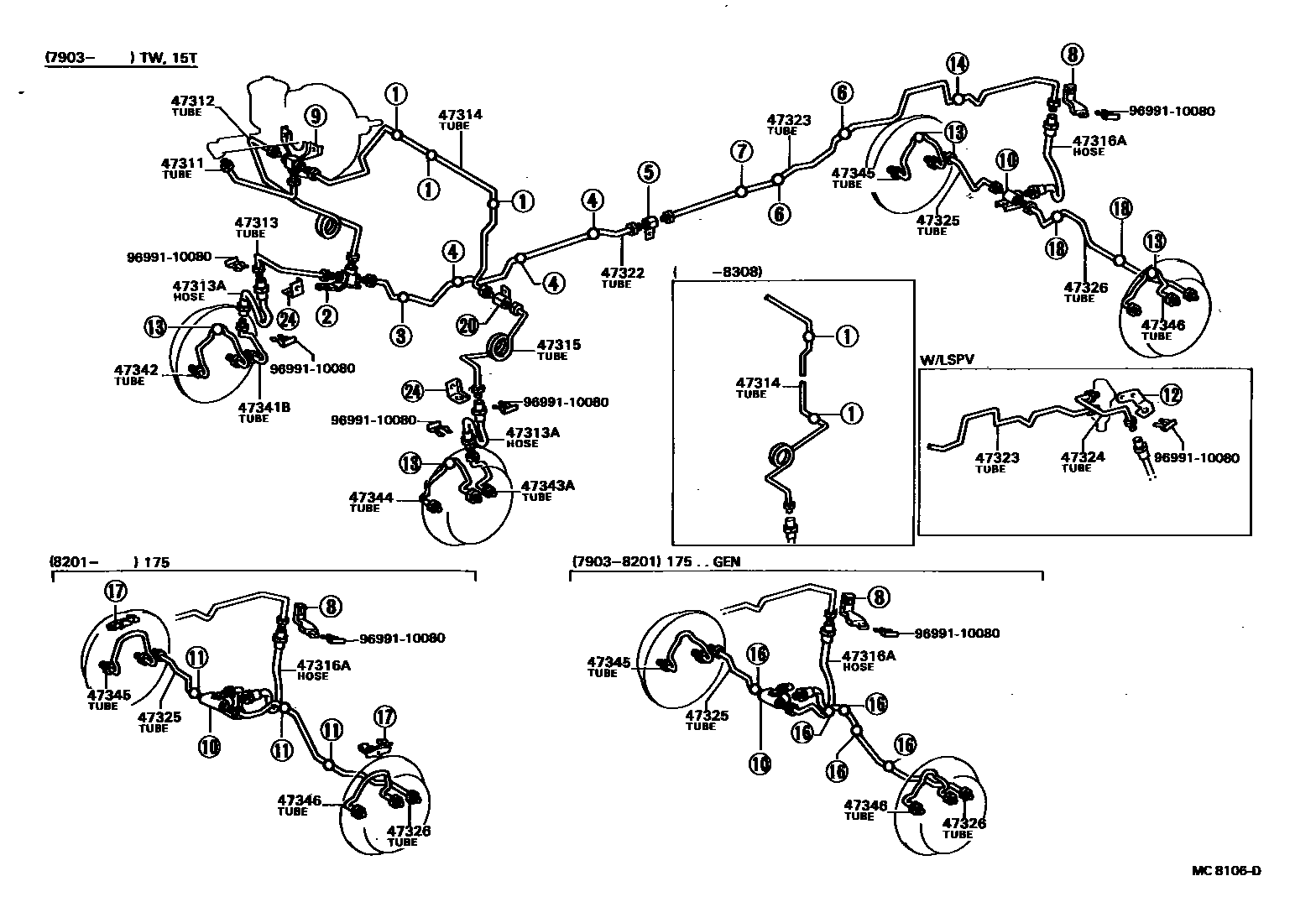

BRAKE TUBE & CLAMP

0001 1 0003 1 0004 1 0009 1 0010 1 0011 1

47311TUBE, FRONT BRAKE, NO.1

main47311-35250iYK110..TW198804-199308

TANDEM M/C, 8INCHES BOOSTER

main47311-35250iYK110..T1..GEN198804-200002

TANDEM M/C, 9INCHES BOOSTER

main47311-35260iRK110..GEN,SA197903-200002

main47311-35280iRK110..RHD..GEN198404-198609

TANDEM MASTER CYLINDER

main47311-35280iRK110..ARL197903-198609

47312TUBE, FRONT BRAKE, NO.2

main47312-35230iRK110..RHD..GEN197903-198609

main47312-35240iRK110..LHD197903-198609

main47312-35520iRK110..ARL,SA198308-198609

main47312-35520iRK110..RHD..GEN198404-198609

TANDEM MASTER CYLINDER

main47312-35750iYK110..RHD..TW198804-199308

TANDEM M/C, 8INCHES BOOSTER

main47312-35750iYK110..SA198804-199308

TANDEM M/C, 9INCHES BOOSTER

main47312-35760iYK110..RHD..GEN198609-199308

main47312-35770iYK110..LHD..T1198804-200002

TANDEM M/C, 9INCHES BOOSTER

main47312-35770iYK110..LHD..TW198804-199308

TANDEM M/C, 8INCHES BOOSTER

main47312-35780iYK110..LHD198609-200002

47313TUBE, FRONT BRAKE, NO.3

main47312-35220iRK110..ARL,SA197903-198308

main47314-35160iRK110..GEN197903-198609

main47314-35210iRK110..ARL,SA198308-198609

main47314-35210iRK110..RHD..GEN198404-198609

TANDEM MASTER CYLINDER

main47314-35210iYK110..SA198804-199308

TANDEM M/C, 8INCHES BOOSTER

main47314-35210iYK110..T1..GEN198804-200002

TANDEM M/C, 9INCHES BOOSTER

main47314-35260iYK110..GEN198609-200002

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main96950-33605iRK110197903-200002

47314TUBE, FRONT BRAKE, NO.4

main47313-35160iRK110..RHD197903-198308

main47313-35170iRK110..LHD197903-198308

main47313-35350iRK110..LHD198308-198609

main47313-35360iRK110..RHD..GEN198404-198609

TANDEM MASTER CYLINDER

main47313-35360iRK110..RHD198308-198609

main47313-35510iYK110..RHD..T1..GEN198804-199308

TANDEM M/C, 8INCHES BOOSTER

main47313-35510iYK110..SA198804-199308

TANDEM M/C, 9INCHES BOOSTER

main47313-35520iYK110..RHD..GEN198609-199308

main47313-35530iYK110..LHD198609-200002

47315TUBE, FRONT BRAKE, NO.5

main47314-35200iRK110..LHD198308-200002

main47314-35220iRK110..RHD198308-198609

main47314-35250iYK110..RHD198609-199308

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02388iRK110..175197903-198201

L=470

main90947-02430iRK110..175198201-198406

L=450

main90947-02464iYK110..175198804-200002

main90947-02464iRK110..175198406-198804

L=450

main96910-34205iRK110..TW;RK110..15T197903-198406

L=420

main96940-34205iYK110..TW;YK110..15T198804-199308

main96940-34205iRK110..TW;RK110..15T198406-198804

L=420

47322TUBE, REAR BRAKE, NO.2

main47322-35110iRK110197903-198609

main47322-35420iYK110198609-200002

47323TUBE, REAR BRAKE, NO.3

main47323-35040iRK110..ARL,GEN197903-198609

main47323-35050iRK110197903-198609

W(LSPV)

main47323-35130iYK110..GEN198804-200002

main47323-35140iYK110..SA198804-199308

main47323-35140iYK110..GEN198804-200002

W(LSPV)

47324TUBE, REAR BRAKE, NO.4

main47323-35020iRK110197903-198804

W(LSPV)

main47323-35020iYK110198804-200002

47325TUBE, REAR BRAKE, NO.5

main47324-35040iYK110..TW;YK110..15T197903-199308

main47324-35050iRK110..175198201-200002

main47329-36020iRK110..175197903-198201

47326TUBE, REAR BRAKE, NO.6

main47325-35050iRK110..TW;RK110..15T197903-199308

main47325-35060iYK110..175198201-200002

main47331-36050iRK110..175197903-198201

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47341-35050iRK110197903-200002

47342TUBE, WHEEL CYLINDER, FRONT RH NO.2

main47342-25011iRK110197903-200002

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47343-35050iYK110197903-200002

47344TUBE, WHEEL CYLINDER, FRONT LH NO.2

main47344-25011iRK110197903-200002

47345TUBE, WHEEL CYLINDER, REAR RH

main47345-25030iYK110..TW197903-199308

main47345-36010iRK110..175197903-198105

sub47345-36011

main47345-36011iRK110..175198105-200002

47346TUBE, WHEEL CYLINDER, REAR LH

main47345-25030iYK110..TW197903-199308

main47345-36010iRK110..175197903-198105

sub47345-36011

main47345-36011iRK110..175198105-200002

9699110080

main96991-10080

19 parts on this diagram · 6 diagrams in section
