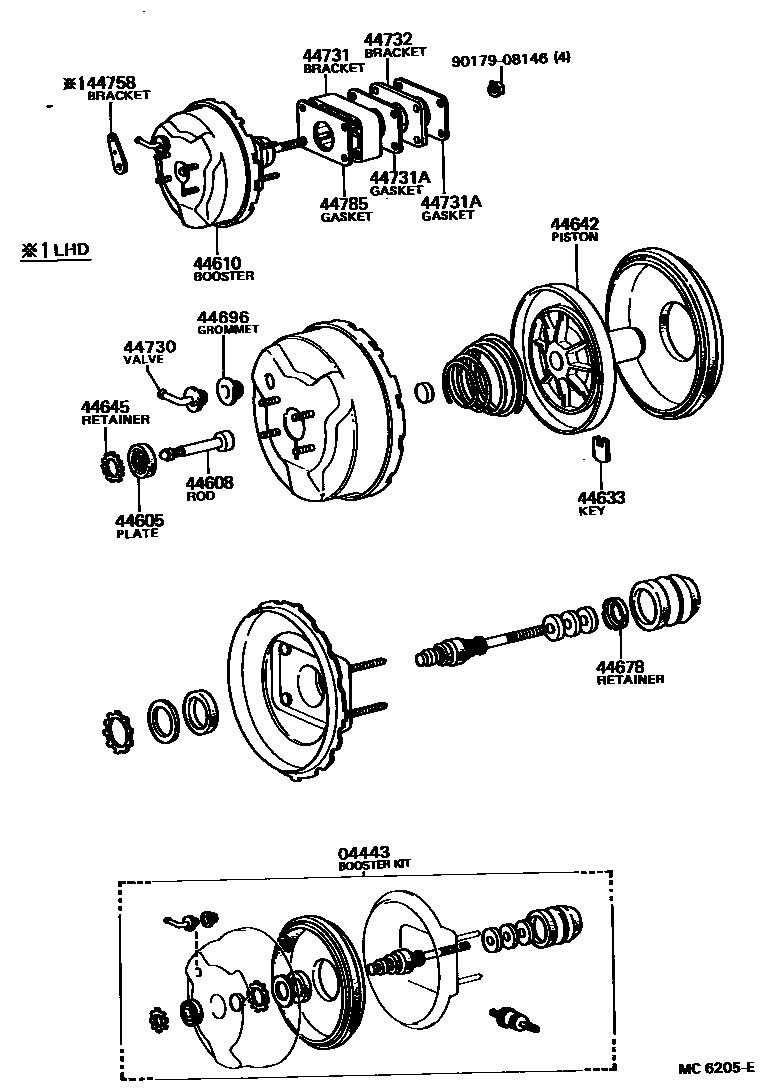

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

04443BOOSTER KIT, BRAKE

main04443-35170iRK110..RHD..TW197903-198609

JKC,7.5INCHES

main04443-35180iRK110..LHD..TW197903-198609

JKC,7.5INCHES

main04443-35190iRK110..RHD..T1197903-198609

JKC,9INCHES

main04443-35200iRK110..LHD..T1197903-198609

JKC,9INCHES

main04443-35660iYK110..RHD..TW198804-199308

main04443-35670iYK110..RHD..T1198804-199308

main04443-35680iYK110..LHD..TW198804-199308

main04443-35690iYK110..LHD..T1198804-200002

44605PLATE & SEAL SUB-ASSY, BOOSTER

main44605-10080iYK110198609-200002

main44605-22021iRK110197903-198609

sub44605-10080

44608PUSH ROD SUB-ASSY, BOOSTER

main44608-14040iRK110..TW197903-198804

main44608-22090iRK110..T1197903-198609

main44608-32020iYK110198609-200002

44610BOOSTER ASSY, BRAKE

main44610-35210iRK110..RHD..TW197903-198609

JKC,7.5INCHES

main44610-35220iRK110..LHD..TW197903-198609

JKC,7.5INCHES

main44610-35230iRK110..RHD..T1197903-198609

JKC,9INCHES

main44610-35240iRK110..LHD..T1197903-198609

JKC,9INCHES

main44610-3D020iYK110..RHD..TW198804-199308

main44610-3D030iYK110..RHD..T1198804-199308

main44610-3D040iYK110..LHD..TW198804-199308

main44610-3D050iYK110..LHD..T1198804-200002

44633KEY, BOOSTER VALVE PLUNGER

main44633-22020iRK110197903-198609

main44633-28130iYK110198609-200002

44642PISTON, BRAKE BOOSTER

main44642-20140iRK110..TW197903-198609

main44642-25080iRK110..T1197903-198609

44645RETAINER, BOOSTER PUSH ROD SEAL

main44645-10080iYK110198609-200002

main44645-22020iRK110197903-198609

44678RETAINER, BOOSTER AIR CLEANER

main44678-22020iRK110197903-198609

44696GROMMET, CHECK VALVE

main90480-24438iRK110..LHD197903-198410

sub90480-24517

main90480-24517iYK110..LHD198410-200002

sub90480-24015

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-10010iYK110..RHD198609-199308

main44730-20010iRK110..RHD197903-198609

main44730-22090iRK110..LHD197903-200002

44731BRACKET, BRAKE BOOSTER, FRONT

main44731-35070iRK110197903-200002

44731AGASKET, BRAKE BOOSTER BRACKET

main44785-35011iRK110197903-200002

44732BRACKET, BRAKE BOOSTER, REAR

main44732-35040iRK110197903-200002

44758BRACKET, VACUUM CHECK VALVE

main44758-20060iRK110..LHD197903-198609

main44758-28020iYK110..LHD198609-200002

main44758-35050iRK110..RHD197903-198609

main44758-35070iYK110..RHD198609-199308

44785GASKET, BRAKE BOOSTER

main44785-35011iRK110197903-200002

9017908146

main90179-08146

16 parts on this diagram · 3 diagrams in section
