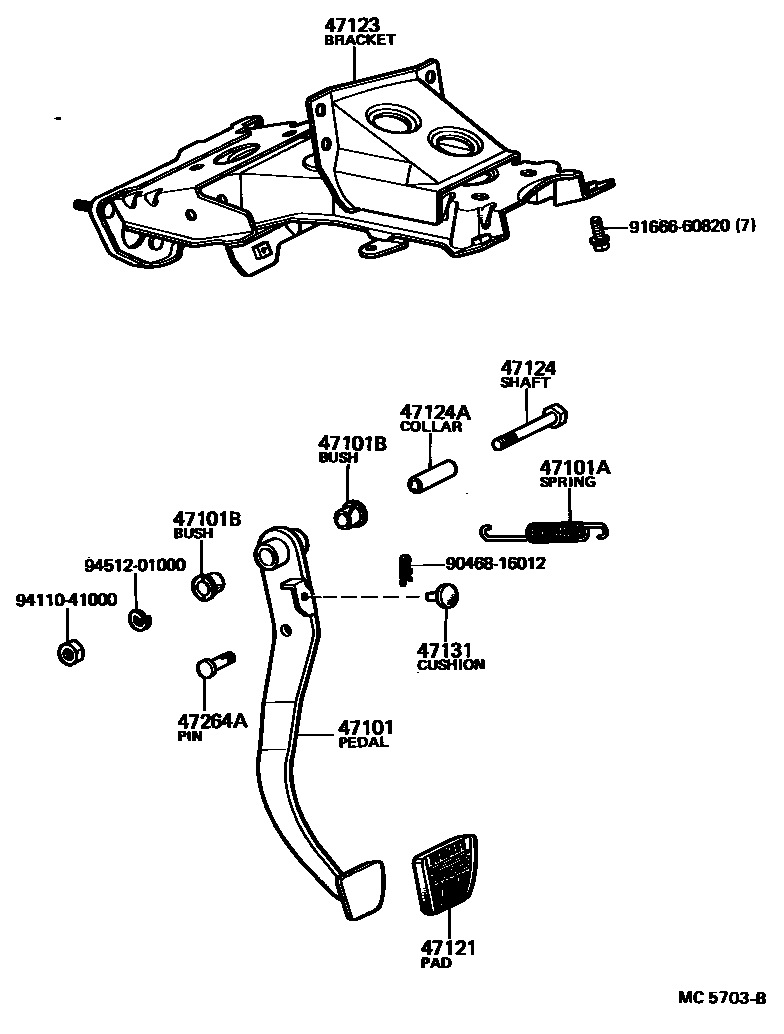

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-35150iYK110..RHD197903-199308

main47101-35160iRK110..LHD197903-198008

main47101-35180iRK110..LHD198008-200002

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-16024iRK110197903-200002

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007iRK110197903-200002

47121PAD, BRAKE PEDAL

main31321-14010iRK110197903-198310

main31321-14020iRK110198310-200002

47123BRACKET, BRAKE PEDAL

main55106-89111iRK110..RHD197903-198108

main55106-89112iRK110..LHD197903-198108

main55106-89114iRK110..LHD198108-200002

main55106-89117iRK110..RHD198108-199308

47124SHAFT, BRAKE PEDAL

main90101-10480iYK110..LHD197903-200002

sub91552-81090

main91121-51060iYK110..RHD197903-199308

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main47144-35020iRK110..LHD197903-198308

main90387-10003iYK110..RHD197903-199308

main90387-10128iRK110..LHD198308-200002

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iRK110197903-200002

47264APIN(FOR PUSH ROD)

main90249-10048iRK110197903-200002

9046816012

main90468-16012

9166660820

main91666-60820

9411041000

main94110-41000

9451201000

main94512-01000

13 parts on this diagram · 2 diagrams in section
