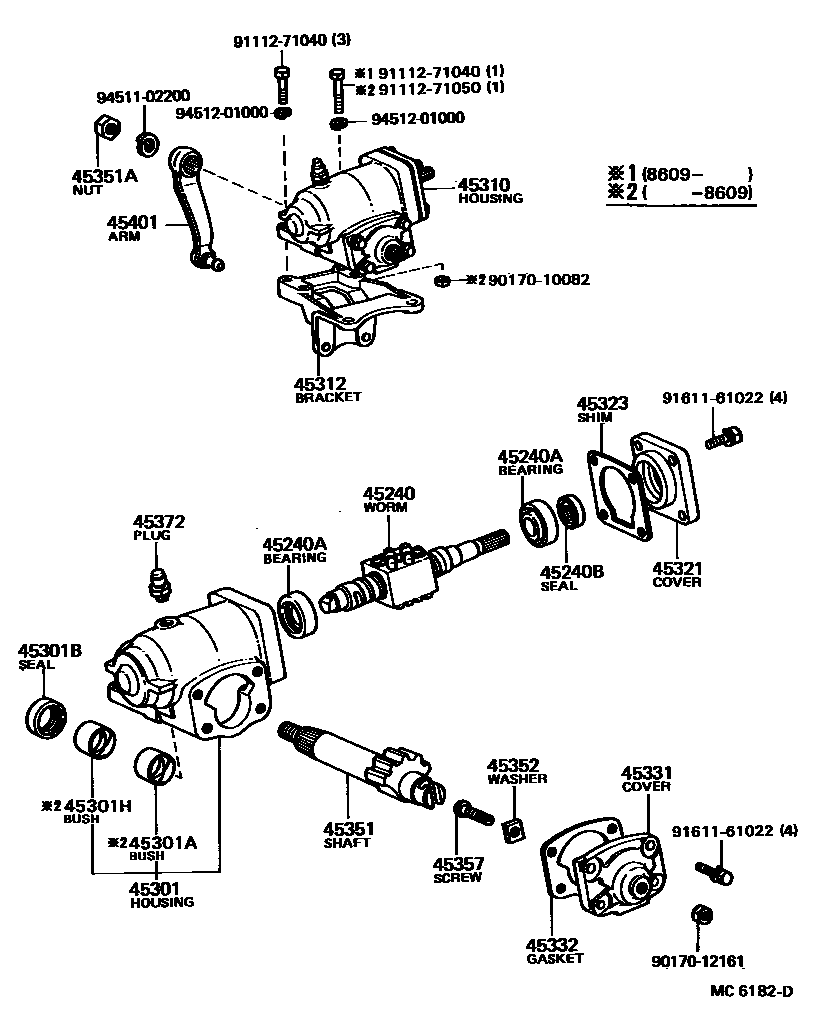

FRONT STEERING GEAR & LINK

0001 1 0002 1

45240WORM ASSY, STEERING

main45240-36030iRK110..RHD197903-198008

sub45240-36031

main45240-36031iRK110..RHD198008-199308

main45240-36040iRK110..LHD197903-198008

sub45240-36041

main45240-36041iRK110..LHD198008-200002

45240ABEARING(FOR STEERING WORM)

main90363-20024iYK110198105-200002

main90363-20062iRK110197903-198105

sub90363-20003

45240BSEAL, OIL(FOR STEERING WORM)

main90311-18001iRK110197903-198612

sub90311-18010

main90311-18010iYK110198612-200002

45301HOUSING SUB-ASSY, STEERING GEAR

main45301-35110iRK110..RHD197903-199308

main45301-35120iYK110..LHD197903-200002

45301ABUSH OR BEARING, SECTOR SHAFT, NO.1

main90999-73061iRK110197903-198609

45301BSEAL, OIL(FOR SECTOR SHAFT)

main90310-32024iRK110197903-198612

sub90310-32005

main90311-32014iYK110198712-200002

45301HBUSH OR BEARING, SECTOR SHAFT, NO.2

main90999-73061iRK110197903-198609

45310HOUSING ASSY, STEERING GEAR

main45310-35100iRK110..RHD197903-198008

sub45310-35101

main45310-35101iRK110..RHD198008-199308

main45310-35110iRK110..LHD197903-198008

sub45310-35111

main45310-35111iYK110..LHD198008-200002

45312BRACKET, STEERING GEAR HOUSING

main45312-35070iRK110..RHD197903-198609

main45312-35071iYK110..RHD198609-199308

main45312-35080iRK110..LHD197903-198609

main45312-35081iYK110..LHD198609-200002

45321COVER, GEAR HOUSING END

main45321-36020iRK110197903-200002

45323SHIM, GEAR HOUSING END COVER

main45323-36010iYK110198804-200002

T=0.045-0.055

main45323-36010iRK110197903-198804

T=0.045-0.055,T=0.045-0.055

main45323-36020iRK110197903-198804

T=0.065-0.075,T=0.065-0.075

main45323-36020iYK110198804-200002

T=0.065-0.075

main45323-36030iRK110197903-198804

T=0.072-0.088,T=0.072-0.088

sub45323-36020

main45323-36030iYK110198804-200002

T=0.072-0.088

sub45323-36020

main45323-36040iRK110197903-198804

T=0.092-0.108,T=0.092-0.108

main45323-36040iYK110198804-200002

T=0.092-0.108

main45323-36050iYK110198804-200002

T=0.185-0.215

main45323-36050iRK110197903-198804

T=0.185-0.215,T=0.185-0.215

main45323-36060iRK110197903-198804

T=0.485-0.515,T=0.485-0.515

main45323-36060iYK110198804-200002

T=0.485-0.515

main45323-36070iRK110197903-198804

T=0.055-0.065,T=0.055-0.065

sub45323-36010

main45323-36070iYK110198804-200002

T=0.055-0.065

sub45323-36010

main45323-36080iRK110197903-198804

T=0.082-0.098,T=0.082-0.098

sub45323-36040

main45323-36080iYK110198804-200002

T=0.082-0.098

sub45323-36040

45331COVER, SECTOR SHAFT END

main45304-36020iRK110197903-200002

45332GASKET, SECTOR SHAFT END COVER

main45332-36010iRK110197903-200002

45351SHAFT, STEERING SECTOR

main45351-35090iRK110198508-200002

main45351-36020iRK110197903-198508

45351ANUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)

main90170-22058iRK110197903-200002

45352WASHER, SECTOR SHAFT THRUST

main45352-36010iRK110197903-198508

T=2.00,T=2.00

main45352-37010iYK110198804-200002

T=1.95

main45352-37010iRK110198508-198804

T=1.95,T=1.95

main45353-36010iRK110197903-198508

T=2.05,T=2.05

main45353-37010iYK110198804-200002

T=2.00

main45353-37010iRK110198508-198804

T=2.00,T=2.00

main45354-36010iRK110197903-198508

T=2.10,T=2.10

main45354-37010iRK110198508-198804

T=2.05,T=2.05

main45354-37010iYK110198804-200002

T=2.05

main45355-36010iRK110197903-198508

T=2.15,T=2.15

main45356-36010iRK110197903-198508

T=2.20,T=2.20

45357SCREW, SECTOR SHAFT ADJUSTING

main45357-36010iYK110198508-200002

sub45357-37020

main45357-36020iRK110197903-198508

45372PLUG, STEERING GEAR HOUSING OIL

main90930-03058iRK110197903-200002

45401ARM SUB-ASSY, PITMAN

main45401-35090iRK110..RHD197903-199308

main45401-35100iRK110..LHD197903-200002

9017010082

main90170-10082

9017012161

main90170-12161

9111271040

main91112-71040

9111271050

main91112-71050

9161161022

main91611-61022

9451102200

main94511-02200

9451201000

main94512-01000

26 parts on this diagram · 2 diagrams in section
