STEERING WHEEL

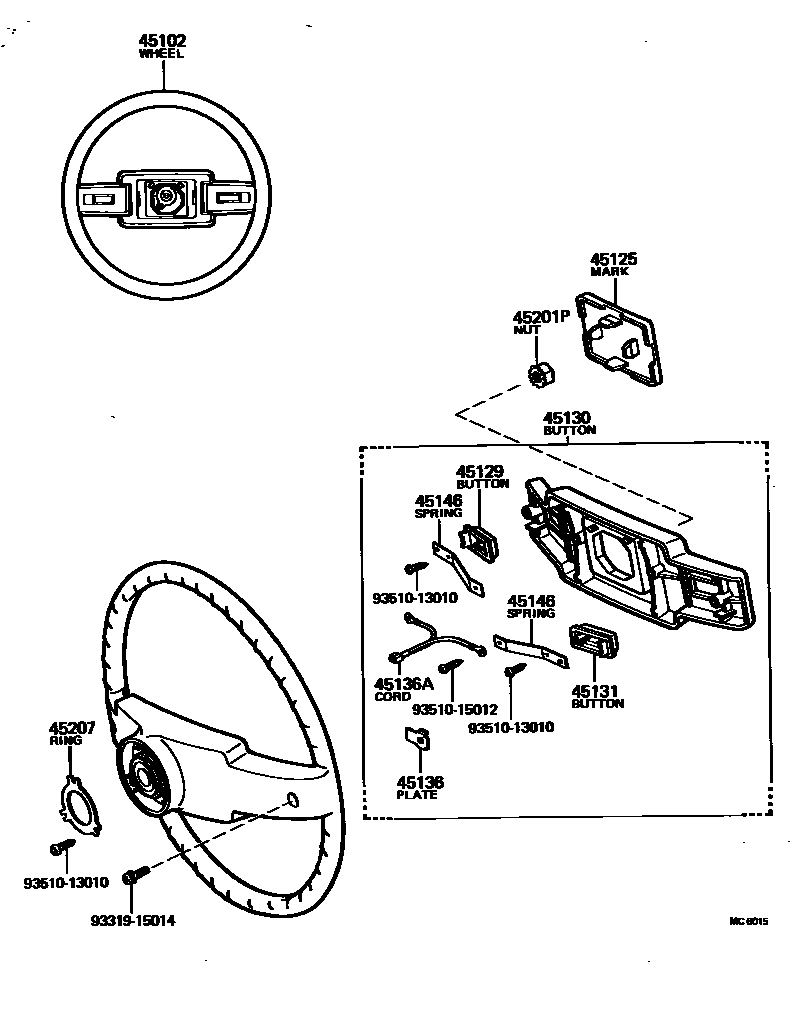

Parts diagram
45102WHEEL SUB-ASSY, STEERING
main45100-35181-01i198108-198609
BLACK,BLACK
sub45100-35181
main45100-35181-04i198108-198609
BLUE,BLUE
sub45100-35181
main45100-35181-06i198108-198609
BROWN,BROWN
sub45100-35181
main45100-35190-01i197903-198108
BLACK,BLACK
sub45100-35181
main45100-35190-04i197903-198108
BLUE,BLUE
sub45100-35181
main45100-35190-05i197903-198108
BEIGE,BEIGE
sub45100-35181
main45100-35261-04i198804-200002
BLUE,TRIM8#
main45100-35261-06i198804-200002
BROWN,TRIM4#
45125MARK, STEERING WHEEL PAD
main45125-35060-01i197903-198609
BLACK,BLACK
sub45125-35060
main45125-35060-04i197903-198609
BLUE,BLUE
sub45125-35060
main45125-35060-05i197903-198108
BEIGE,BEIGE
sub45125-35060
main45125-35060-06i198108-198609
DARK BROWN,BROWN
sub45125-35060
main45125-35160-04i198804-199308
BLUE,TRIM8#
sub45125-35160
main45125-35160-06i198804-199308
BROWN,TRIM4#
sub45125-35160
45129BUTTON, HORN, NO.2
main45131-35091i198108-198609
main45131-35100i197903-198108
sub45131-35091
main45131-35140-04i198804-199308
BLUE,TRIM8#
sub45131-35140
main45131-35140-06i198804-199308
BROWN,TRIM4#
sub45131-35140
45130BUTTON ASSY, HORN
main45130-35141-01i198108-198609
BLACK,BLACK
sub45130-35141
main45130-35141-04i198108-198609
BLUE,BLUE
sub45130-35141
main45130-35141-06i198108-198609
BROWN,BROWN
sub45130-35141
main45130-35150-01i197903-198108
BLACK,BLACK
sub45130-35141
sub45130-35150
main45130-35150-04i197903-198108
BLUE,BLUE
sub45130-35141
sub45130-35150
main45130-35150-05i197903-198108
BEIGE,BEIGE
sub45130-35141
sub45130-35150
main45130-35210-04i198804-200002
BLUE,TRIM8#
sub45130-35210
main45130-35210-06i198804-200002
BROWN,TRIM4#
sub45130-35210
45131BUTTON, HORN, NO.1
main45131-35091i198108-198609
main45131-35100i197903-198108
sub45131-35091
main45131-35140-04i198804-199308
BLUE,TRIM8#
sub45131-35140
main45131-35140-06i198804-199308
BROWN,TRIM4#
sub45131-35140
45136PLATE, HORN BUTTON CONTACT
main45136-26020i197903-200002
45136ACORD(FOR HORN CONTACT RING)
main90945-02040i197903-200002
45146SPRING, HORN BUTTON CONTACT
main45146-35050i197903-200002
45201PNUT, STEERING WHEEL SET
main90179-12071i199306-200002
main90179-12086i197903-199306
45207RING, HORN CONTACT
main45176-20030i197903-200002
9331915014
main93319-15014
9351013010
main93510-13010
9351015012
main93510-15012

13 parts on this diagram · 1 diagram in section
