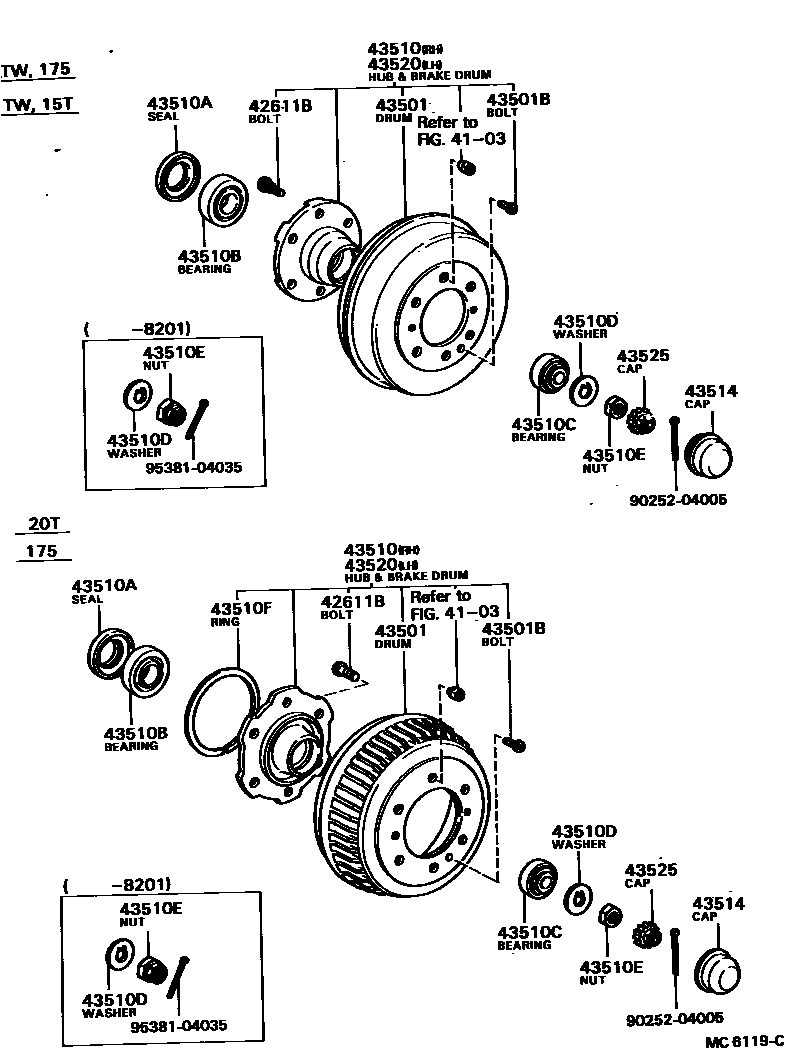

FRONT AXLE HUB

4103

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02024iRK110..175197903-200002

RH

main90942-02025iYK110..175197903-200002

LH

main90942-02038iRK110..TW;RK110..15T197903-199308

43501DRUM SUB-ASSY, FRONT BRAKE

main43512-25010iYK110..TW;YK110..15T197903-199308

main43512-35060iYK110..175197903-200002

43501BBOLT, SET (FOR FRONT BRAKE DRUM SETTING)

main90113-10035iYK110197903-200002

43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-25030iYK110..TW;YK110..15T197903-199308

main43510-35080iRK110..175197903-200002

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-50003iRK110197903-200002

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90366-35004iYK110197903-200002

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-22007iYK110197903-200002

sub90366-22002

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-23004iRK110197903-200002

43510ENUT (FOR STEERING KNUCKLE)

main90170-22003iYK110198201-200002

main90171-22017iRK110197903-198201

43510FRING, SHAFT SNAP (FOR FRONT AXLE HUB)

main90520-99065iRK110..175197903-200002

T=1.60

43514CAP, FRONT HUB GREASE

main43514-25010iRK110198201-200002

main43514-36010iRK110197903-198201

43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

main43510-25030iRK110..TW;RK110..15T197903-199308

main43520-35020iRK110..175197903-200002

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-25010iRK110198201-200002

9025204005

main90252-04005

9538104035

main95381-04035

16 parts on this diagram · 1 diagram in section
