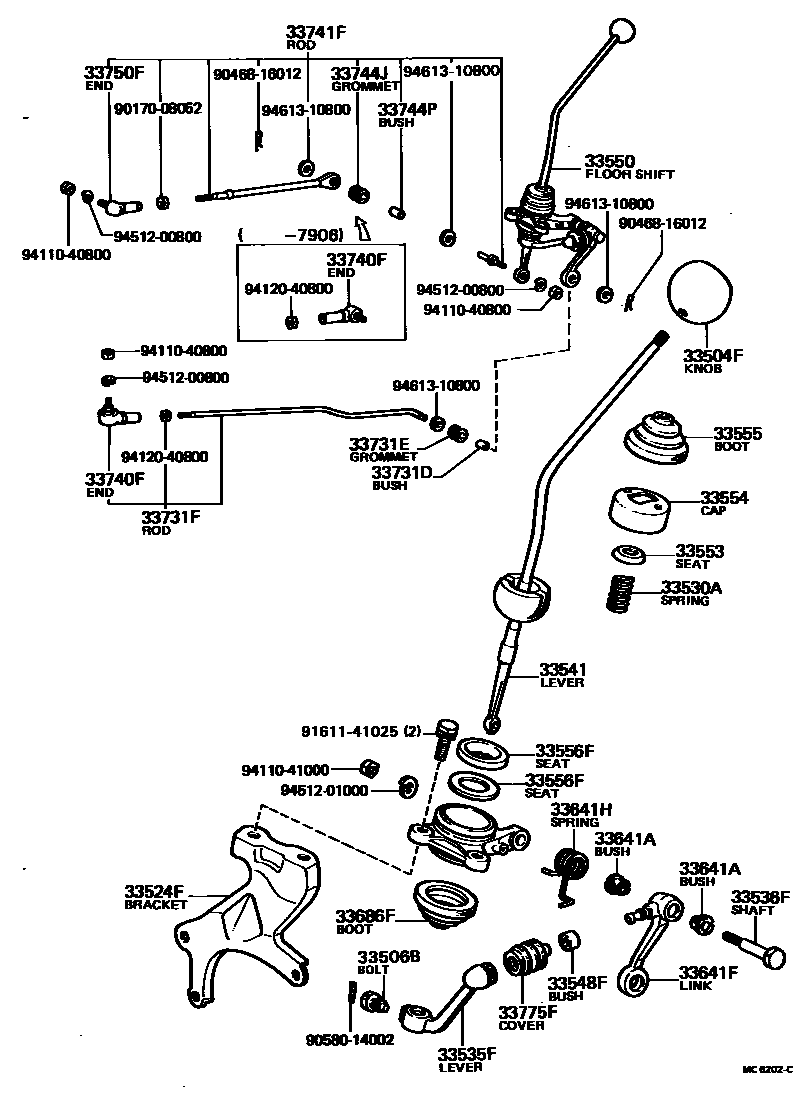

SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
33506BWASHER, PLATE (FOR CONTROL SHIFT LEVER RETAINER)
33524FBRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT)
33530ASPRING, COMPRESSION (FOR SHIFT LEVER)
33535FLEVER, CONTROL SELECT (FOR FLOOR SHIFT)
33536FSHAFT, CONTROL SELECT LEVER (FOR FLOOR SHIFT)
33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33550FLOOR SHIFT ASSY, TRANSMISSION
33553SEAT, SHIFT LEVER SPRING
33554CAP, SHIFT LEVER
33555BOOT, SHIFT LEVER
33556FSEAT, TRANSMISSION SHIFT LEVER BALL
T=5.2
T=3.2
33641ABUSH (FOR SELECTING LINK)
33641FLINK, SELECTING (FOR FLOOR SHIFT)
33641HSPRING (FOR SELECTING LINK)
33686FBOOT, CONTROL SHAFT DUST (FOR FLOOR SHIFT RETAINER)
33731DBUSH (FOR GEAR SELECTING ROD)
33731EGROMMET (FOR GEAR SELECTING ROD)
33731FROD, GEAR SELECTING, NO.1 (FOR FLOOR SHIFT)
33740FEND ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT)
33741FROD, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)
33744JGROMMET(FOR SHIFTING, NO.1)
33744PBUSH (FOR SHIFTING, NO.1)
33750FEND, CONNECTING ROD, NO.2 (FOR FLOOR SHIFT)
33775FCOVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT)
9017008052
9046816012
9058014002
9161141025
9411040800
9411041000
9412040800
9451200800
9451201000
9461310800
36 parts on this diagram · 2 diagrams in section
