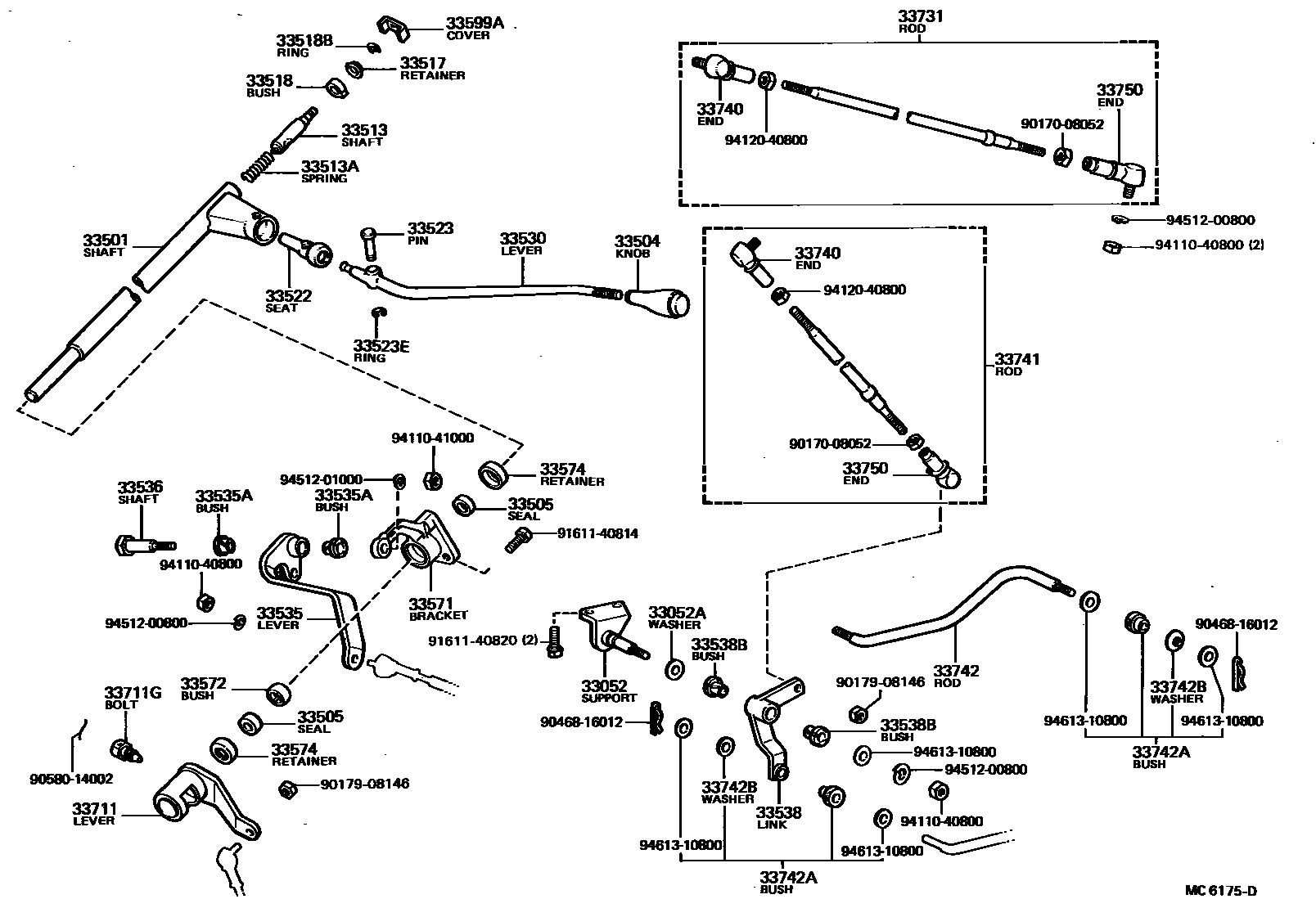

CONTROL SHAFT & CROSSSHAFT
33052SUPPORT SUB-ASSY, SHIFTING BELLCRANK
33052AWASHER, PLATE(FOR SHIFTING BELLCRANK SUPPORT)
33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)
33504KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT)
33505SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT)
33513SHAFT, CONTROL SHAFT BRACKET, UPPER
33513ASPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)
33517RETAINER, CONTROL SHAFT UPPER SPRING
33518BUSH, UPPER CONTROL SHAFT PIECE
33518BRING, E (FOR UPPER CONTROL SHAFT PIECE BUSH)
33522SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT)
33523PIN, SHIFT LEVER (FOR COLUMN SHIFT)
33523ERING, E (FOR SHIFT LEVER PIN)
33530LEVER ASSY, SHIFT (FOR COLUMN SHIFT)
33535LEVER, CONTROL SELECT (FOR COLUMN SHIFT)
33535ABUSH (FOR CONTROL SELECT LEVER)
33536SHAFT, CONTROL SELECT LEVER (FOR COLUMN SHIFT)
33538LINK, SHIFTING LEVER
33538BBUSH (FOR SHIFTING LEVER LINK)
33571BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT)
33572BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT)
33574RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT)
33599ACOVER, UPPER BRACKET
33711LEVER, CONTROL SHAFT (FOR COLUMN SHIFT)
33711GBOLT, CONTROL SHAFT LEVER LOCK
33742ROD, GEAR SHIFTING, NO.2(FOR COLUMN SHIFT)
33742ABUSH(FOR SHIFTING ROD NO.2)
33742BWASHER, WAVE(FOR SHIFTING NO.2 ROD)
9017008052
main90170-08052
9017908146
main90179-08146
9046816012
main90468-16012
9058014002
main90580-14002
9161140814
main91611-40814
9161140820
main91611-40820
9411040800
main94110-40800
9411041000
main94110-41000
9412040800
main94120-40800
9451200800
main94512-00800
9451201000
main94512-01000
9461310800
main94613-10800
44 parts on this diagram · 2 diagrams in section
