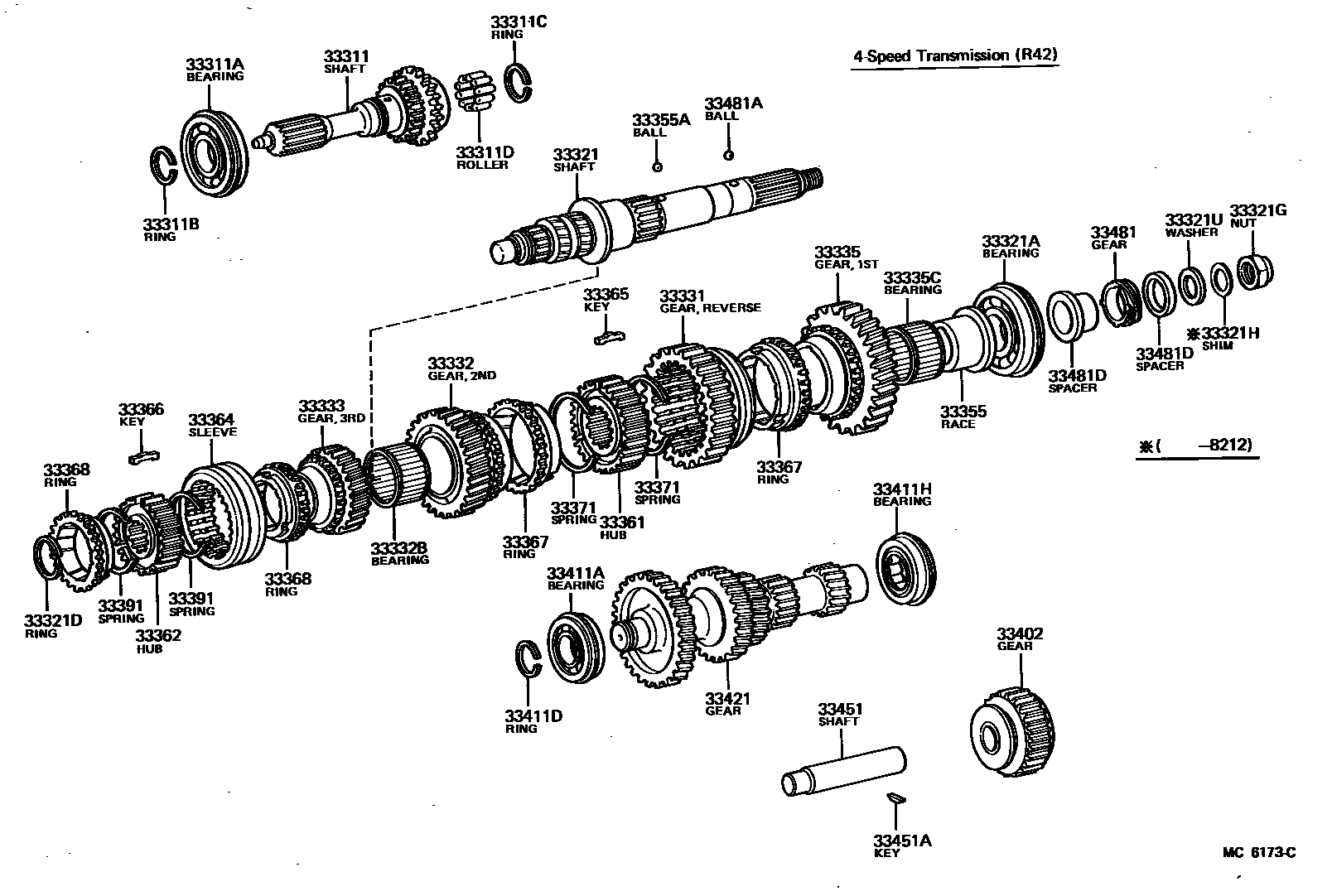

TRANSMISSION GEAR (MTM)
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=2.25-2.35
T=2.35-2.45
T=2.10,MARK A
T=2.15,MARK B
T=2.20,MARK C
T=2.25,MARK D
T=2.30,MARK E
T=2.35,MARK F
T=2.40,MARK G
33311CRING, HOLE SNAP (FOR NEEDLE ROLLER)
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
T=1.80,MARK A
T=1.85,MARK B
T=1.90,MARK C
T=1.95,MARK D
T=2.00,MARK E
T=2.05,MARK F
T=2.10,MARK G
T=2.05,MARK 0,T=2.05-2.10
T=2.10,MARK 1,T=2.10-2.15
T=2.15,MARK 2,T=2.15-2.20
T=2.20,MARK 3,T=2.20-2.25
T=2.25,MARK 4,T=2.25-2.30
T=2.00-2.05
33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
33321HSHIM (FOR OUTPUT SHAFT REAR BEARING)
33321UWASHER (FOR MANUAL TRANSMISSION OUTPUT SHAFT SET)
33331GEAR, REVERSE
33355RACE, 1ST GEAR BEARING INNER
33355AKEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK
33362HUB, TRANSMISSION CLUTCH, NO.2
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
2ND GEAR SIDE
1ST GEAR SIDE
33368RING, SYNCHRONIZER, NO.2
3RD GEAR SIDE
4TH GEAR SIDE
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33402GEAR SUB-ASSY, REVERSE IDLER
33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1
T=2.20-2.25,T=2.20-2.25
T=2.30-2.35,T=2.30-2.35
T=2.40-2.45,T=2.40-2.45
T=1.07,OD=62
33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)
33421GEAR, COUNTER
sub33421-25031
sub90520-20066
sub90520-20067
sub90520-20068
sub90520-20069
sub90520-20070
sub90520-20071
sub90520-20072
sub90520-20073
sub90520-23057
sub90520-23058
sub90520-23059
sub90520-23060
sub90520-23061
sub90520-23062
sub33421-25032
sub33421-25041
sub90520-20066
sub90520-20067
sub90520-20068
sub90520-20069
sub90520-20070
sub90520-20071
sub90520-20072
sub90520-20073
sub90520-23057
sub90520-23058
sub90520-23059
sub90520-23060
sub90520-23061
sub90520-23062
33451AKEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT)
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=4
33481AKEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)
33481DSPACER (FOR SPEEDOMETER DRIVE GEAR)
RR
FR
FR
RR
FR
38 parts on this diagram · 3 diagrams in section
