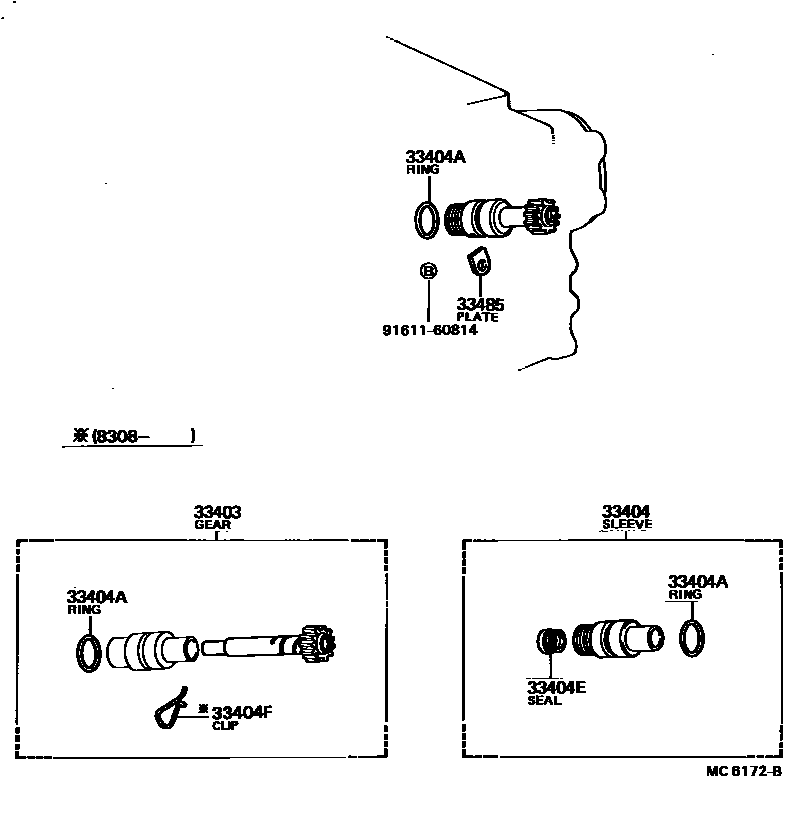

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-29225iYK110..TW198804-199308

N=34

main33403-39045iRK110..TW197903-198308

N=17,MARK 17:4,N=17

main33403-39055iRK110..T1197903-198308

N=16

main33403-39165iYK110..T1198804-200002

N=32,MARK 32:8

main33482-39095iRK110..T1198308-198609

N=16,MARK 16:4,N=16

main33482-39105iRK110..TW198308-198609

N=17,MARK 17:4,N=17

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-22010iYK110198609-200002

main33404-30040iRK110197903-198308

main33404-35010iRK110198308-198609

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iRK110197903-198609

main96711-24030iYK110198609-200002

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iYK110197903-200002

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iRK110198308-200002

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30020iRK110197903-200002

9161160814

main91611-60814

7 parts on this diagram · 1 diagram in section
