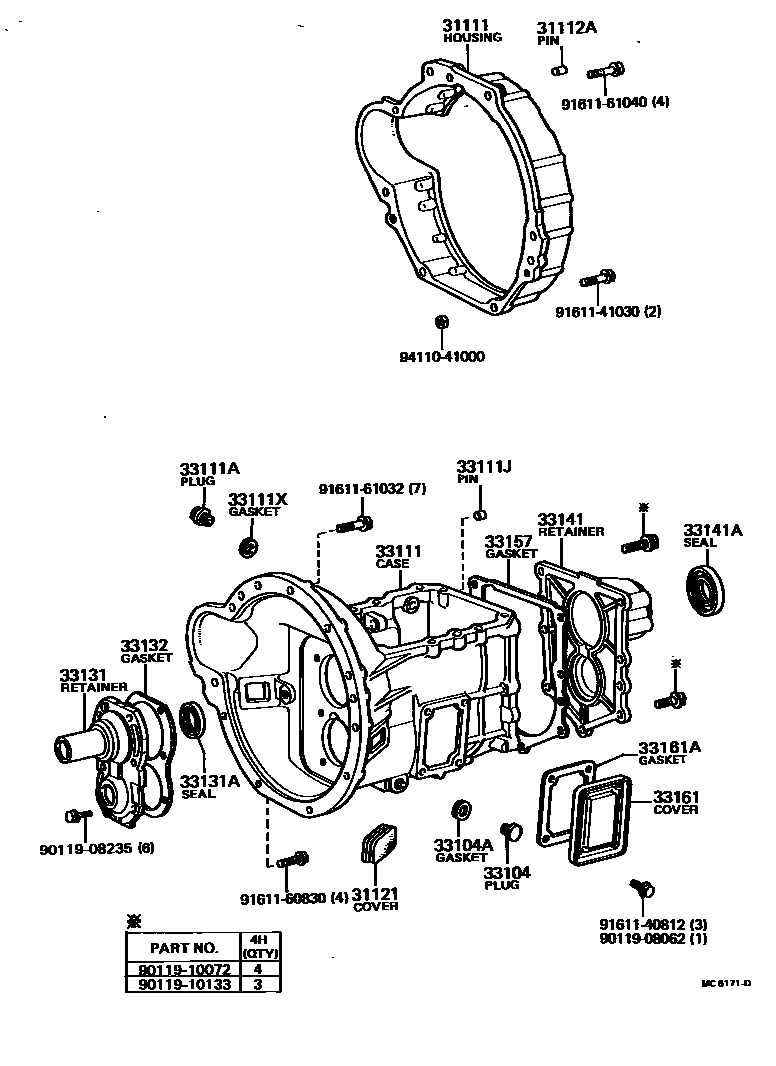

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1

31111HOUSING, CLUTCH

main31111-25040iYK110198609-200002

main31112-25020iRK110197903-198609

31112APIN, DOWEL CLUTCH HOUSING

main90250-10052iRK110197903-198609

31121COVER, CLUTCH HOUSING, NO.1

main31121-25021iRK110197903-198609

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iYK110198804-200002

main90341-18081iRK110197903-198609

33104AGASKET, DRAIN PLUG(MTM)

main12157-10010iRK110197903-198108

main90430-18007iRK110198108-198408

sub90430-18008

main90430-18008iRK110198408-200002

33111CASE, MANUAL TRANSMISSION

main33101-25010iYK110..4H198804-199308

sub33101-25H01

sub33101-25H02

main33101-35040iYK110..4F198804-199405

sub33101-35H01

main33101-35090iYK110199405-200002

main33111-25050iRK110197903-198609

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18002iRK110197903-198212

main90341-18006iRK110198212-200002

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-10214iRK110197903-198609

L=14,OD=10

main90250-12002iYK110198804-200002

L=16,OD=12

33111XGASKET, TRANSMISSION CASE PLUG

main12157-10010iRK110197903-198108

main90430-18007iRK110198108-198408

sub90430-18008

main90430-18008iRK110198408-200002

33131RETAINER, BEARING, FRONT(MTM)

main33131-35011iRK110197903-198609

main33131-35030iYK110198609-199008

sub33131-35031

main33131-35031iYK110199008-200002

sub33131-35032

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-28004iRK110197903-198609

main90311-32012iYK110198609-200002

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-25010iRK110197903-198609

33141RETAINER, TRANSMISSION BEARING, REAR

main33141-25020iRK110197903-198308

sub33141-25021

sub33404-35010

sub33482-29035

sub33482-39035

sub33482-39095

sub33482-39105

sub33482-39115

sub33485-30020

main33141-25021iRK110198308-198609

33141ASEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER)

main90311-38093iRK110197903-198609

33157GASKET, TRANSMISSION CASE, NO.2

main33142-25010iRK110197903-198609

33161COVER, MANUAL TRANSMISSION POWER TAKE-OFF

main33161-25010iRK110197903-200002

33161AGASKET, TRANSMISSION POWER TAKE-OFF COVER(MTM)

main33162-25010iRK110197903-198609

9011908062

main90119-08062

9011908235

main90119-08235

9011910072

main90119-10072

9011910133

main90119-10133

9161140812

main91611-40812

9161141030

main91611-41030

9161160830

main91611-60830

9161161032

main91611-61032

9161161040

main91611-61040

9411041000

main94110-41000

27 parts on this diagram · 2 diagrams in section
