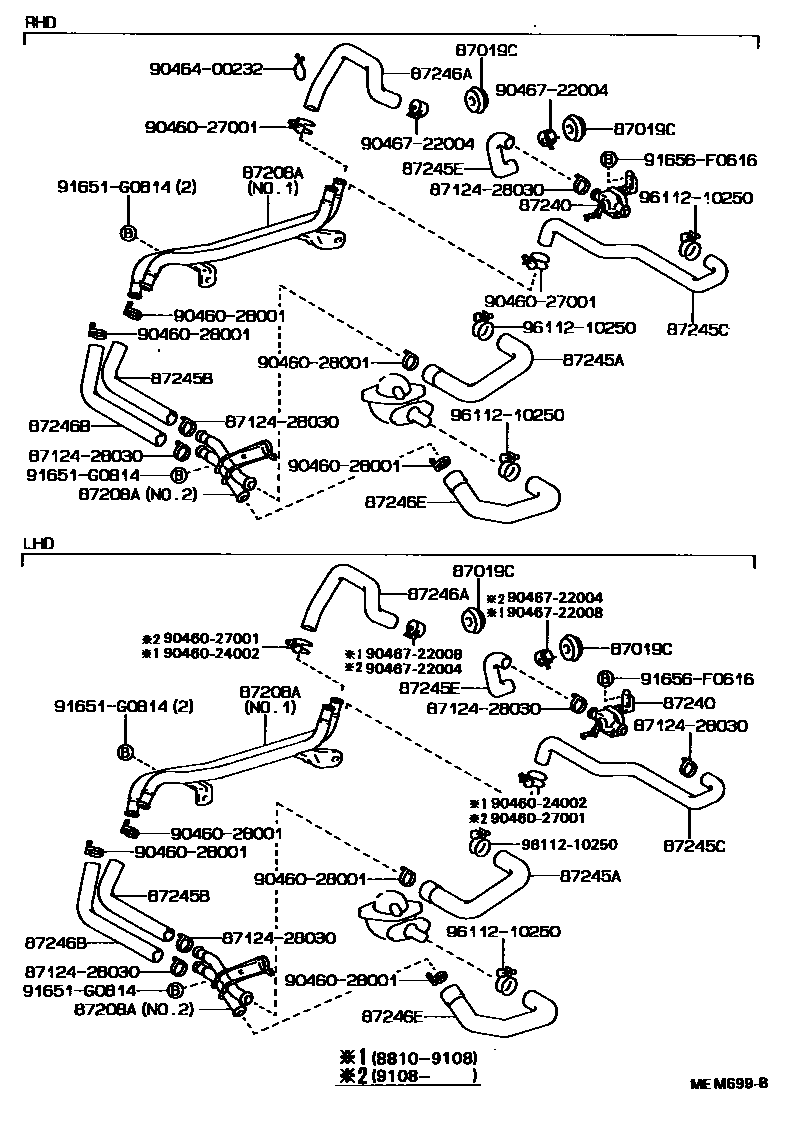

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

87019CGROMMET, HEATER HOSE

main90480-36005iLN85,YN85..VWP198901-199702

87208APIPE SUB-ASSY, HEATER WATER, A

main87208-89143iLN85..VWP198901-199702

NO.1

main87208-89144iLN85..VWP198901-199702

NO.2

87240VALVE ASSY, HEATER WATER

main87240-89124iYN85..VWP..LHD198901-199410

main87240-89125iLN85..VWP..LHD198901-199702

main87240-89126iLN85,YN85..VWP..RHD198907-199702

87245AHOSE, HEATER WATER, INLET A

main87245-89226iYN85..VWP..LHD198901-199410

main87245-89228iYN85..VWP..RHD198907-199410

main87245-89279iLN85..VWP198901-199702

87245BHOSE, HEATER WATER, INLET B

main87245-89281iLN85..VWP198901-199702

87245CHOSE, HEATER WATER ,INLET C

main87245-89240iLN85..VWP..RHD199210-199702

main87245-89243iLN85..VWP..LHD198901-199702

87245EHOSE, HEATER WATER, INLET E

main87245-89231iYN85..VWP..LHD198901-199410

main87245-89232iLN85..VWP..LHD198901-199702

main87245-89233iLN85,YN85..VWP..RHD198907-199702

87246AHOSE, HEATER WATER, OUTLET A

main87245-89217iYN85..VWP..RHD198907-199410

main87245-89227iYN85..VWP..LHD198901-199410

main87245-89241iLN85..VWP..RHD199210-199702

main87245-89242iLN85..VWP..LHD198901-199702

87246BHOSE, HEATER WATER, OUTLET B

main87245-89282iLN85..VWP198901-199702

87246EHOSE, HEATER WATER, OUTLET E

main87245-89280iLN85..VWP198901-199702

8712428030CLAMP, HEATER

main87124-28030

9046024002

main90460-24002

9046027001

main90460-27001

9046028001

main90460-28001

9046400232

main90464-00232

9046722004

main90467-22004

9046722008

main90467-22008

91651G0814

main91651-G0814

91656F0616

main91656-F0616

9611210250

main96112-10250

20 parts on this diagram · 2 diagrams in section
