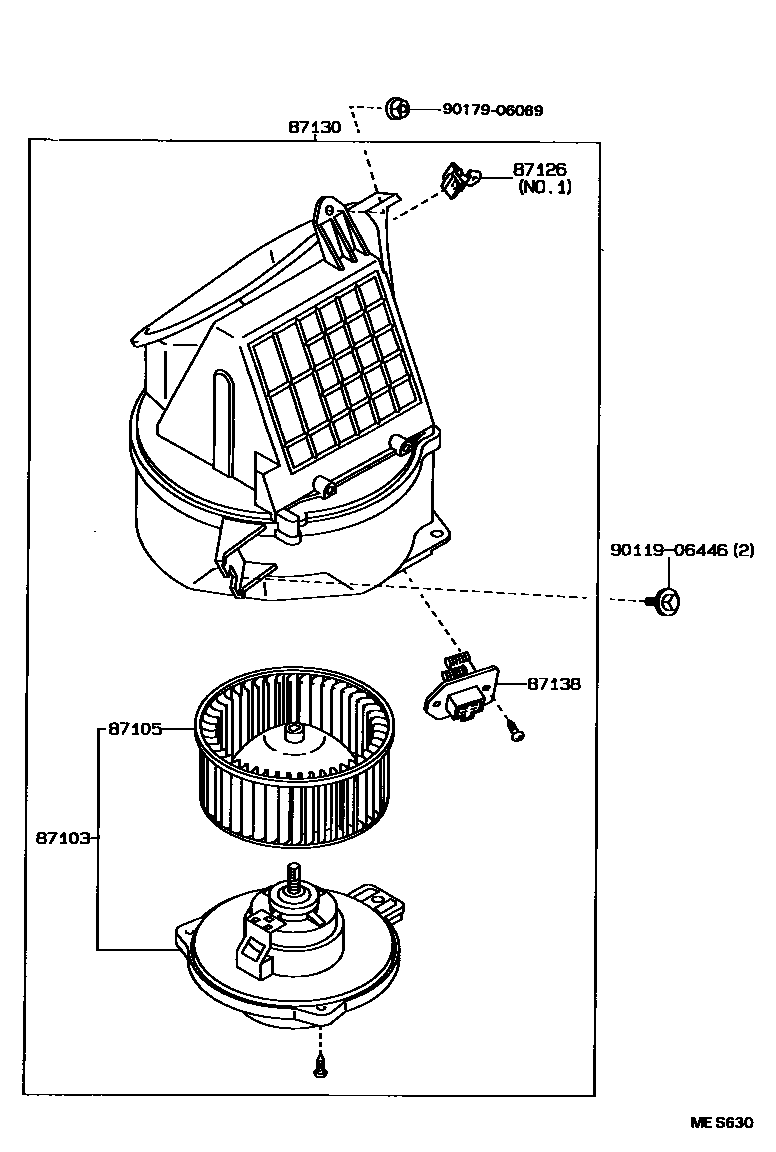

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1HEATER BLOWER 0002 1HEATER RADIATOR & AIR DUCTS

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-17010iLN85,YN85..VWP..RHD199101-199702

sub87103-42010

main87103-17020iLN85,YN85..VWP..LHD199101-199702

sub87103-42020

main87103-89101iLN85,YN85..VWP..LHD198901-199101

sub87103-17020

main87103-89102iYN85..VWP..RHD198907-199101

sub87103-17010

87105FAN SUB-ASSY, HEATER BLOWER

main87105-32010iYN85..VWP..RHD198907-199101

87126CLAMP, HEATER CONTROL

main87126-12050iLN85,YN85..VWP198901-199702

NO.1

main87126-89101iLN85,YN85..VWP198901-199702

NO.2

87130BLOWER ASSY, HEATER, FRONT

main87130-35010iLN85,YN85..VWP..RHD199110-199702

main87130-35020iLN85,YN85..VWP..LHD199110-199702

main87130-89114iYN85..VWP..RHD198907-199110

main87130-89115iLN85,YN85..VWP..LHD198901-199110

87138RESISTOR, HEATER BLOWER

main87138-35020iLN85,YN85..VWP..RHD199110-199702

main87138-35030iLN85,YN85..VWP..LHD199110-199702

main87138-89105iLN85,YN85..VWP..LHD198901-199110

main87138-89106iYN85..VWP..RHD198907-199110

9011906446

main90119-06446

9017906069

main90179-06069

7 parts on this diagram · 2 diagrams in section
